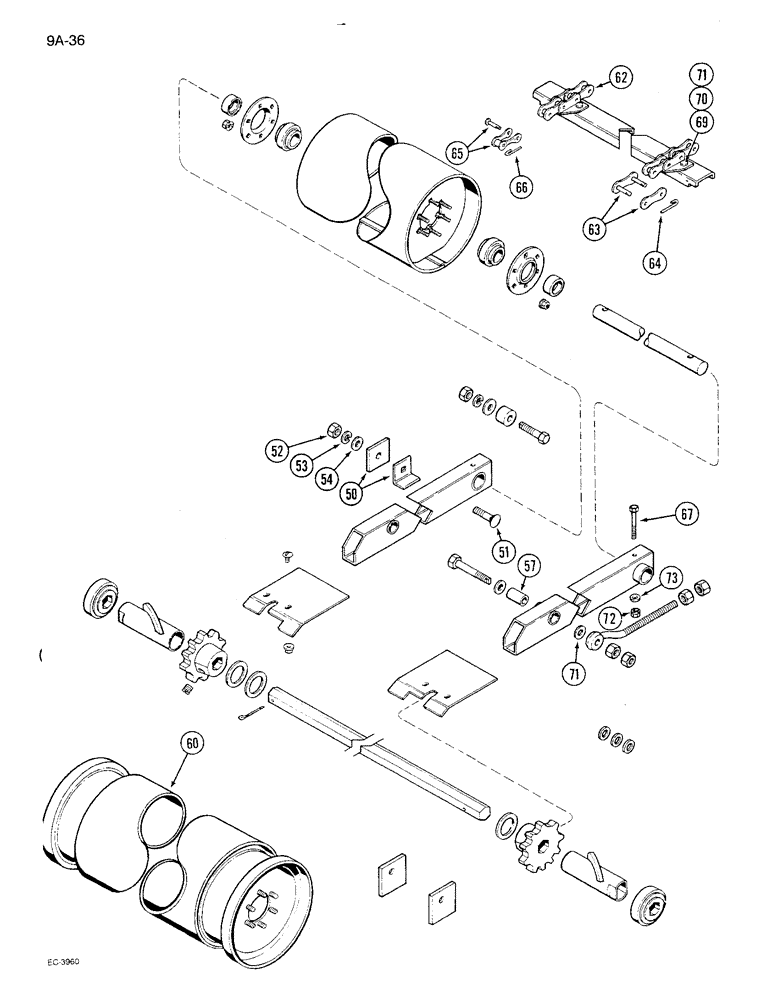

Запчасти Case IH 1680 (9A-36) - FEEDER CONVEYOR (CONTD) (13) - FEEDER

50

1345418C1

ANGLE

- stop, upper (With or Without stone retarder)

2шт.

51

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT - round head square neck, 5/8 NC x 2-1/4 inch

2шт.

52

425-1010

NUT,5/8"-11, G5

2шт.

53

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

54

22810R1

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

- flat, 21/32 square center x 1-1/4 x 3/64 inch

2шт.

57

187217C1

SPACER,7/8" Tube x 1 13/16"

- pivot, 7/8 x 1-13/16 inch

2шт.

60

1957440C1

DRUM

- conveyor (With stone retarder)

1шт.

62

1324281C1

LINK,A557, Links x 41.4mm = mm

LINK ATTACHMENT - conveyor (For A557 chain)

1шт.

63

1324294C1

LINK,40.893mm Pitch

LINK ASSEMBLY - conveyor (Grain and corn), Includes: Ref. 64

1шт.

64

1329837C2

PIN,2.63mm OD

- roller S type

2шт.

65

1324835C1

OFFSET LINK

LINK ASSEMBLY - conveyor (60 inch feeder), Includes: Ref. 66

1шт.

66

1329837C2

PIN,2.63mm OD

- roller S type, chain

1шт.

67

326-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 8

2шт.

69

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

70

1306680C1

FLANGE NUT

NUT - hex flange collarlok

1шт.

71

495-81182

WASHER,21/32" x 1 1/4" x .060"

- flat, 21/32 x 1-1/4 x 3/64 inch

1шт.

72

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

2шт.

73

314148R1

SPACER,10.7mm ID x 17.14mm OD x 11.9mm L

Pivot arm 3/8" X-Strng Pipe x .469"

2шт.
