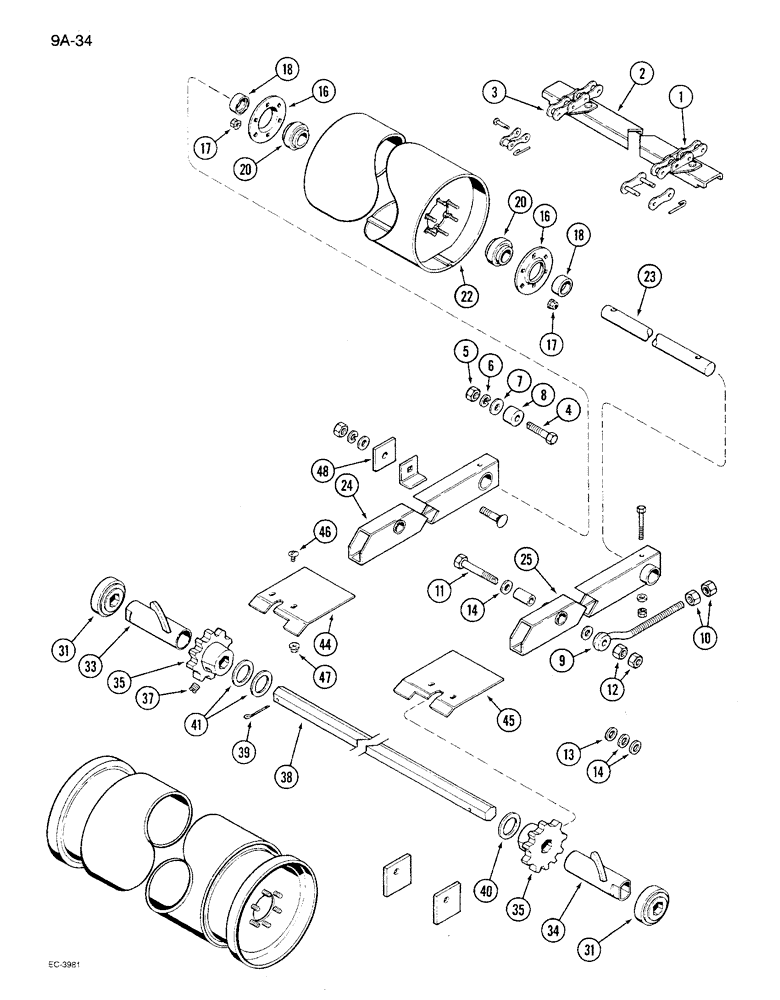

Запчасти Case IH 1680 (9A-34) - FEEDER CONVEYOR (13) - FEEDER

1

1324273C2

CHAIN (AG)

CONVEYOR ASSEMBLY - feeder (For 60 inch feeder) (Used for rice) with slats

1шт.

1

1324271C92

CHAIN (CE)

CONVEYOR ASSEMBLY - feeder (For 54-1/2 inch feeder) (Used with corn and grain) with slats

1шт.

1

1957592C2

CONVEYOR

ASSEMBLY - feeder (For 54-1/2 inch feeder) (Used with corn and grain) with notched bars

1шт.

2

1313420C2

CONNECTING STRIP

SLAT ASSEMBLY - conveyor (For 54-1/2 inch feeder) 2 chain (Used with grain and corn)

1шт.

2

1300288C1

CONNECTING STRIP

SLAT ASSEMBLY - conveyor (60 inch feeder) (Used with rice)

1шт.

2

118269A1

SLAT

Bolt Hole Spacing 57 MM

1шт.

3

1324277C91

CHAIN (AG),A557, 69 Links x 41.4mm = 2856.6mm

CHAIN ASSEMBLY - conveyor, corn and grain

2шт.

4

189709C1

BOLT,Hex, 1/2" - 13 x 3"

- clamp, chain

2шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

7

495-81162

WASHER,17/32" x 1 1/2" x .179"

- flat, 17/32 x 1-1/2 x 5/32 inch

2шт.

8

197211C1

SPACER

- stop, drum

2шт.

9

176508C1

BOLT,5/8" - 11 x 228.60mm

- tightening

2шт.

10

425-1010

NUT,5/8"-11, G5

4шт.

11

187218C2

BOLT

BOLT - hex, 5/8 NC x 4-1/2 inch

2шт.

12

129-107

NUT,5/8"-11, G5

4шт.

13

21782R1

WASHER

- flat, 21/32 x 1-1/4 x 3/64 inch

1шт.

14

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

2шт.

16

1330461C1

FLANGED BEARING

- bearing, drum

4шт.

17

1306680C1

FLANGE NUT

NUT - hex flange collarlok, 3/8 inch NC

12шт.

18

557995R11

COLLAR

ASSEMBLY - locking, bearing

2шт.

20

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

- drum, conveyor

2шт.

22

1957438C1

DRUM

- conveyor (Without stone retarder)

1шт.

23

187208C2

ROD

SHAFT - drum, feeder

1шт.

24

1338291C2

ARM

- drum, left (With stone retarder, grain and corn)

1шт.

24

1319875C4

ARM

- drum, left (Without stone retarder, rice)

1шт.

25

1338292C2

ARM

- drum, right (With stone retarder, grain and corn)

1шт.

25

1319876C4

ARM

- drum, right (Without stone retarder, rice)

1шт.

31

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

BEARING ASSEMBLY - shaft

2шт.

33

178780C2

SPACER

- sprocket, left (Replaces 178780C1)

1шт.

34

178781C2

SPACER

- sprocket, right (Replaces 178781C1)

1шт.

35

197556C1

SPROCKET ASSY.

SPROCKET - chain, conveyor 2 chain

2шт.

37

197643C1

SET SCREW

- set, sprocket

4шт.

38

1321440C2

SHAFT

- conveyor

1шт.

39

432-2040

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

2шт.

40

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

- flat, 1-25/32 x 2-1/2 x 7/64 inch

1шт.

41

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

- flat, 1-25/32 x 2-1/2 x 3/64 inch

1шт.

44

185818C1

STRIPPER ASSY.

STRIPPER - pivot, left

1шт.

45

185819C1

STRIPPER ASSY.

STRIPPER - pivot, right

1шт.

46

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

6шт.

47

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

6шт.

48

187347C1

PLATE

BAR - stop, upper (Without stone retarder)

2шт.

48

187225C1

BAR

- stop, upper (With stone retarder)

2шт.
