(9A-32) - FEEDER PIVOT STRIPPER ATTACHMENT, FOR RICE APPLICATION, IF EQUIPPED

Запчасти Case IH 1680 (9A-32) - FEEDER PIVOT STRIPPER ATTACHMENT, FOR RICE APPLICATION, IF EQUIPPED (13) - FEEDER

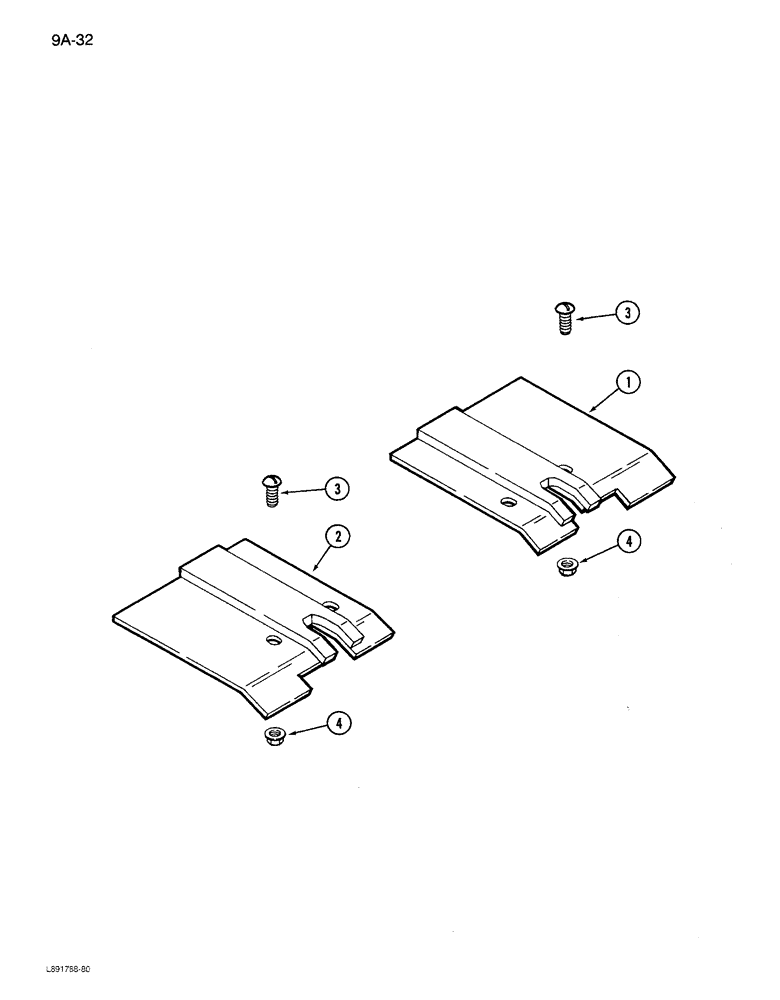

Схема запчастей Case IH 1680 - (9A-32) - FEEDER PIVOT STRIPPER ATTACHMENT, FOR RICE APPLICATION, IF EQUIPPED (13) - FEEDER
3
4
3
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1300464C91

PACKAGE

STRIPPER ATTACHMENT - feeder pivot, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

STRIPPER ASSEMBLY - left

1шт.

2

NSS

NOT SOLD SEPARAT

STRIPPER ASSEMBLY - right

1шт.

3

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss, 3/8 NC x 3/4 inch

4шт.

4

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock

4шт.
