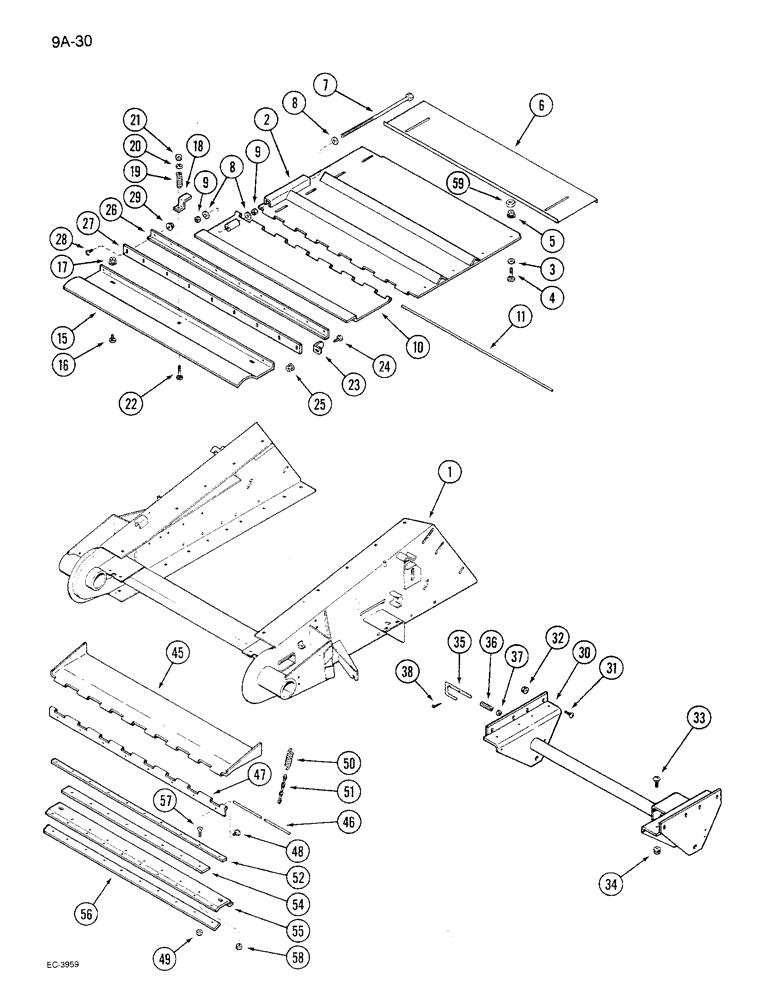

Запчасти Case IH 1680 (9A-30) - FEEDER COVERS AND LIFT BRACKET (13) - FEEDER

1

NSS

NOT SOLD SEPARAT

HOUSING - feeder (See Figure 9A-26)

1шт.

2

1321433C1

PANEL

COVER - top, hinged (54-1/2 inch)

1шт.

2

1321434C1

PANEL

COVER - top, hinged (60 inch)

1шт.

3

195-81030

WASHER

- flat, 17/32 x 1-1/2 x 3/16 inch

10шт.

4

415-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 8

BOLT - round head square neck, 1/2 NC x 1-1/2 inch

10шт.

5

131-946

FLANGE NUT,Flg, 1/2"-13, G8

- hex flange lock, 1/2 inch NC

10шт.

6

1321639C1

PLATE

COVER - front, top

1шт.

7

1321395C1

BOLT,3/4" - 10 x 440mm

- adjusting, level

1шт.

7

1321504C1

SCREW,440mm L, W/ 3/4" - 10 Nut

ROD - adjusting, level, Serial Range: (Optional-1321395C1)

1шт.

8

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

4шт.

9

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

3шт.

10

180556C91

DOOR

- top, feeder (With decal)

1шт.

11

175907C1

ROD

- hinge, door

1шт.

15

197523C3

COVER

- top, feeder

1шт.

16

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

2шт.

17

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange lock, 1/2 inch NC

2шт.

18

184645C1

CLIP

- latch, door

1шт.

19

7422T

SPRING

- latch, door

1шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

1шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

411-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT - round head square neck, 3/8 NC x 2-1/4 inch

1шт.

23

1322144C1

ANGLE

- stop, door

2шт.

24

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

25

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

26

197527C2

ANGLE

- support, seal

1шт.

27

634248R1

SEAL

SEAL - feeder, top

1шт.

28

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

9шт.

29

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

9шт.

30

1541618C1

SUPPORT ASSY.

BRACKET - support, lift 54-1/2 inch feeder

1шт.

30

1541617C1

SUPPORT ASSY.

BRACKET - support, lift 60 inch feeder

1шт.

31

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

8шт.

32

1319701C1

FLANGE NUT,1/2" - 13, Gr 8

- hex flange lock, 1/2 inch NC

8шт.

33

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 x 1 inch

8шт.

34

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

8шт.

35

197849C1

ROD

- lock, cylinder

1шт.

36

M296

SPRING

- rod, lock

1шт.

37

27309R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

38

432-88

COTTER PIN,1/8" x 1/2"

PIN, SPLIT (COTTER), 1/8" x 1/2"

2шт.

45

193612C2

DOOR

- feeder, bottom

1шт.

46

175931C1

ROD

- hinge, door

1шт.

47

193611C2

HINGE

- feed plate

1шт.

48

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

8шт.

49

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

8шт.

50

635503R1

SPRING,148.8mm Free Length

- latch, lower door

2шт.

51

167570C1

CHAIN,203.2mm L

- latch, lower door

2шт.

52

197526C1

SEALING STRIP

- seal, door

1шт.

54

1319964C1

STRIP

BAR - spacing, support

1шт.

55

1319960C1

SUPPORT

- bottom, feeder rear

1шт.

56

1319962C1

SEAL

- rear, feeder

1шт.

57

443-11012

SCREW,Cross Flat Hd, #10-24 x 3/4"

- flat head slotted, No. 10 x 3/4 inch

8шт.

58

196922C1

LOCK NUT

- hex lock, No. 10

8шт.

59

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex 1/2 inch jam

8шт.
