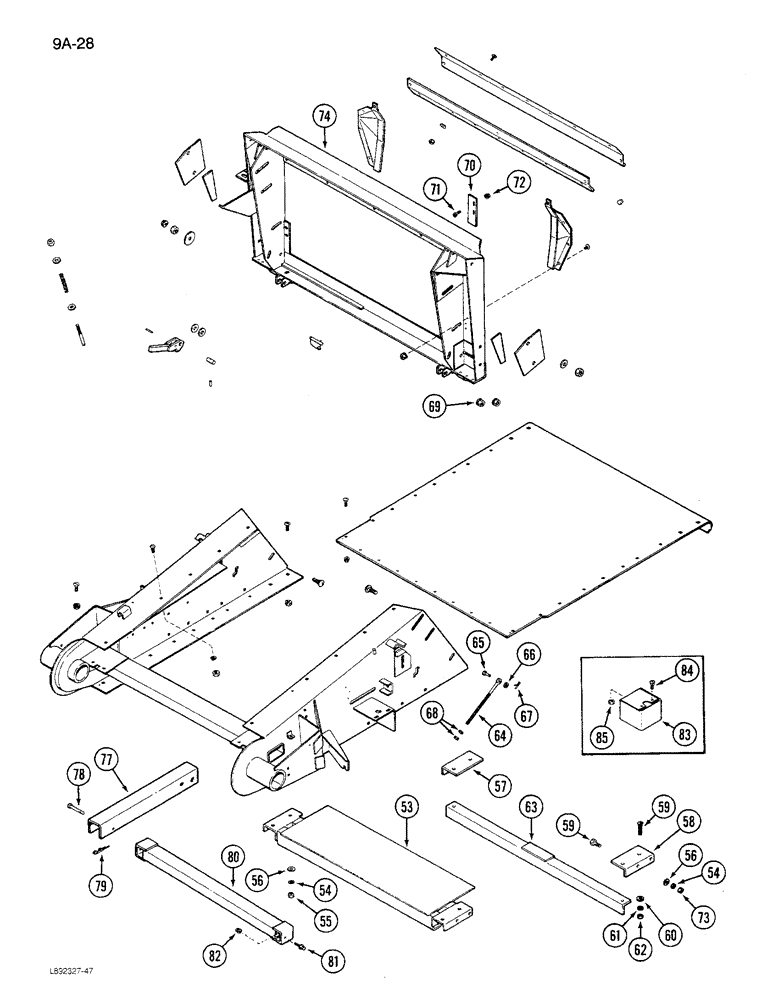

Запчасти Case IH 1680 (9A-28) - FEEDER HOUSING AND ADAPTER (CONTD) (13) - FEEDER

53

1345332C1

SUPPORT

- reinforcement (With rock trap) (Replaces 187209C2)

1шт.

54

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

55

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

56

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

57

175913C1

ANGLE

- adapter, left (Without rock trap)

1шт.

58

175914C1

ANGLE

- adapter, right (Without rock trap)

1шт.

59

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

60

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

4шт.

61

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

62

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

63

1319745C1

SUPPORT ASSY.

STIFFENER - support (Without rock trap)

1шт.

64

1321735C2

BOLT,1/2" - 13 x 310mm, Gr 8

EYEBOLT - adjusting

2шт.

65

26204R1

HEADED PIN,1/2" x 2 1/4"

PIN - head, 1/2 x 2-1/2 inch

2шт.

66

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

67

432-1216

COTTER PIN,3/16" x 1"

2шт.

68

25526R1

NUT,1/2"-13, G8

- hex, 1/2 inch NC, Grade 8

4шт.

69

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

70

181646C1

SUPPORT

FILLER - face wear (For rice)

2шт.

71

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

4шт.

72

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

73

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

74

1321954C4

SHIELD

ADAPTER - feeder (Replaces 1321954C3)

1шт.

77

197554C3

CHANNEL

- lock, lift cylinder

1шт.

78

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

1шт.

79

586591R1

COTTER PIN

PIN - cotter, 1/8 inch hair type

1шт.

80

187213C1

SUPPORT

- rear bottom (With rock trap)

1шт.

81

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

82

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

NUT - hex flange lock, 1/2 inch NC

2шт.

83

1327992C2

GUARD

SHIELD - sensor, feeder

1шт.

84

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

85

403276R1

NUT

- speed

2шт.
