Запчасти Case IH 1680 (9A-26) - FEEDER HOUSING AND ADAPTER (13) - FEEDER

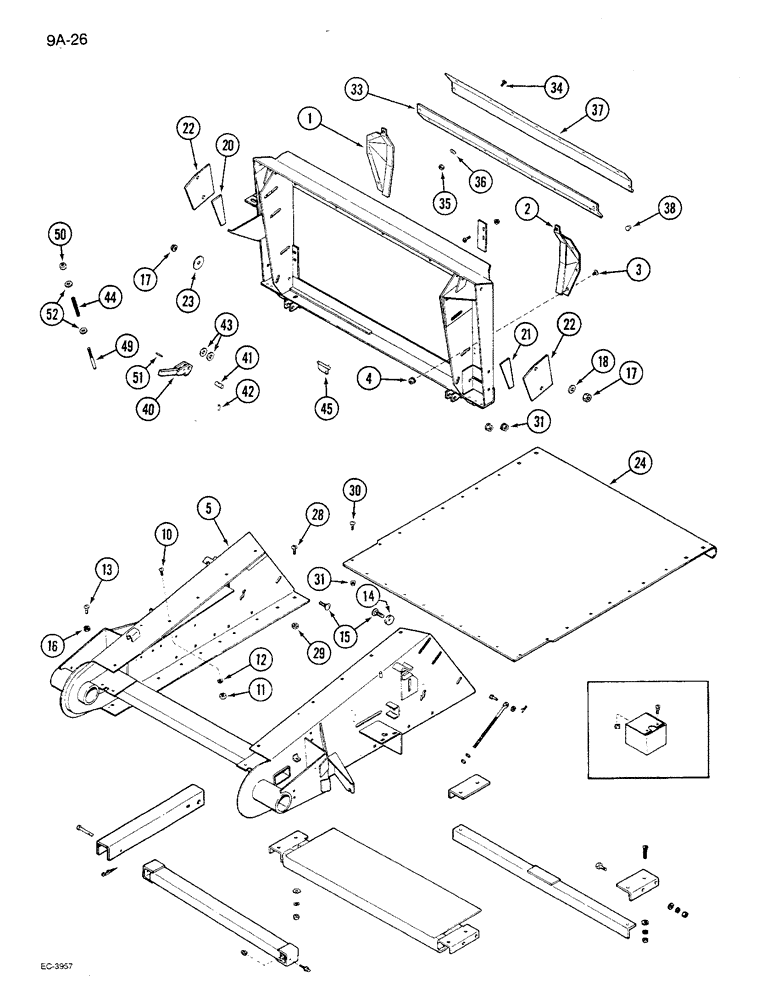

Схема запчастей Case IH 1680 - (9A-26) - FEEDER HOUSING AND ADAPTER (13) - FEEDER
3
34
51
14
1
23
45
12
43
2
52
36
49
5
13
16
33
21
17
37
38
31
17
44
4
20
18
15
40
29
28
31
30
50
42
10
22
24
22
41
35
11

Артикул

Название

Примечание

Количество

1

184853C1

DEFLECTOR

- front, left

1шт.

2

184854C1

DEFLECTOR

- front, right

1шт.

3

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

8шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

8шт.

5

1321459C92

HOUSING ASSY.

HOUSING - feeder (54-1/2 inch feeder) (With decal)

1шт.

5

1321460C92

HOUSING ASSY.

HOUSING - feeder (60 inch feeder) (With decal)

1шт.

10

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

3шт.

14

498-81007

SQ HOLE WASHER,17/32" x 1 1/2" x .120", Sq Hole

- square hole flat, 17/32 x 1-1/2 x 7/64 inch

6шт.

15

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - round head square neck, 5/8 NC x 1-3/4 inch

6шт.

16

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

3шт.

17

20033R1

LOCK NUT

NUT - hex lock, 5/8 inch NC

6шт.

18

25711R1

WASHER

- flat, 21/32 x 1-5/16 x 5/32 inch

4шт.

20

1327752C1

FOAM INSULATION

- side, feeder, left

1шт.

21

1327753C1

FOAM INSULATION

- side, feeder, right

1шт.

22

1327737C2

PLATE

COVER - side, feeder

2шт.

23

534939R1

WASHER

- flat, 21/32 x 2-1/2 x 7/64 inch

2шт.

24

1324572C1

PANEL

PLATE - bottom, feeder (54-1/2 inch)

1шт.

24

1324574C1

PANEL

PLATE - bottom, feeder (60 inch)

1шт.

24

1345455C1

PANEL

PLATE - bottom, feeder (54-1/2 inch Perforated)

1шт.

28

28661R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

4шт.

29

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, 1/2 inch NC

4шт.

30

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

8шт.

31

1319840C1

FLANGE NUT,Flg, 3/8"-16, G8

- hex flange, 3/8 inch NC

8шт.

33

1319473C1

COVER

- top, feeder

1шт.

The thin metal strip that fits between Refs #33 & 37 is 109254A1.

1шт.

34

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

12шт.

35

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

12шт.

36

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

12шт.

37

1319475C1

COVER

- adapter, feeder

1шт.

The thin metal strip that fits between Refs #33 & 37 is 109254A1.

1шт.

38

1321640C1

GROMMET

- cover, adapter

2шт.

40

179024C1

HINGE

HANDLE - lock, latch

2шт.

41

177141C1

PIN,15.88mm OD x 41mm L

- pivot, handle

2шт.

42

17132R1

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

43

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

4шт.

44

367833R1

SPRING

- rod, latch

2шт.

45

1338021C1

PIN,7.94mm OD

- lock, latch

2шт.

49

177138C1

ROD

- latch

2шт.

50

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

2шт.

51

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

2шт.

52

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

4шт.

Выбрано товаров: 44
