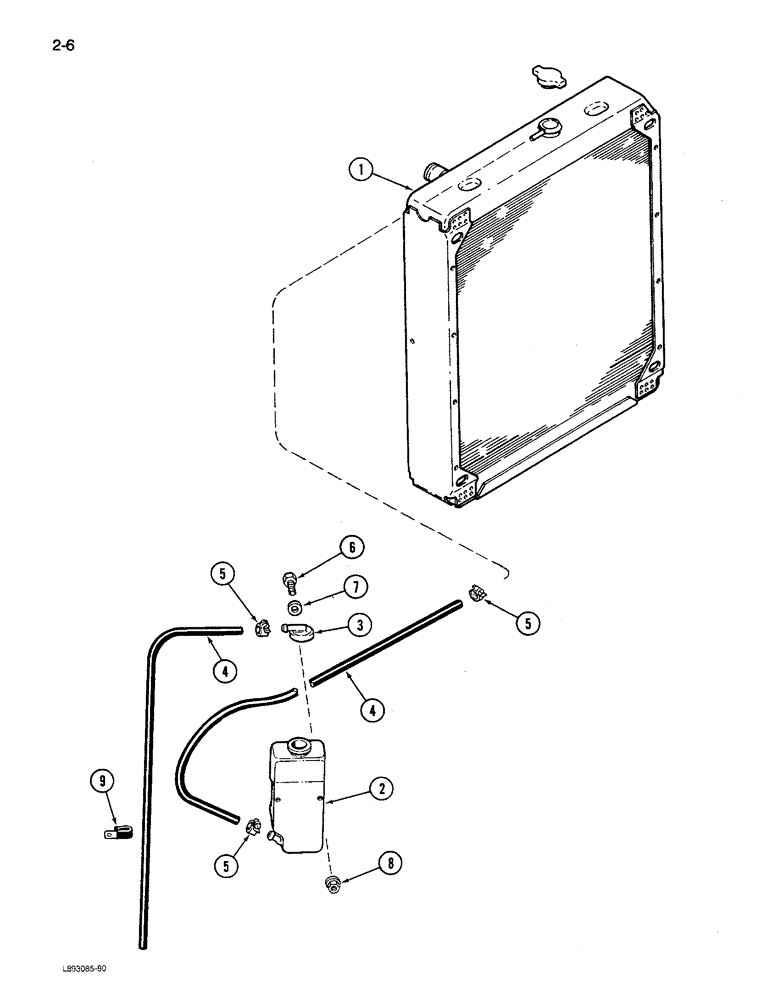

Запчасти Case IH 1680 (2-006) - COOLANT RECOVERY SYSTEM (01) - ENGINE

1

REF

INSTRUCTION

RADIATOR ASSEMBLY - cooling system (See Figure 2-2)

1шт.

2

437703C2

TANK

CONTAINER - coolant recovery reservoir

1шт.

3

437702C1

CAP

- reservoir tank

1шт.

4

1347455C1

LARGE HOSE,8.30 mm ID x 1175.00 mm, SAE J30

HEATER HOSE - Reservoir to radiator overflow 8.30 mm ID x 1175.00 mm, SAE J30

2шт.

5

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adj. (includes screw) #4, 0.25/0.62 Type F Worm

3шт.

6

187797C1

BOLT,Hex Serr Flg, 1/4" - 20 x 1"

- hex flange, 1/4 NC x 1 inch

4шт.

7

495-81286

WASHER,.281" x 1 1/8" x .060"

- flat, 9/32 x 1-1/8 x 1/16 inch

4шт.

8

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

4шт.

9

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - retaining

1шт.
