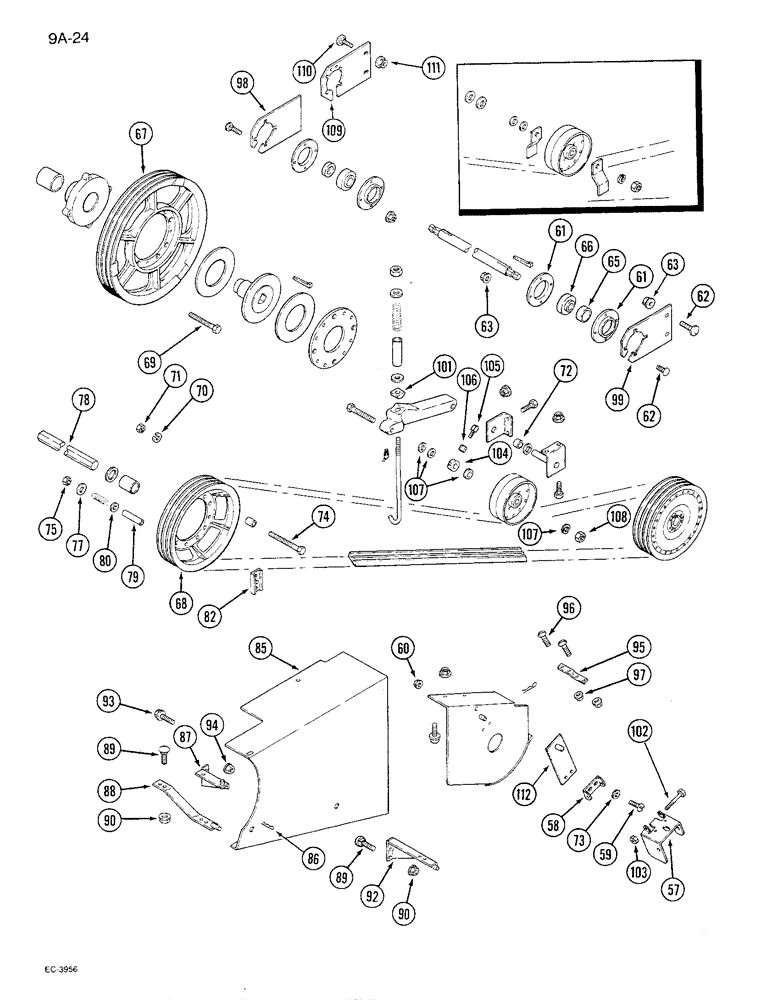

Запчасти Case IH 1680 (9A-24) - FEEDER JACKSHAFT DRIVE (CONTD) (13) - FEEDER

57

1345360C1

GUARD

SHIELD - end, jackshaft right

1шт.

57

1345357C1

GUARD

SHIELD - end, jackshaft left

1шт.

58

1345199C1

SUPPORT

HINGE - shield

1шт.

59

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

4шт.

60

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

61

619333R1

FLANGED BEARING

- bearing, right

2шт.

62

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

1шт.

63

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

1шт.

65

664598R11

COLLAR

ASSEMBLY - lock, bearing

1шт.

65

1977006C1

COLLAR

ASSEMBLY - lock, bearing, Serial Range: (Optional-664598R11)

1шт.

66

664597R91

BALL BEARING,1.5005" ID x 90 mm OD x 1.625"

- jackshaft, right

1шт.

67

REF

INSTRUCTION

PULLEY - driven (See Figure 9A-20)

1шт.

68

1305288C1

PULLEY

- drive, feeder, 16-11/16 inch OD

1шт.

69

326-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

4шт.

70

492-11038

LOCK WASHER,3/8"

4шт.

71

329-106

NUT,3/8"-16, G8

4шт.

72

M74461

SPACER,26.6mm ID x 33.4mm OD x 19mm L

Support pin 1" Pipe x 3/4"

1шт.

73

151670C1

SHIM

- pin spacer

1шт.

74

1315319C1

BOLT,Hex, 3/8" - 16 x 6", Gr 8

- hex, 3/8 x 6 inch, Grade 8

8шт.

75

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

8шт.

77

495-81143

WASHER,13/32" x 1 1/2" x .120"

16шт.

78

REF

INSTRUCTION

SHAFT - feeder (See Figure 9A-26)

1шт.

79

1305370C3

SPACER

- spring, clutch

8шт.

80

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

8шт.

82

1315316C1

SUPPORT

- spring, slip clutch

2шт.

85

1321883C1

GUARD

SHIELD - drive, jackshaft, 60 inch feeder (Rice)

1шт.

85

1321866C1

GUARD

SHIELD - drive, jackshaft, 54-1/2 inch feeder (Grain)

1шт.

86

480523R1

HAIR PIN COTTER

4шт.

87

1327780C1

SUPPORT

- shield, upper rear

1шт.

88

1321851C1

SUPPORT

- shield, lower rear

1шт.

89

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

2шт.

90

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

92

1321878C1

SUPPORT

- shield, lower front

1шт.

93

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

94

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

95

1321880C1

SUPPORT

- shield, front

1шт.

96

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

97

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

98

1321628C2

SUPPORT

- left, jackshaft bearing

1шт.

99

1321629C2

SUPPORT

- right, jackshaft bearing

1шт.

101

194652C1

PIVOT

BAR - pivot

1шт.

102

413-472

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

- hex, 1/4 NC x 4-1/2 inch

1шт.

103

232-4134

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC, Grade 8

1шт.

104

1345410C1

BUSHING,16.7mm ID x 35mm OD x 15mm L

- pulley, Serial Range: -JJC0115607

1шт.

105

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

SCREW - set, square head, 5/16 NC x 1 inch, cup point

2шт.

106

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

107

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, 41/64 x 1-1/4 x 1/8 inch

4шт.

108

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

109

1957434C1

SUPPORT

- left jackshaft bearing

1шт.

110

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck 1/2 NC x 1 inch

2шт.

111

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock 1/2 NC

2шт.

112

1957636C1

HOLDER

BRACKET - shield retainer

1шт.
