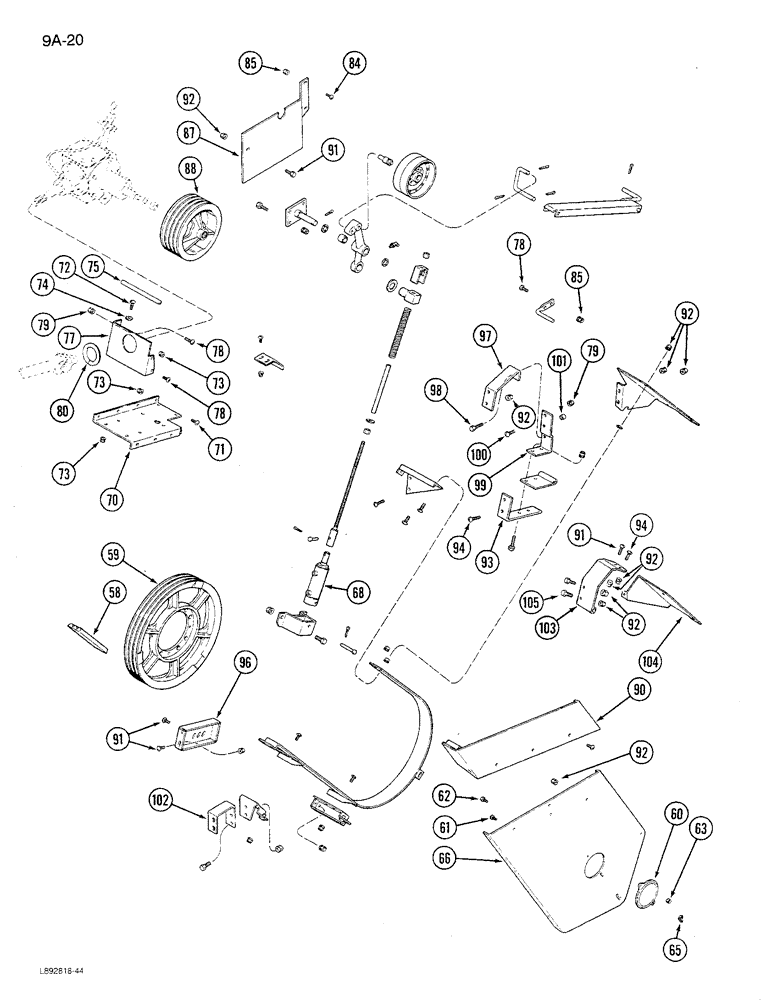

Запчасти Case IH 1680 (9A-20) - FEEDER DRIVE (CONTD) (13) - FEEDER

58

194528C1

BELT,0.879" W x 143.37" L, 3 Ribs

V-BELT , Feeder drive, Over center 0.879" W x 143.37" L, 3 Ribs

1шт.

58

1315074C1

V-BELT,22.23 mm W x 4029.32 mm L

Drive, Feeder, with Rock Trap 22.23 mm W x 4029.32 mm L

1шт.

59

1305297C1

PULLEY

- driven, feeder, 22-9/16 inch OD

1шт.

60

188315C1

DOOR

- access, belt

1шт.

61

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

1шт.

62

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

63

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

1шт.

65

126177

WING NUT

NUT - wing, door

1шт.

66

183025C92

GUARD

SHIELD - belt (With decal)

1шт.

68

REF

INSTRUCTION

CYLINDER ASSEMBLY - feeder (See Figure 8-138)

1шт.

70

191329C1

SUPPORT

- gear case

1шт.

71

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

5шт.

72

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

2шт.

73

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

7шт.

74

178373R1

WASHER

- flat, 13/32 x 1 x 3/64 inch

4шт.

75

191497C1

SEALING STRIP

- support, 10 inch

1шт.

77

191399C1

SUPPORT

- rear

1шт.

78

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

5шт.

78

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

- Phillips head, 3/8 NC x 1 inch

2шт.

79

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

7шт.

80

191496C1

SEALING STRIP

- support

1шт.

84

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 1/2 inch (If equipped)

2шт.

85

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC (If equipped)

2шт.

87

186490C1

SUPPORT

- shield, upper (If equipped)

1шт.

88

193999C1

PULLEY

- drive, 12 inch OD

1шт.

90

1315085C1

GUARD

SHIELD - extension, belt (With rock trap)

1шт.

91

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

1шт.

92

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange, 3/8 inch NC

1шт.

93

1315078C3

SUPPORT

- extension, pivot (With rock trap), Start Serial: JJC0115787

1шт.

94

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

- slotted truss head, 3/8 NC x 1-1/4 inch

1шт.

96

1315083C1

SUPPORT

- extension, lower (With rock trap)

1шт.

97

1315231C1

SUPPORT

- stiffener, upper (With rock trap), Start Serial: JJC0115787

1шт.

98

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

99

1315082C1

SUPPORT

- shield, upper (With rock trap), Start Serial: JJC0115787

1шт.

100

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

2шт.

101

314148R1

SPACER,10.7mm ID x 17.14mm OD x 11.9mm L

1шт.

102

1315084C1

CHANNEL

- belt shield rear extension

1шт.

103

1989333C2

SUPPORT

- belt guide, upper (With rock trap), Serial Range: -JJC0115787

1шт.

104

1989329C1

COVER

- belt, upper (With rock trap), Serial Range: -JJC0115787

1шт.

105

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex 3/8 x 1-1/4

1шт.
