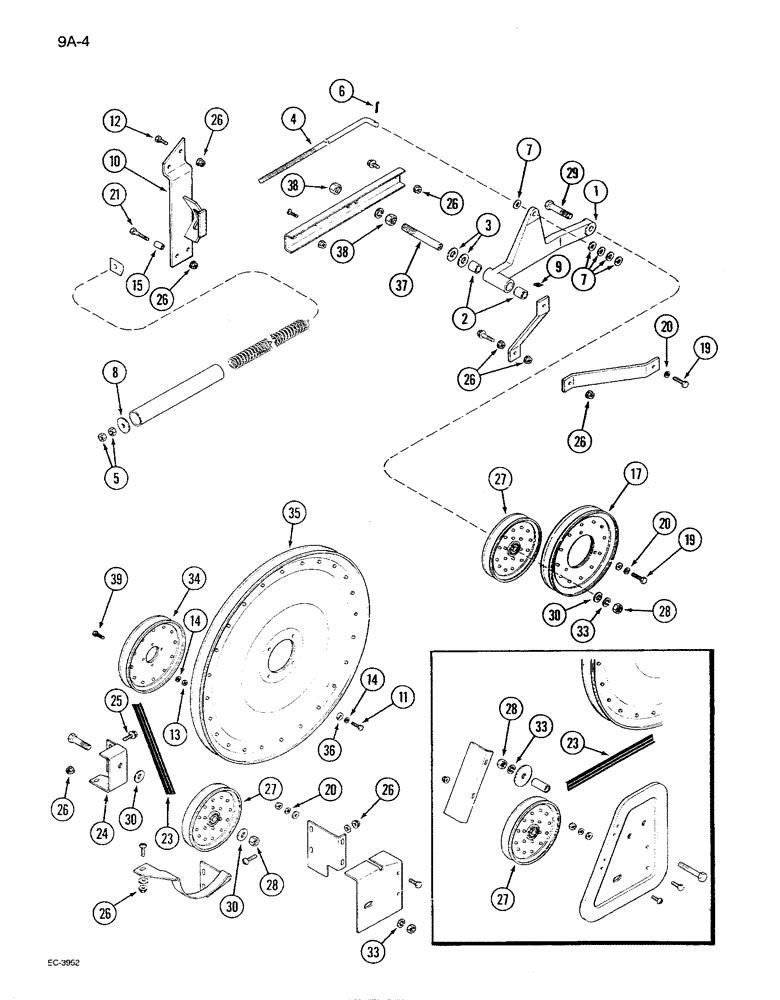

Запчасти Case IH 1680 (9A-04) - RIGHT SIDE BELT DRIVE (13) - FEEDER

1

193447C91

ARM

LEVER ASSEMBLY - elevator jackshaft idler, Includes: Ref. 2

1шт.

2

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

- fan jackshaft drive

2шт.

3

495-11081

WASHER,3/4", SAE

1шт.

4

1327931C2

ROD

- elevator drive idler lever

1шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

6

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

1шт.

7

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

8

495-81162

WASHER,17/32" x 1 1/2" x .179"

- flat, 17/32 x 1-1/2 x 5/32 inch

1шт.

9

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, straight, 1/4-28 inch

1шт.

10

1315306C2

SUPPORT

- spring pivot

1шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

8шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

15

386749C1

SPACER

- support

2шт.

17

REF

INSTRUCTION

PULLEY ASSEMBLY - cleaning unit driven, 13 inch OD (See Figure 9A-08)

1шт.

17

193948C1

PULLEY,39.61mm W x 254mm OD

- cleaning unit, 9-3/4 inch OD

1шт.

116056

RIVET,FH, 1/4" x 1/2"

- flat head solid, 1/4 x 9/16 inch (Not shown)

16шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

5шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 2-1/2 inch

3шт.

20

492-11038

LOCK WASHER,3/8"

8шт.

21

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

23

181055C1

BELT,0.879" W x 200.99" L

V-BELT , Elevator drive cleaning unit, Over center (For combines with straw chopper) 0.879" W x 200.99" L

1шт.

23

186509C2

BELT,0.879" W x 255.99" L

V-BELT , Elevator drive, Over center (For combines with discharge beater) 0.879" W x 255.99" L

1шт.

24

188253C2

SUPPORT

- elevator drive fixed idler

1шт.

25

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

4шт.

26

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

16шт.

27

673214R91

PULLEY

- elevator drive and fixed idler, 7-5/16 inch OD

2шт.

28

425-1010

NUT,5/8"-11, G5

3шт.

29

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

1шт.

30

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 5/64 inch

2шт.

33

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

34

195161C1

PULLEY

- beater drive, 8-3/8 inch OD

1шт.

35

193682C1

PULLEY

ASSEMBLY - shaker shaft driven, 25 inch OD, Start Serial: JJC0039613

1шт.

35

1979876C1

PULLEY

- shaker shaft driven, 24 inch OD, Serial Range: -JJC0039613

1шт.

36

27309R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

4шт.

37

1327538C1

STUD

- jackshaft pivot arm

1шт.

38

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.
