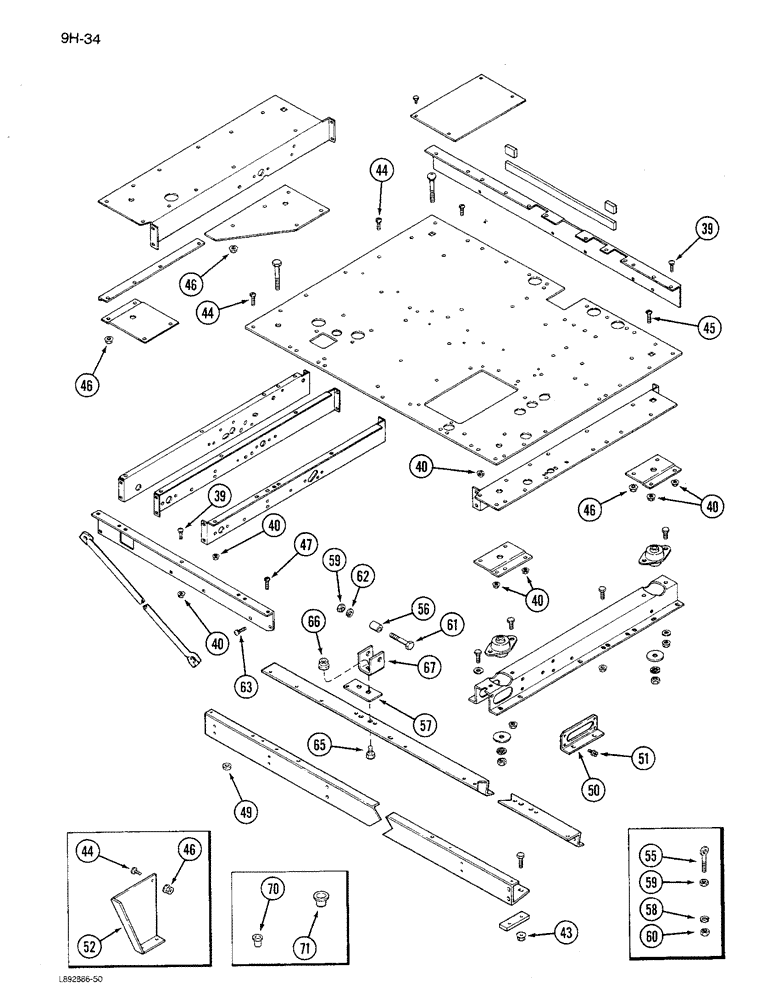

Запчасти Case IH 1680 (9H-34) - OPERATORS PLATFORM (CONTD) (12) - CHASSIS

39

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, , Continued Short NK, 5/16"-18 x 1/2", G5, Full Thd

20шт.

40

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

32шт.

41

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch (Not shown)

4шт.

42

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch (Not shown)

4шт.

43

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex flange lock, 1/2 inch NC

4шт.

44

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

11шт.

45

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

2шт.

46

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

31шт.

47

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

1шт.

48

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch (Not shown)

2шт.

49

HA4457

SPACER

- 1/2 x 5/8 inch pipe

2шт.

50

1301442C1

SUPPORT

- platform side, reinforcement

4шт.

51

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW - flange head, 3/8 NC x 3/4 inch

16шт.

51

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- 1/2 x 1-1/4 inch

4шт.

52

196993C2

SUPPORT

- platform front angle

1шт.

55

165648C2

BOLT,3/4" - 10 x 4 1/2"

EYEBOLT - leveling (If equipped)

4шт.

56

1994749C1

SPACER

- pipe

2шт.

57

196592C3

BAR

- leveling

2шт.

58

492-11075

LOCK WASHER,3/4"

3/4"

6шт.

59

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

6шт.

60

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC

4шт.

61

413-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex, 3/4 NC x 4-1/4 inch

2шт.

62

493-41078

LOCK WASHER,Ext Tooth, 3/4"

WASHER - rib lock, 3/4 inch

2шт.

63

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

10шт.

65

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

66

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC

2шт.

67

NSS

NOT SOLD SEPARAT

CHANNEL - deck mount

2шт.

70

1345349C1

PLUG,Cap, .240" OD

- 7/32 inch hole

4шт.

71

1345351C1

PLUG,Cap, .428" OD

- 11/32 inch hole

3шт.
