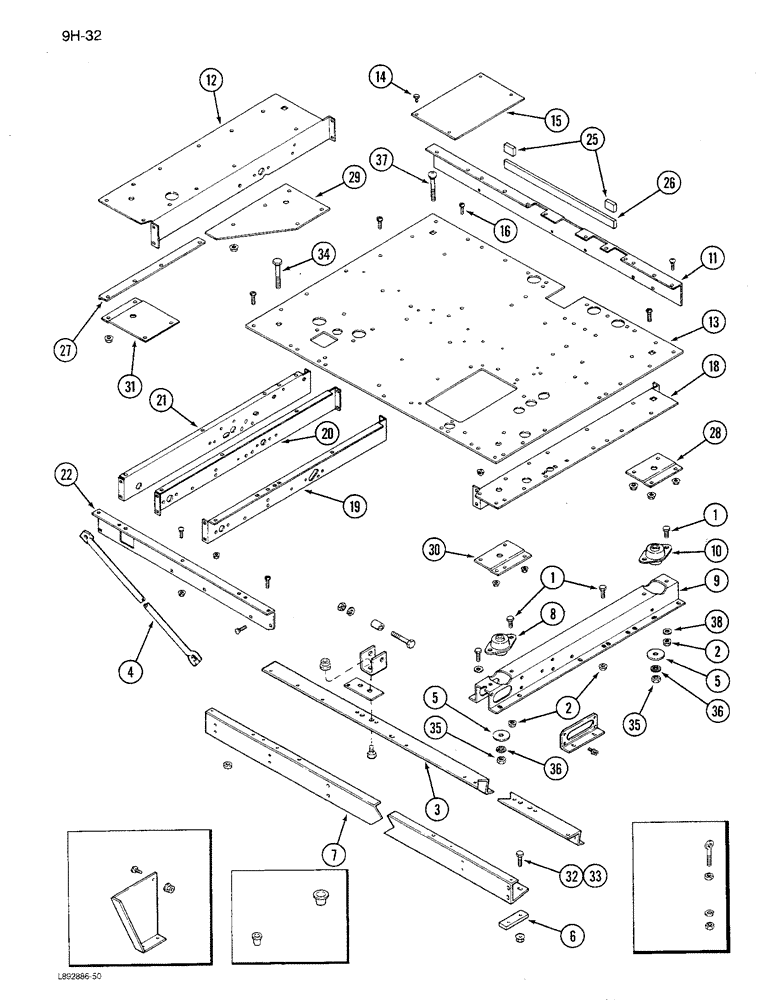

Запчасти Case IH 1680 (9H-32) - OPERATORS PLATFORM (12) - CHASSIS

1

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

32шт.

2

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex flange lock, 1/2 inch NC

32шт.

3

195522C5

ANGLE

SUPPORT - operators platform, front mounting

1шт.

4

187645C2

ROD

- platform extension

1шт.

5

196591C1

WASHER

- isolation mount

4шт.

6

193428C1

BAR

- rear mounting channel, 5/8 inch

2шт.

7

193427C3

SUPPORT

- operators platform, rear mounting

1шт.

8

196950C2

MOUNTING PARTS

INSULATOR - rear vibration

2шт.

9

195507C6

SUPPORT

- operators platform, side

2шт.

10

117722C4

INSULATOR

- front vibration

2шт.

11

1327564C2

SUPPORT

- operators platform, front

1шт.

12

195520C3

SUPPORT

- operators platform, left

1шт.

13

1321937C4

PLATFORM

PLATE - operator platform

1шт.

14

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

4шт.

15

193029C2

PLATE

- brake access rear

1шт.

16

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

11шт.

18

195518C8

SUPPORT

- operators platform, right

1шт.

19

195519C6

SUPPORT

- operators platform, right center

1шт.

20

195521C4

SUPPORT

- operators platform, center

1шт.

21

195557C7

SUPPORT

- operators platform, left center

1шт.

22

195516C4

SUPPORT

- operators platform, rear

1шт.

25

187884C1

SEALING STRIP,50mm L

STRIP - seal, cab sill, 2 inch (Order 187885C1 and cut)

2шт.

26

187885C1

SEALING STRIP

STRIP - seal, cab sill, 26 inch (Order 187885C1 and cut)

1шт.

27

183680C1

ANGLE

- platform stiffener, left

1шт.

28

183668C2

PLATE

- platform, right front

1шт.

29

183669C2

PLATE

- platform, left front

1шт.

30

183678C1

PLATE

- platform, right rear

1шт.

31

183679C1

PLATE

- platform, left rear

1шт.

32

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

33

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

10шт.

34

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- hex, 3/4 NC x 4-3/4 inch

2шт.

35

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

36

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

37

1317014C1

CARRIAGE BOLT,Short Sq Nk, 3/4" - 10 x 5", Type 5

BOLT - round head, square neck, 3/4 NC x 5 inch

2шт.

38

495-81085

WASHER,1.16" ID x 1.62" OD x 0.06" Thk

- flat, 1-5/32 x 1-5/8 x 3/64 inch

4шт.
