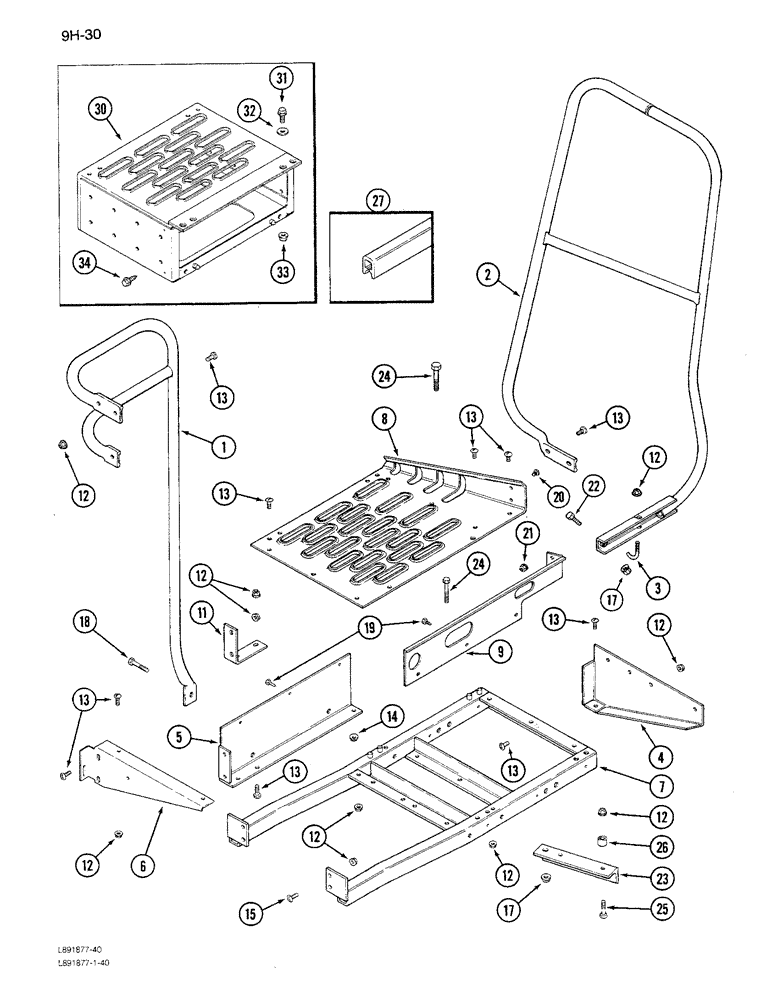

Запчасти Case IH 1680 (9H-30) - OPERATORS PLATFORM EXTENSION (12) - CHASSIS

1

196642C2

RAIL

- platform extension, rear

1шт.

2

198548C1

RAIL

- platform extension, front

1шт.

3

196967C2

BOLT,3/8" - 16 x 2"

- front hand rail hook

1шт.

4

198541C3

SUPPORT ASSY.

SUPPORT - platform extension, front

1шт.

5

198543C3

SUPPORT

- platform extension, left

1шт.

6

1338309C2

SUPPORT

- operators platform extension

1шт.

7

198535C4

SUPPORT

- extension

1шт.

8

198547C3

LARGE PLATE

TREAD - platform extension

1шт.

9

198542C3

SUPPORT

- extension, right

1шт.

11

183761C1

ANGLE

- rear extension

1шт.

12

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

26шт.

13

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

17шт.

14

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

3шт.

15

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

5шт.

16

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch (Not shown)

1шт.

17

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

2шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

19

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

6шт.

20

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

2шт.

21

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

22

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

1шт.

22

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

- hex flange, self-locking, 3/8 NC x 3/4 inch

1шт.

23

1321894C1

BRACKET

ANGLE - operators platform

1шт.

24

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

25

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

26

85490H

SPACER

- 5/8 x 3/4 inch tube

2шт.

27

NSS

NOT SOLD SEPARAT

MOLDING - seal, 27 inch (Order 196707C1 and cut)

1шт.

30

1979515C1

SUPPORT

- platform extension, 14 inch

1шт.

31

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

4шт.

32

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

4шт.

33

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

34

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

SCREW - hex washer head tap, 3/8 NC x 3/4 inch

3шт.
