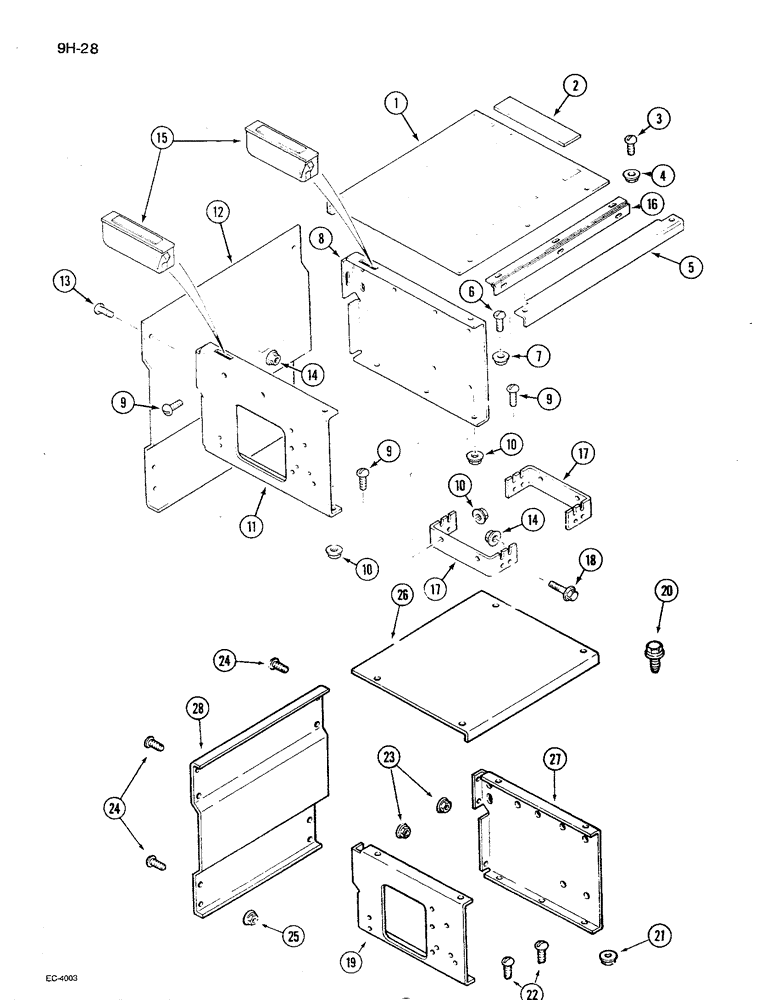

Запчасти Case IH 1680 (9H-28) - VALVE CONTROL BOX, P.I.N JJC0117060 & AFTER (12) - CHASSIS

P.I.N. JJC0117060 AND AFTER

1шт.

1

1989344C2

COVER ASSY

COVER ASSEMBLY - valve box

1шт.

2

D55216

PAD,2" x 9"

STRIP - anti-skid pad

5шт.

3

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss, 1/4 NC x 1/2 inch

6шт.

4

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

5

1989346C1

CHANNEL

- valve box, top

1шт.

6

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

7

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

8

1338305C3

SUPPORT

- valve box, front

1шт.

9

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

7шт.

10

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

7шт.

11

1338306C3

SHEET

SUPPORT - valve box rear

1шт.

12

1338304C2

SHEET ASSY.

SUPPORT - valve box left

1шт.

13

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

4шт.

14

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

15

1989553C1

CATCH

- magnetic

2шт.

16

1989347C1

HINGE

- valve box support

1шт.

17

1989373C3

SUPPORT

- valve stack

2шт.

18

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

, Start Serial: JJC0117060

8шт.

19

193060C6

SUPPORT

- valve box rear, Start Serial: JJC0047701

1шт.

19

1338306C1

SHEET

SUPPORT - valve box, rear (P.I.N. JJC0047253 - P.I.N. JJC0117060)

1шт.

20

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

SCREW - hex washer head tapping, 3/8 NC x 3/4 inch

4шт.

21

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

2шт.

22

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

6шт.

23

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

24

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

6шт.

25

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex flange lock, No. 10-24

2шт.

26

198559C1

COVER

SUPPORT - valve box top

1шт.

27

1301066C2

SUPPORT

- valve box front, Start Serial: JJC0047253

1шт.

27

1338305C1

SHEET

SUPPORT - valve box, front (P.I.N. JJC0047253 - JJC0117060)

1шт.

28

193052C1

SHEET

SUPPORT - valve box left side, Start Serial: JJC0047253

1шт.

28

1338304C1

SHEET

SUPPORT - valve box, left (P.I.N. JJC0047253 - JJC0117060)

1шт.
