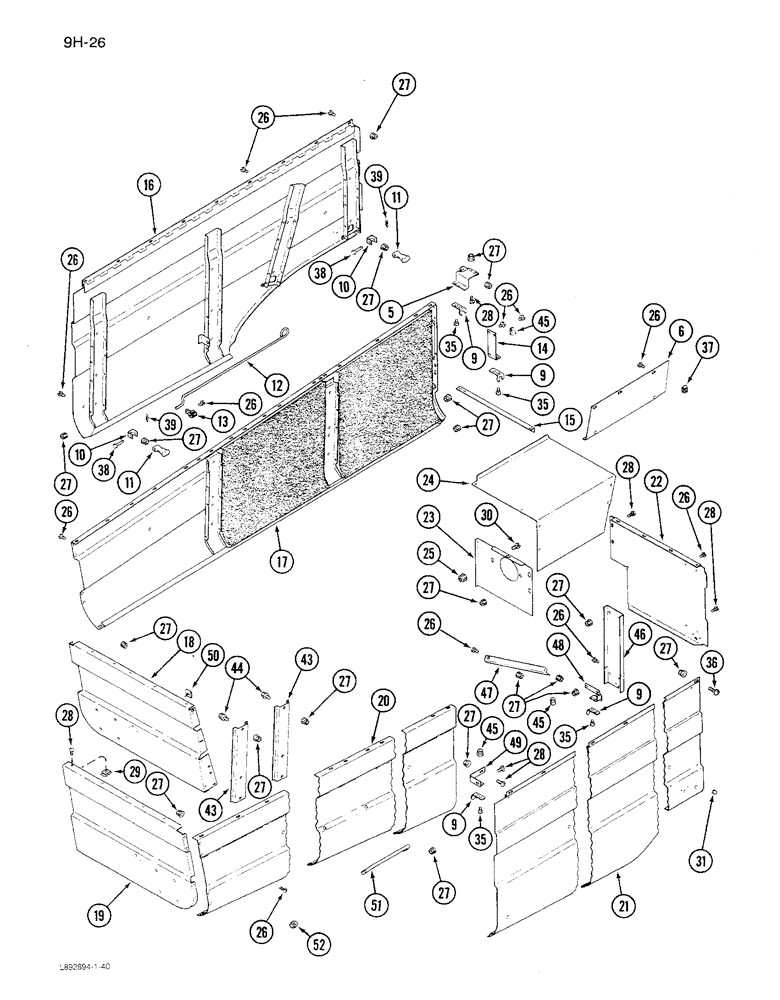

Запчасти Case IH 1680 (9H-26) - SHIELDS, SUPPORTS AND TRIM (12) - CHASSIS

5

182834C2

SUPPORT

- left front latch

1шт.

6

186559C1

COVER

SUPPORT - right front cab bottom

1шт.

9

764071C1

BRACKET

- trim hook

4шт.

10

188103C1

BRACKET

YOKE - hood anchor

4шт.

11

494307C1

LATCH

HOOK - trim hold down

4шт.

12

186570C1

ROD

- tank lower door

2шт.

13

363660R1

CLIP

- trim panel brace

2шт.

14

188185C1

SUPPORT

- trim rear catch

1шт.

15

194641C1

ANGLE

- shield support

1шт.

16

191152C1

SHIELD

SUPPORT - grain tank trim left front

1шт.

17

194624C2

SHIELD

- rear trim left, Start Serial: JJC0047918

1шт.

17

1347133C1

SHEET ASSY.

SHIELD - rear trim left, Serial Range: -JJC0047918

1шт.

18

193811C4

SUPPORT

- tail lamp, left

1шт.

19

193812C4

SUPPORT

- tail lamp, right

1шт.

20

194625C4

GUARD ASSY.

SHIELD - rear trim right

1шт.

21

191153C2

SUPPORT

- grain tank trim right front

1шт.

22

191146C2

SUPPORT

- lower right front

1шт.

23

194491C4

SUPPORT

- gear case front

1шт.

24

191141C1

SUPPORT

- feeder drive upper

1шт.

25

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

8шт.

26

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

63шт.

27

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

100шт.

28

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

33шт.

29

488837C1

SPRING NUT

- speed, 5/16 inch

6шт.

30

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

2шт.

31

147483C1

PLUG

- hole

8шт.

35

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- slotted pan head, No. 10 x 3/4 inch

8шт.

36

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

SCREW - slotted truss head, 5/16 NC x 3/4 inch

9шт.

37

403276R1

NUT

- speed

3шт.

38

22910R1

HEADED PIN

PIN - headed, 1/4 x 1-1/2 inch

4шт.

39

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

43

1319563C1

SUPPORT

- handle

2шт.

44

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- hex flange head, 5/16 NC x 1/2 inch

4шт.

45

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex flange lock, No. 10 NC

8шт.

46

194640C2

CONDUIT

CHANNEL - shield support right front

1шт.

47

194639C1

ANGLE

- right front shield support

1шт.

48

1345118C1

SUPPORT

- front right latch

1шт.

49

188097C1

SUPPORT

- right trim rear latch

1шт.

50

150100C1

SPRING NUT

- speed, U-type

3шт.

51

1251832C2

HANDLE

- assist

1шт.

52

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

2шт.
