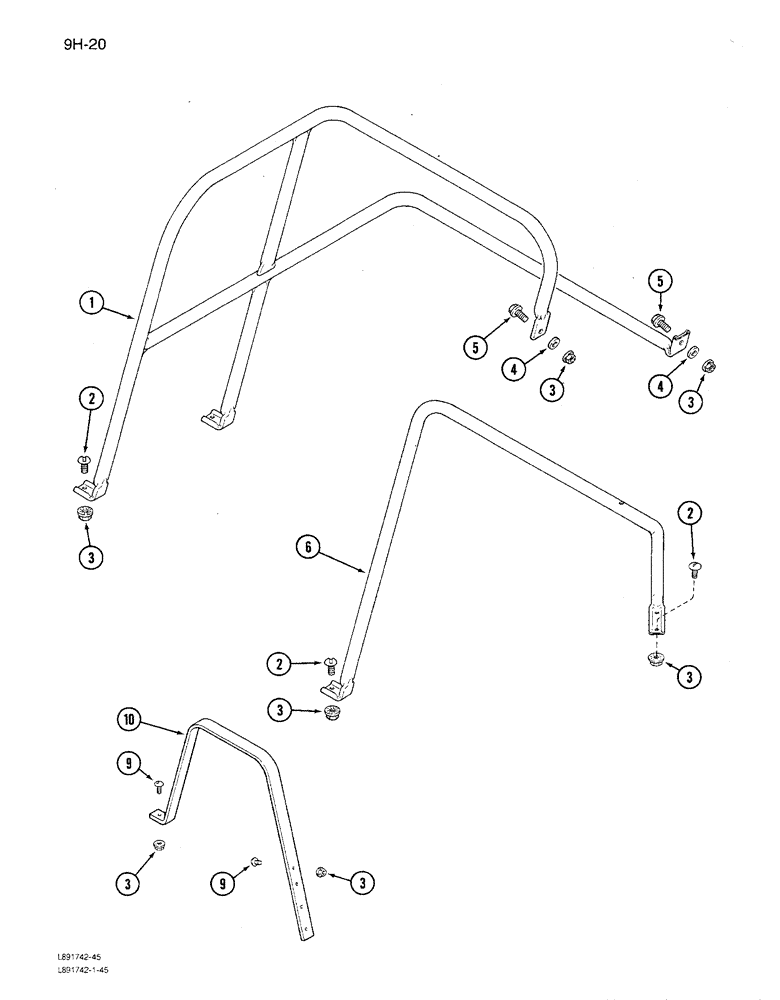

Запчасти Case IH 1680 (9H-20) - SERVICE DECK HAND RAILS (12) - CHASSIS

1

193089C1

RAIL ASSY.

RAIL - service deck, left

1шт.

2

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

SCREW - slotted truss head, 5/16 NC x 1 inch

5шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

10шт.

4

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 3/64 inch

2шт.

5

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

- hex flange lock, 5/16 NC x 1-1/4 inch

2шт.

6

1330470C2

RAIL

- service deck, right

1шт.

9

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head, 5/16 NC x 1 inch

3шт.

10

1338059C1

RAIL ASSY.

RAIL - hand, service deck

1шт.
