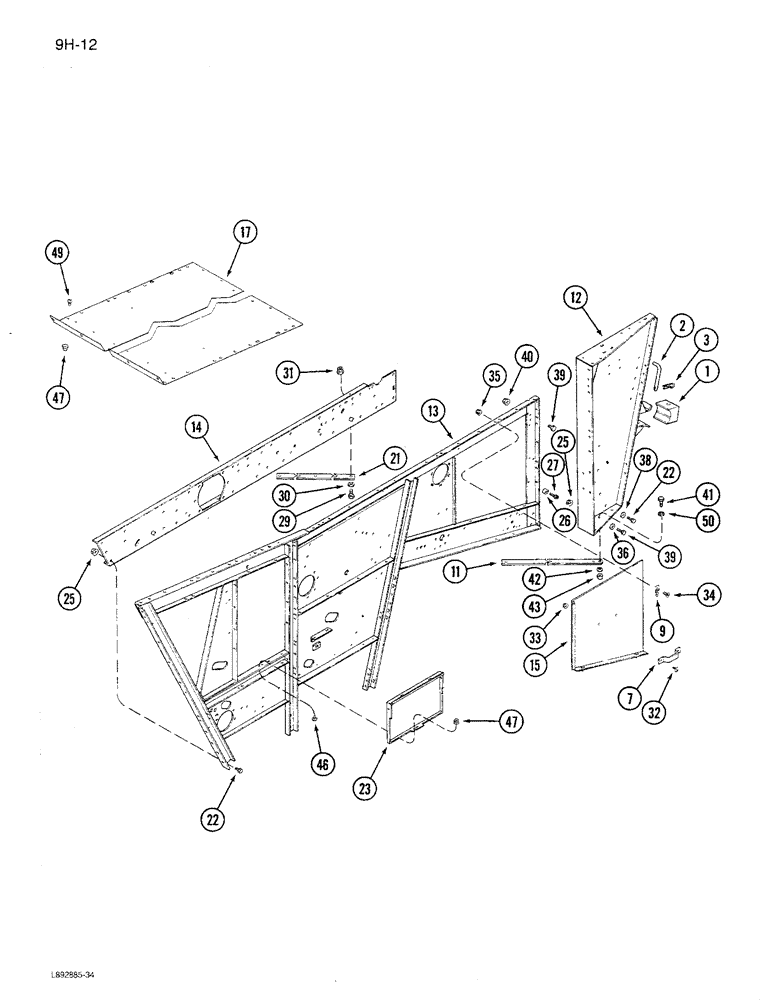

Запчасти Case IH 1680 (9H-12) - RIGHT SIDE SEPARATOR DOORS, SIDE AND SUPPORTS (12) - CHASSIS

1

1989327C1

RETAINER

BLOCK - feeder pivot (Replaces 193834C1)

1шт.

2

192533C2

ROD

- feeder pivot block

1шт.

3

486830R1

COTTER PIN

PIN - quick attachable cotter

1шт.

7

160638C1

HANDLE

- separator door

1шт.

9

167800C1

CLIP

- door retainer

4шт.

11

1308946C1

BAR

- front post diagonal

1шт.

12

193854C3

POST

- separator, right

1шт.

13

1970460C1

SIDE ASSY.

SIDE - separator, right

1шт.

14

1317554C2

SILL

SUPPORT - separator, right side main

1шт.

15

182526C91

DOOR

ASSEMBLY - separator, front right

1шт.

17

1330089C2

PROTECTION PLATE

PLATE - engine deck

1шт.

21

186018C1

STRAP

BAR - separator frame diagonal support

1шт.

22

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, Grade 8

20шт.

23

181085C2

DOOR

- separator side

1шт.

25

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

20шт.

26

495-21044

WASHER,3/8"

SPACER - 1/2 x 1 inch pipe

3шт.

27

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW - hex flange, 3/8 NC x 1 inch

1шт.

29

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, Grade 8

2шт.

30

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

2шт.

31

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange lock, 1/2 inch NC, Grade 8

2шт.

32

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

2шт.

33

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

7шт.

34

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan head Phillips, No. 10 NC x 1/2 inch

4шт.

35

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex flange lock, No. 10-24

4шт.

36

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch

2шт.

38

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, 41/64 x 1-1/4 x 1/8 inch

9шт.

39

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

10шт.

40

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

- hex flange lock, 1/2 inch NC, Grade 8

10шт.

41

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

42

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

43

425-1010

NUT,5/8"-11, G5

2шт.

46

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

5шт.

47

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

49

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

1шт.

50

493-21065

LOCK WASHER,Int Tooth, 5/8"

WASHER - internal lock, 5/8 inch

2шт.
