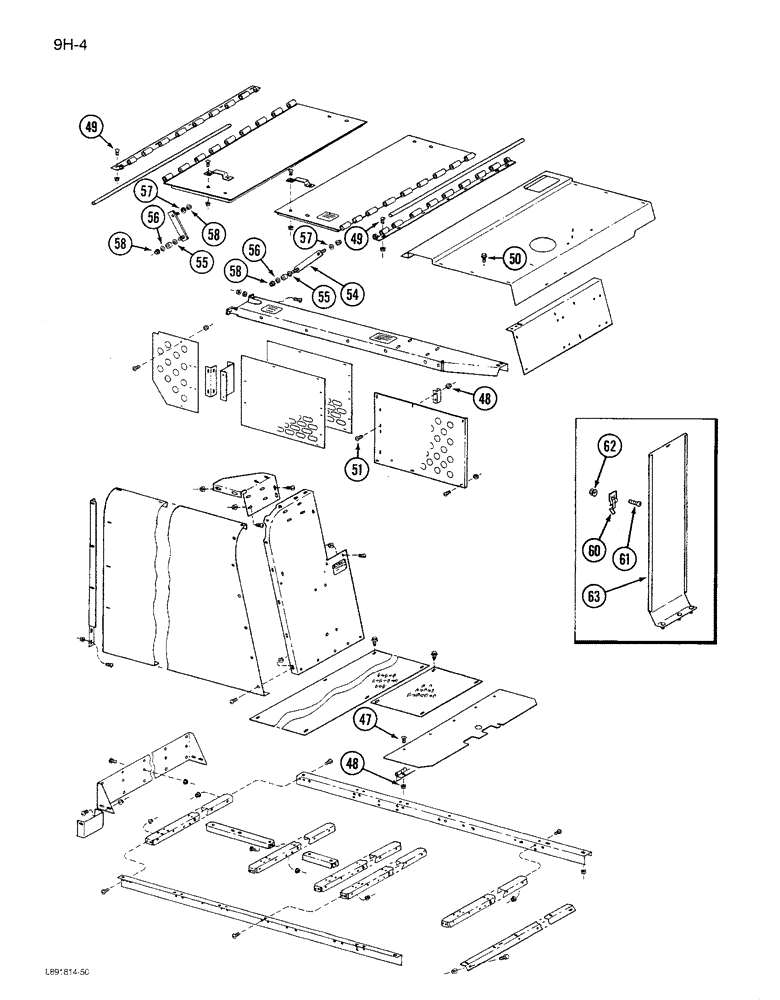

Запчасти Case IH 1680 (9H-04) - ENGINE SHIELD AND SERVICE DECK, PRIOR TO P.I.N. JJC0047031 (CONTD) (12) - CHASSIS

47

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

30шт.

48

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

26шт.

49

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

7шт.

50

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- hex flange lock, 5/16 NC x 1/2 inch

14шт.

50

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

4шт.

50

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 x 3/4 inch

4шт.

51

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss head, 1/4 NC x 3/4 inch

8шт.

54

1319793C1

LINK ASSY.

LINK ASSEMBLY - door hold-up rear

1шт.

55

567532R1

WASHER

- flat, 21/64 x 1/2 x 5/32 inch

2шт.

56

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 3/64 inch

2шт.

57

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

4шт.

58

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - hex lock, 5/16 inch NC

4шт.

60

167800C1

CLIP

LATCH - door

2шт.

61

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan head Phillips, No. 10 NC x 1/2 inch

2шт.

62

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex flange lock, No. 10-24

2шт.

63

1977286C2

SUPPORT

- air shield

1шт.
