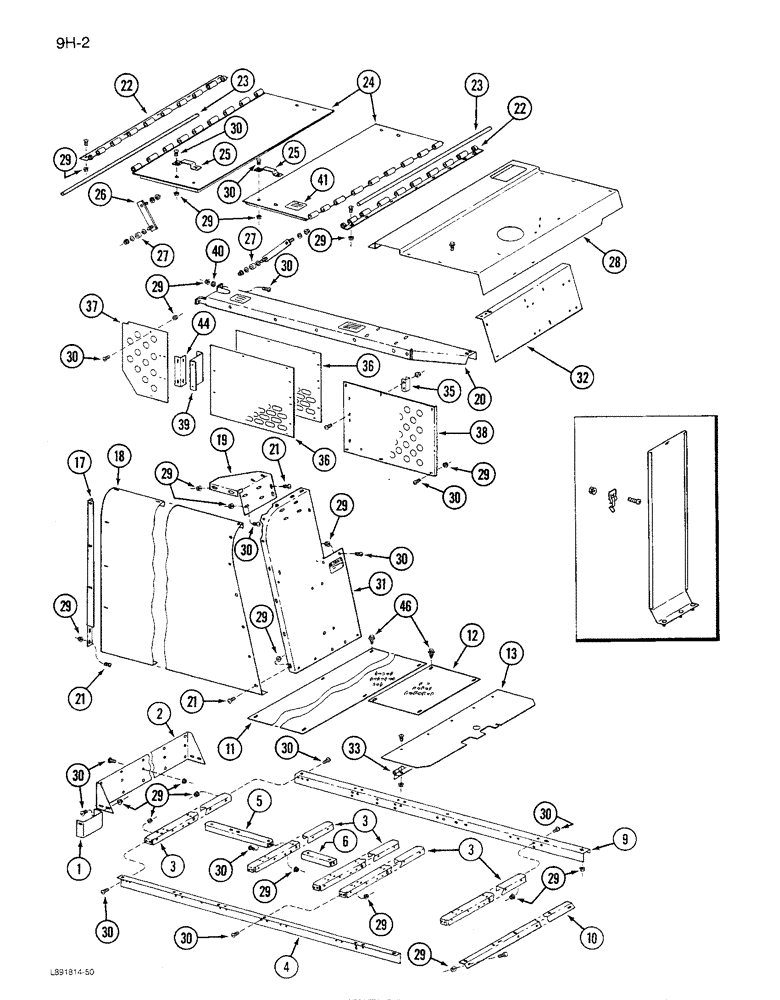

Запчасти Case IH 1680 (9H-02) - ENGINE SHIELD AND SERVICE DECK, PRIOR TO P.I.N. JJC0047031 (12) - CHASSIS

1

186105C1

CHANNEL

- grain tank rear upper left

1шт.

2

193435C1

SUPPORT

- engine service deck

1шт.

3

192959C5

CHANNEL

SUPPORT - deck

5шт.

4

186569C5

ANGLE

- support, deck left

1шт.

5

188275C1

SUPPORT

- deck

2шт.

6

194461C1

SUPPORT

- deck

1шт.

9

192961C6

ANGLE BAR

SUPPORT - right deck

1шт.

10

193146C3

ANGLE

- engine deck rear

1шт.

11

192595C2

PLATE

- engine compartment front

1шт.

12

194455C2

PLATE

- engine compartment

1шт.

13

1977155C1

DOOR

- deck, engine

3шт.

17

186106C1

CHANNEL

ANGLE - shield stiffener, left upper

1шт.

18

1330483C1

SUPPORT

- trim, rear upper left

1шт.

19

1330481C1

SUPPORT

- upper shield, left rear

1шт.

20

1970114C2

SUPPORT

- door and hood

1шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

18шт.

22

194477C2

HINGE

- rotor door cover front

2шт.

Bolts to the Grain Tank (Figure 9E-2)

1шт.

23

194478C1

ROD

- rotor door hinge

2шт.

24

182523C92

DOOR ASSY.

DOOR ASSEMBLY - engine and rotor drive

2шт.

25

160638C1

HANDLE

- rotor door

2шт.

26

1302413C1

PROP

LINK - door hold up front

1шт.

27

568257R1

SPACER,1/2" Tube x 3/8"

- 1/2 x 3/8 inch tube

2шт.

28

1330428C2

SUPPORT

- top cover, rear

1шт.

29

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

107шт.

30

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

77шт.

31

1970113C1

PROTECTION PLATE

SUPPORT - engine, rear left

1шт.

32

1979873C1

SUPPORT

- air cleaner

1шт.

33

186695C1

HINGE

- door separator drive housing

3шт.

35

196438C1

SUPPORT

- clutch oil cooler front

1шт.

36

1319860C1

PLATE

- oil cooler

2шт.

37

196442C2

PLATE

- front clutch oil cooler

1шт.

38

196448C3

SUPPORT

- rear clutch oil cooler

1шт.

39

196446C2

ANGLE

- clutch oil cooler support

1шт.

40

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

- flat, 11/32 x 1-1/4 x 1/16 inch

1шт.

44

1319696C1

BRACKET

ANGLE - cooler shield support

2шт.

46

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

10шт.
