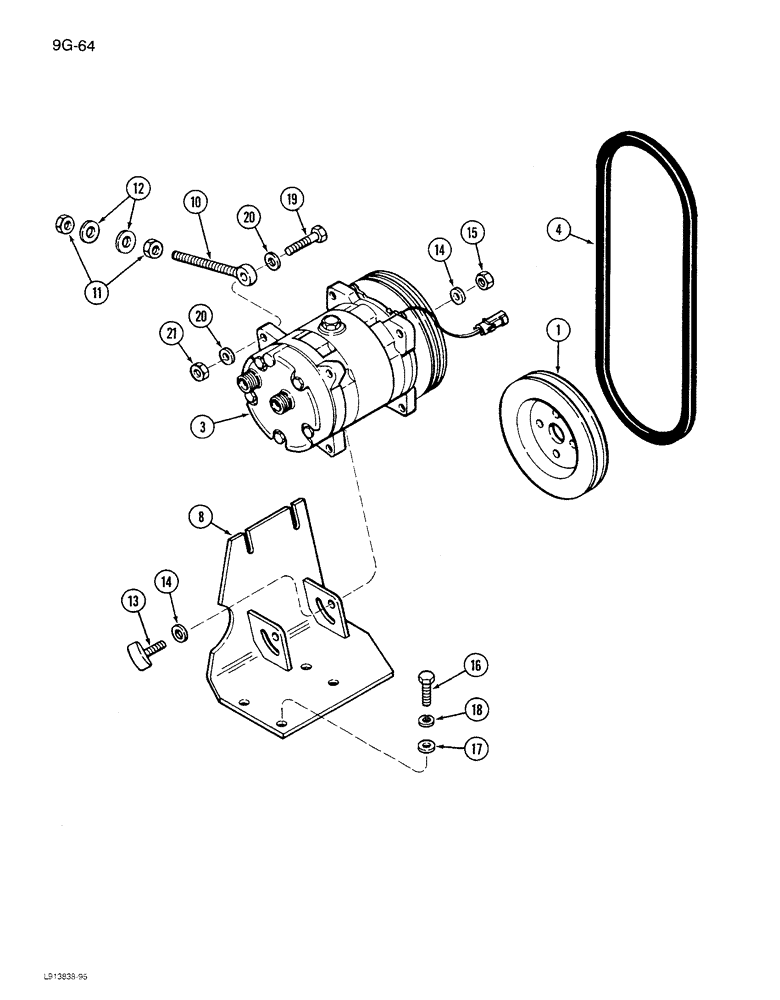

Запчасти Case IH 1680 (9G-64) - COMPRESSOR MOUNTING AND PULLEY (10) - CAB & AIR CONDITIONING

1

84757C1

PULLEY

- compressor drive

1шт.

3

REF

INSTRUCTION

COMPRESSOR - air conditioning (See Figure 9G-66)

1шт.

4

1250587C1

V-BELT,0.50" W

Drive, Compressor 0.50" Long

1шт.

396829R1 44" Belt for use with 6" Compressor Clutch Pulley.

1шт.

8

1979296C1

SUPPORT ASSY.

SUPPORT - compressor mounting

1шт.

10

1979298C1

BOLT (SPREADER),3/8" - 16 x 117mm

BOLT - eye

2шт.

11

425-106

NUT,3/8"-16, Cl 5

4шт.

12

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

4шт.

13

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

- flat raised head special

2шт.

14

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

2шт.

15

231-4116

NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC, Grade 8

2шт.

16

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

4шт.

17

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

- flat, 11 x 21 x 2.5 mm

4шт.

18

892-11010

LOCK WASHER,M10

4шт.

19

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

20

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

2шт.

21

231-4116

NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC, Grade 8

2шт.
