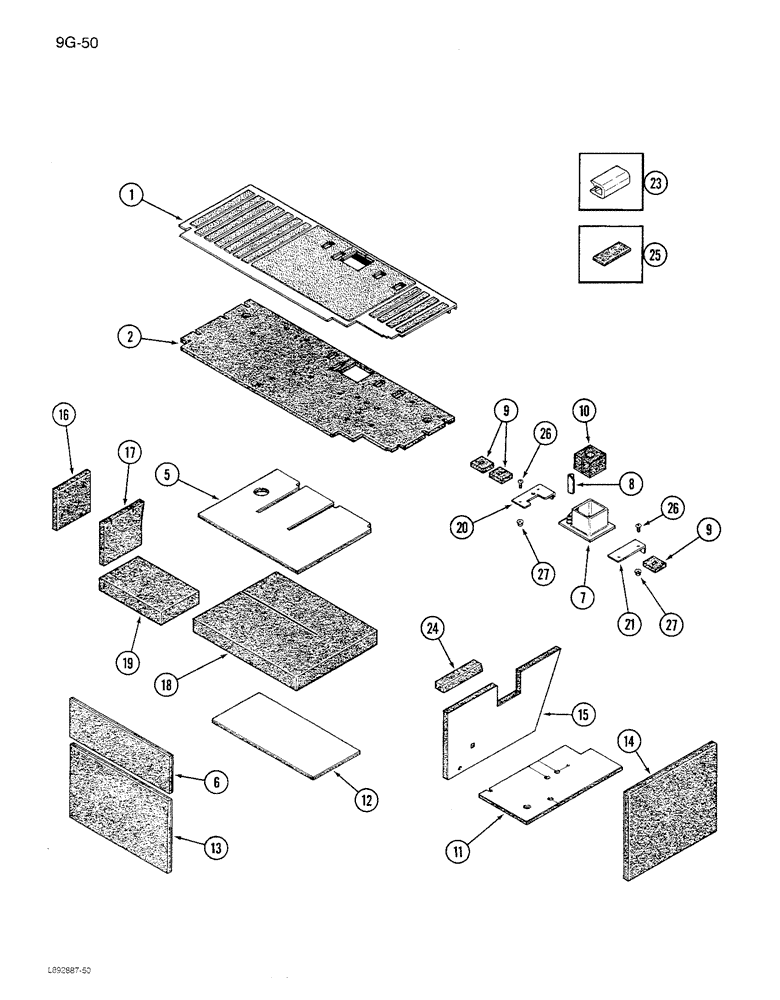

Запчасти Case IH 1680 (9G-50) - CAB INSULATION AND FLOOR MAT (10) - CAB & AIR CONDITIONING
№
Артикул
Название
Примечание
Количество
1
1329711C3
MAT
- floor (Replaces 1329711C2)
1шт.
2
1326885C1
INSULATOR
- floor mat sound
1шт.
5
98123C4
SHEET ASSY.
SHEET - sat paltform (Replaces 98123C3)
1шт.
6
98008C2
INSULATOR
- center rear support
1шт.
7
198075C1
INSULATOR
- steering pedestal
1шт.
8
187581C1
ANGLE
- steering pedestal
1шт.
9
1321935C1
SEAL
- pedal
3шт.
10
1324844C1
SEAL
- steering pedestal
1шт.
11
196587C7
INSULATOR
- floor sound, right cover
1шт.
12
91793C2
INSULATOR
- floor sound, center cover
1шт.
13
91790C2
INSULATOR
- sound, center rear
1шт.
14
1301219C2
SHEET
INSULATOR - right console sound, outer cover
1шт.
15
91797C1
INSULATOR
- right console sound, inner cover
1шт.
16
196598C2
SHEET
INSULATOR - left console sound, outer cover
1шт.
17
1322927C2
INSULATOR
- left panel
1шт.
18
91791C2
INSULATOR
center sound, If equipped, discontinued
1шт.
Per FEC D1481, Remove center sound sheet from beneath operater cab seat. Test showed no increase in sound.
1шт.
19
91792C3
SHEET ASSY.
INSULATOR manual box sound, Replaces 91792C2.
1шт.
20
1327567C1
PLATE
- pedestal boot hold down, left
1шт.
21
1327568C1
PLATE
- pedestal boot hold down, right
1шт.
23
NSS
NOT SOLD SEPARAT
TRIM - rear inside edge to cab, 27 inch (Order 1330108CX and, Serial Range: cut-length)
1шт.
23
NSS
NOT SOLD SEPARAT
TRIM - left inside edge to cab, 14-3/4 inch (Order 1330108CX and, Serial Range: cut-length)
1шт.
23
NSS
NOT SOLD SEPARAT
TRIM - vertical flange under right door, 6 inch (Order 1330108CX and, Serial Range: cut-length)
1шт.
1330108C1
SOFT TRIM
TRIM - edge, bulk 50 foot roll
1шт.
24
1288795CX
SEAL - throttle lever (Replaces 1288795C1)
1шт.
25
1301236C1
SEALING STRIP
STRIP - operators cab to deck, 3 inch
2шт.
26
135270
SERRATED SCREW,5/16" - 18 x 3/4"
- slotted truss head, 5/16 NC x 3/4 inch
6шт.
27
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
- hex flange lock, 5/16 inch NC
6шт.
Выбрано товаров: 28
