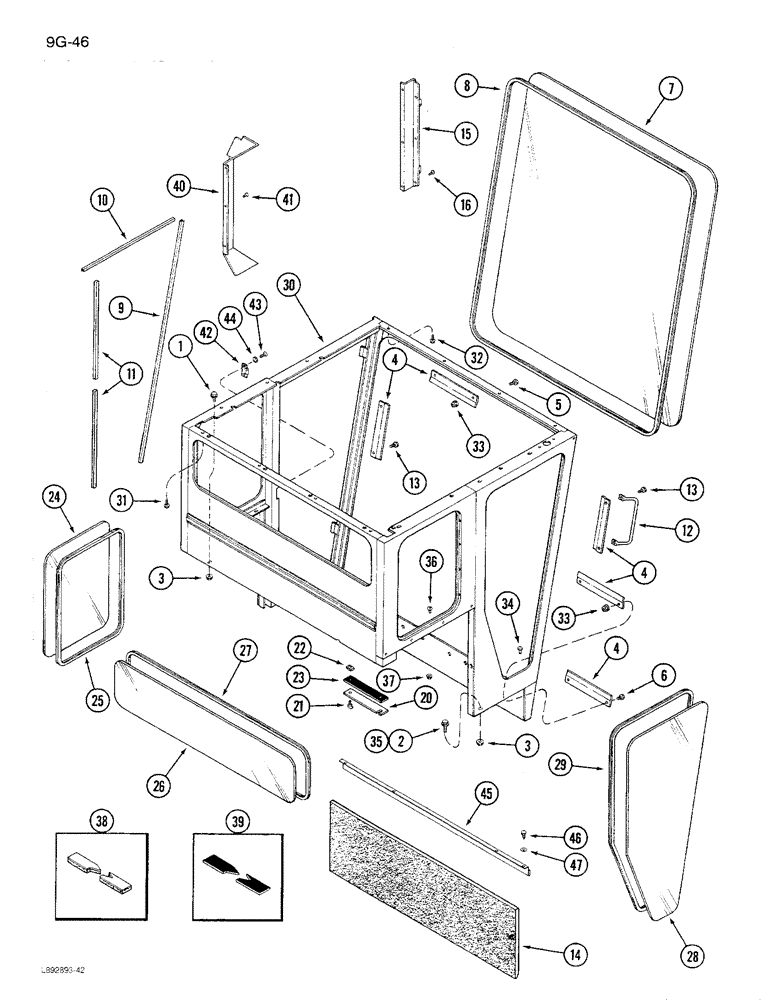

Запчасти Case IH 1680 (9G-46) - OPERATORS CAB (10) - CAB & AIR CONDITIONING

1330154C92

CAB

ASSEMBLY - operators (With heater and air conditioner), Includes: Ref. 1 - 47

1шт.

1

1327763C1

SCREW,Hex Wshr Hd, 3/8" - 16 x 3/4"

- hex washer head, 3/8 NC x 3/4 inch

8шт.

2

1327764C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/4"

- hex washer head, 3/8 NC x 1-1/4 inch

9шт.

3

1327765C1

LOCK NUT

- hex flange lock, 3/8 inch NC

18шт.

4

196742C3

LARGE PLATE

SUPPORT - windshield retainer (Replaces 196742C2)

7шт.

5

113-191

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

Hex, 5/16"-18 x 3/4",G5, Full Thd

2шт.

6

313-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

7

198242C1

GLASS

- cab windshield

1шт.

8

NSS

NOT SOLD SEPARAT

STRIP - windshield glass, 225 inch

1шт.

Order P/N 198131C2 and cut to length.

1шт.

9

NSS

NOT SOLD SEPARAT

STRIP - cab door opening front, 54 inch

1шт.

Order P/N 196707C1 and cut to length.

1шт.

10

NSS

NOT SOLD SEPARAT

STRIP - cab door opening top, 26 inch

1шт.

Order P/N 196707C1 and cut to length.

1шт.

11

NSS

NOT SOLD SEPARAT

STRIP - cab door opening rear, 24 inch

1шт.

Order P/N 196707C1 and cut to length.

1шт.

12

1321545C1

HANDLE

- grab

1шт.

13

113-198

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

- hex, 5/16 NC x 1 inch, Grade 5

2шт.

14

1321286C2

PANEL

- rear acoustical

1шт.

15

1987173C1

PANEL ASSY.

SUPPORT - filler, right (Replaces 1276309C1)

1шт.

16

261-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/8 inch

6шт.

20

1301129C1

DOOR

- clean out

1шт.

21

377363R1

THUMB SCREW,1/4" x 3/4"

- thumb, clean out door

2шт.

22

1301128C2

SPRING NUT,U, 1/4" - 20 x 23.37mm, Gr 5

- thumb screw (Replaces 1301128C1)

2шт.

23

NSS

NOT SOLD SEPARAT

STRIP - seal, clean out door, 9-11/16 inch

1шт.

Order P/N 1300025C1 and cut to length.

1шт.

24

198244C1

GLASS

- left rear

1шт.

25

NSS

NOT SOLD SEPARAT

STRIP - seal, cab left rear glass, 87 inch

1шт.

Order P/N 198131C2 and cut to length.

1шт.

26

198247C1

GLASS

- cab rear

1шт.

27

NSS

NOT SOLD SEPARAT

STRIP - seal, cab rear glass, 123 inch

1шт.

Order P/N 198131C2 and cut to length.

1шт.

28

198184C1

GLASS

- cab, right front

1шт.

29

NSS

NOT SOLD SEPARAT

STRIP - seal, right front glass, 130 inch

1шт.

Order P/N 198131C2 and cut to length.

1шт.

30

NSS

NOT SOLD SEPARAT

CAB - operator, order cab assembly

1шт.

31

1327768C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 38mm

- self tap, 5/16 inch

10шт.

32

1327545C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 32mm

- self tap, 5/16 inch

4шт.

33

1330064C1

FLANGE NUT

- hex flange lock, 5/16 inch NC

6шт.

34

1329797C1

PLUG

- tube, rubber

1шт.

35

1330146C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/2"

- hex washer head, 3/8 inch

2шт.

36

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss head, 1/4 NC x 3/4 inch

3шт.

37

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

3шт.

38

1301236C1

SEALING STRIP

STRIP - cab to deck, 28 inch

1шт.

39

198600C2

SEALING STRIP

SEAL - cab to deck, 156 inch

1шт.

40

1276305C1

SUPPORT

- hose cover, left

1шт.

41

261-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/8 inch

6шт.

42

392801R3

LATCH

STRIKER - door catch (Replaces 392801R2)

1шт.

43

442-1258

SCREW,Cross Oval Hd, 1/4"-20 x 1/2"

- machine, oval head Phillips, 1/4 NC x 1/2 inch

2шт.

44

493-51026

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER - countersunk, external lock, 1/4 inch

2шт.

45

1338051C1

BRACKET

- hold down, front

1шт.

46

275-1478

SELF-TAP SCREW,1/4" - 14 x 1/2"

SCREW - hex, self tapping, 1/4 x 1/2 inch

4шт.

47

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

FOOTNOTE

1шт.

P/N 91790C2 this is the LWR trim panel behind the seat, the UPR trim panel behind the seat P/N 1321286C3.

1шт.
