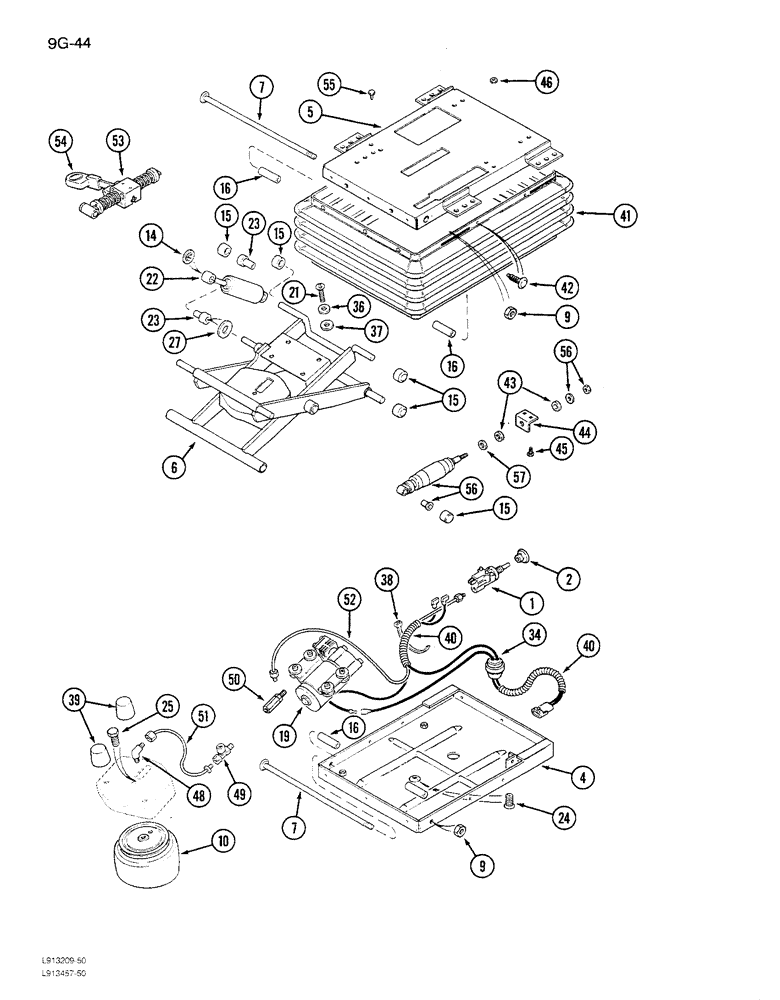

Запчасти Case IH 1680 (9G-44) - SEAT ASSEMBLY, AIR SUSPENSION, SEARS SEAT, P.I.N. JJC0115001 & AFTER (10) - CAB & AIR CONDITIONING

REF

INSTRUCTION

SEAT ASSEMBLY - operators

1шт.

1990648C1

PACKAGE

KIT - suspension service, Includes: Ref. 1 - 57

1шт.

1

1981852C2

IGNITION SWITCH

SWITCH ASSEMBLY - air control, Includes: Ref 2

1шт.

2

1987186C1

BUTTON

KNOB - switch

1шт.

4

1981834C1

HOUSING

- suspension, lower

1шт.

5

1990642C1

HOUSING

- upper, suspension

1шт.

6

1990643C1

FRAME ASSY

ARM ASSEMBLY - scissor, suspension

1шт.

7

A49529

SHAFT

- bearing tube

2шт.

9

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

2шт.

10

1981842C1

SPRING

- air

1шт.

14

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

1990644C1

PACKAGE

KIT - bearing, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

ROLLER - suspension

4шт.

16

NSS

NOT SOLD SEPARAT

TUBE - bearing

4шт.

19

1981843C1

COMPRESSOR

- air, Includes: Valve

1шт.

1990650C1

VALVE

- check

1шт.

21

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

- machine, pan head cross recess, No. 8-32 x 3/8"

4шт.

1344250C1

SHOCK ABSORBER

ABSORBER KIT - shock, Ref. 22 and 23

1шт.

22

NSS

NOT SOLD SEPARAT

ABSORBER - shock, seat

1шт.

23

NSS

NOT SOLD SEPARAT

BEARING - shock absorber

2шт.

24

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

- flat head cross recess, 3/8 NC x 3/4"

1шт.

25

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

27

A49678

WASHER

- flat, 21/64 x 1 x 5/64 inch

1шт.

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

34

1981848C1

HARNESS

ASSEMBLY - wire

1шт.

36

495-31022

WASHER,#10

4шт.

37

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

6шт.

39

1981849C1

SHOCK ABSORBER

BUMPER - rubber

2шт.

40

1343833C1

TUBE

TUBING - corrugated, 3/8 ID x 24 inch

2шт.

41

1990647C1

PACKAGE

KIT - boot, suspension

1шт.

42

1343837C1

SET OF PARTS

PIN - retaining (Package of 24)

1шт.

43

A49679

BUSHING

- rubber

2шт.

44

1981845C1

ANGLE

- mounting

1шт.

45

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd

2шт.

46

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

1990548C1

PACKAGE

KIT - air line and fittings, Includes: Ref. 48 - 52

1шт.

48

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, 1/8 PT x 5/32 inch tube

1шт.

49

NSS

NOT SOLD SEPARAT

TEE - 1/8 PT x 1/4 inch tube

1шт.

50

NSS

NOT SOLD SEPARAT

ADAPTER - straight, 1/8 PT x 1/4 inch tube

1шт.

51

NSS

NOT SOLD SEPARAT

TUBE - nylon, 1/4 OD x 9-1/2 inch

1шт.

52

NSS

NOT SOLD SEPARAT

TUBE - nylon, 1/4 OD x 28 inch

1шт.

53

1990645C1

LATCH

ASSEMBLY - isolator, fore and aft, Includes: Ref. 54

1шт.

54

1981850C1

GRIP

KNOB - isolator control, fore and aft

1шт.

55

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW, SELF TAPPING, hex head, 5/16 NC x 3/4"

2шт.

56

1990646C1

SHOCK ABSORBER

KIT - shock absorber

1шт.

57

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.
