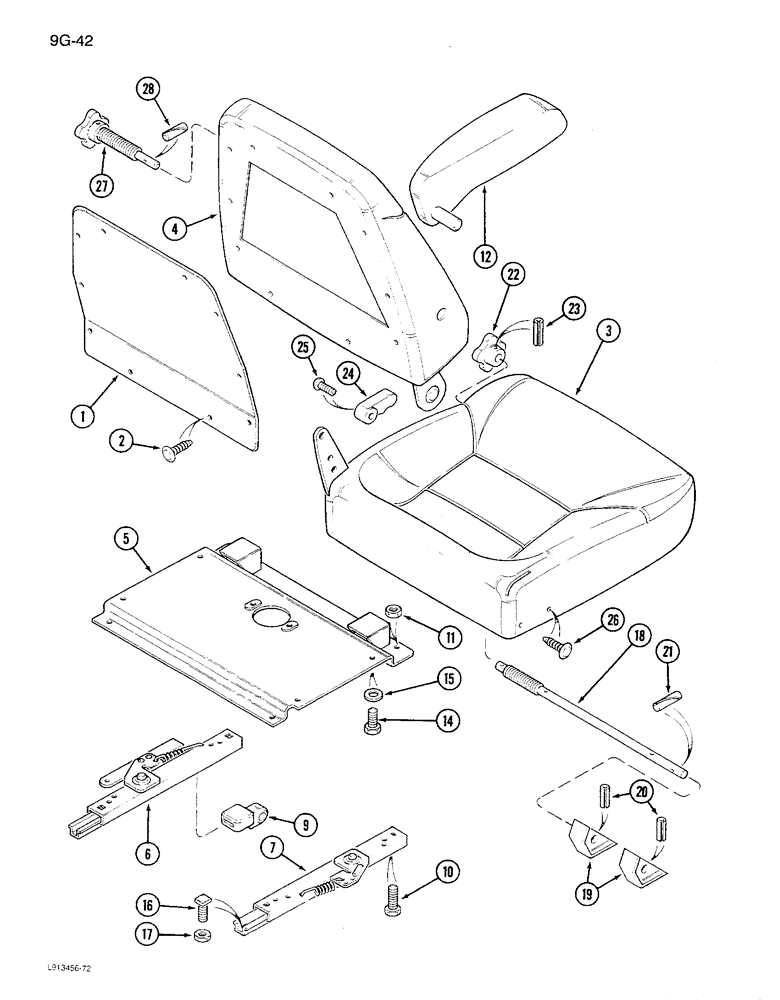

Запчасти Case IH 1680 (9G-42) - SEAT ASSEMBLY, AIR SUSPENSION, SEARS SEAT, P.I.N. JJC0115001 & AFTER (10) - CAB & AIR CONDITIONING

1990653C2

SEAT

ASSEMBLY - operators, air suspension

1шт.

1

1974713C1

PACKAGE

COVER KIT - seat, back, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

CLIP - christmas tree

10шт.

3

1974701C1

SET OF PARTS

CUSHION KIT - seat (Includes 48 retainer rings)

1шт.

4

1974702C1

SET OF PARTS

CUSHION KIT - backrest (Includes 44 retainer rings)

1шт.

1974702C 2- is w/o inside frame. (if looking for back cushion w/frame use 132886A1)

1шт.

5

1990891C1

LARGE PLATE

PLATE - slide adapter

1шт.

1344247C1

SLIDE

KIT - slide, Includes: Ref. 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

SLIDE - seat, with handle

1шт.

7

NSS

NOT SOLD SEPARAT

SLIDE - seat

1шт.

9

1981829C1

WINDOW STAY

KNOB - fore/aft

1шт.

10

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

11

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

4шт.

12

1981818C1

ARMREST

KIT - arm rest, left

1шт.

14

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

4шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

16

117-101

BOLT

BOLT - square head 5/16 x 3/4 inch

4шт.

17

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

4шт.

1344004C2

PACKAGE

CUSHION KIT - seat and backrest (Includes Ref. 1 - 4), Includes: Cushion Kit and Ref. 18 - 28

1шт.

1987286C2

CUSHION, SEAT

CUSHION KIT - seat (Includes Ref. 3), Includes: Shaft and Ref. 18 - 20

1шт.

1343847C2

SHAFT ASSY.

SHAFT - seat narrow

1шт.

18

NSS

NOT SOLD SEPARAT

CAMSHAFT

1шт.

19

NSS

NOT SOLD SEPARAT

CAM - seat tilt

2шт.

20

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

21

138-2022

PIN,5/32" x 1 1/4", Coiled

1шт.

22

1981826C1

KNOB

- seat tilt

1шт.

23

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

24

1987212C1

PACKAGE

KNOB KIT - seat, backrest tilt, Includes: Ref. 25

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW - machine, oval head cross recess, 6 x 12 mm

1шт.

26

1974722C1

CLIP,ELECTRICAL

CLIP - retaining

14шт.

27

1981828C1

BUTTON

KNOB - lumbar control

1шт.

28

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.
