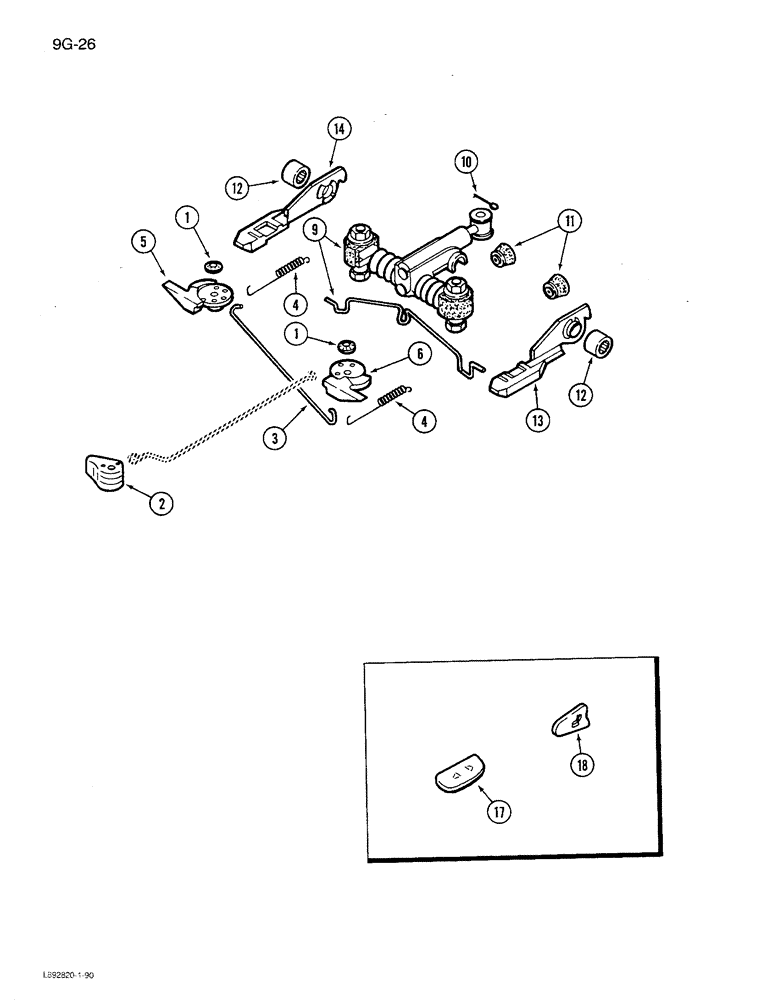

Запчасти Case IH 1680 (9G-26) - SEAT ASSEMBLY, ISOLATOR, GRAMMER SEAT (10) - CAB & AIR CONDITIONING

91788C91

SEAT

ASSEMBLY - operator

1шт.

98148C1

KIT

SERVICE KIT - isolator, Includes: Ref. 1 - 14

1шт.

1

60-4882T1

RING, SNAP

RETAINER - push-on

2шт.

2

NSS

NOT SOLD SEPARAT

HANDLE - isolator

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - connecting

1шт.

4

60-1603T1

SPRING

- tension

2шт.

5

NSS

NOT SOLD SEPARAT

ECCENTRIC - isolator, right

1шт.

6

NSS

NOT SOLD SEPARAT

ECCENTRIC - isolator, left

1шт.

9

NSS

NOT SOLD SEPARAT

ISOLATOR ASSEMBLY - seat, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

PIN - isolator

1шт.

11

NSS

NOT SOLD SEPARAT

BUMPER - isolator (Set of 2)

1шт.

12

60-4879T1

NEEDLE BEARING

- needle roller

2шт.

13

NSS

NOT SOLD SEPARAT

BRACKET - catch mounting, left

1шт.

14

NSS

NOT SOLD SEPARAT

BRACKET - catch mounting, right

1шт.

98144C1

KIT

SERVICE KIT - miscellaneous (Includes: Ref. 2, 11, 12, 17 and 18) (Includes Ref. on Figure 9G-??? and ???)

1шт.

17

60-4861T1

HANDLE

- slide

1шт.

18

NSS

NOT SOLD SEPARAT

HANDLE - recline

1шт.
