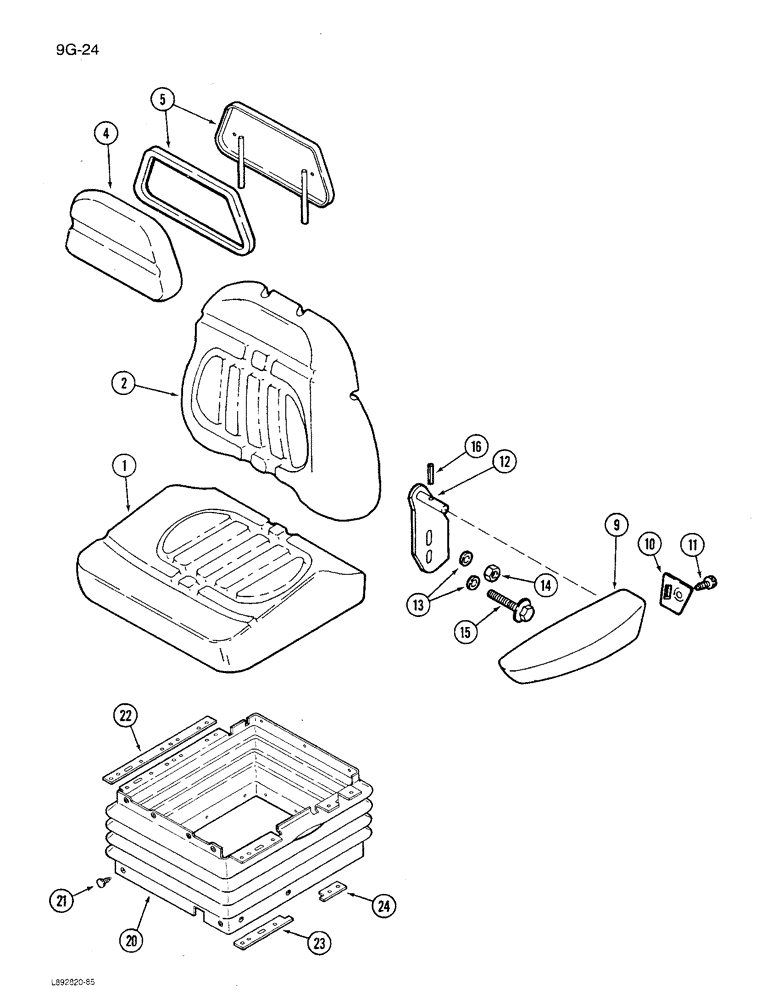

Запчасти Case IH 1680 (9G-24) - SEAT ASSEMBLY, CUSHION, GRAMMER SEAT (10) - CAB & AIR CONDITIONING

91788C91

SEAT

ASSEMBLY - operator

1шт.

98141C1

KIT

SERVICE KIT - cushion, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - seat

1шт.

2

NSS

NOT SOLD SEPARAT

CUSHION - backrest

1шт.

98143C1

KIT

SERVICE KIT - extension, backrest, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

EXTENSION CUSHION - backrest

1шт.

5

NSS

NOT SOLD SEPARAT

SUPPORT - cushion

1шт.

98142C1

ARMREST ASSY.

SERVICE KIT - arm rest, Includes: Ref. 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

ARMREST - seat

1шт.

10

NSS

NOT SOLD SEPARAT

COVER - armrest, left

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW - cover retaining

1шт.

12

NSS

NOT SOLD SEPARAT

SUPPORT - armrest

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - flat

2шт.

14

60-4845T1

NUT

- hex, 8 mm

1шт.

15

60-4843T1

SCREW

BOLT - hex, 8 x 18 mm

1шт.

16

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

98150C1

KIT

SERVICE KIT - suspension bellows, Includes: Ref. 20 - 24

1шт.

20

NSS

NOT SOLD SEPARAT

COVER - suspension

1шт.

21

60-1613T1

FASTENER

- snap, boot

25шт.

22

60-1632T1

PLATE

- cover strip, right

1шт.

23

60-4912T1

PLATE

- cover strip, left front

1шт.

24

60-4913T1

PLATE

- cover strip, left rear

1шт.

98140C1

KIT

SERVICE KIT - top assembly, seat

1шт.

98147C1

KIT

SERVICE KIT - chassis seat (Includes all parts above suspension except for armrest, backrest, seat cushion and backrest extension)

1шт.
