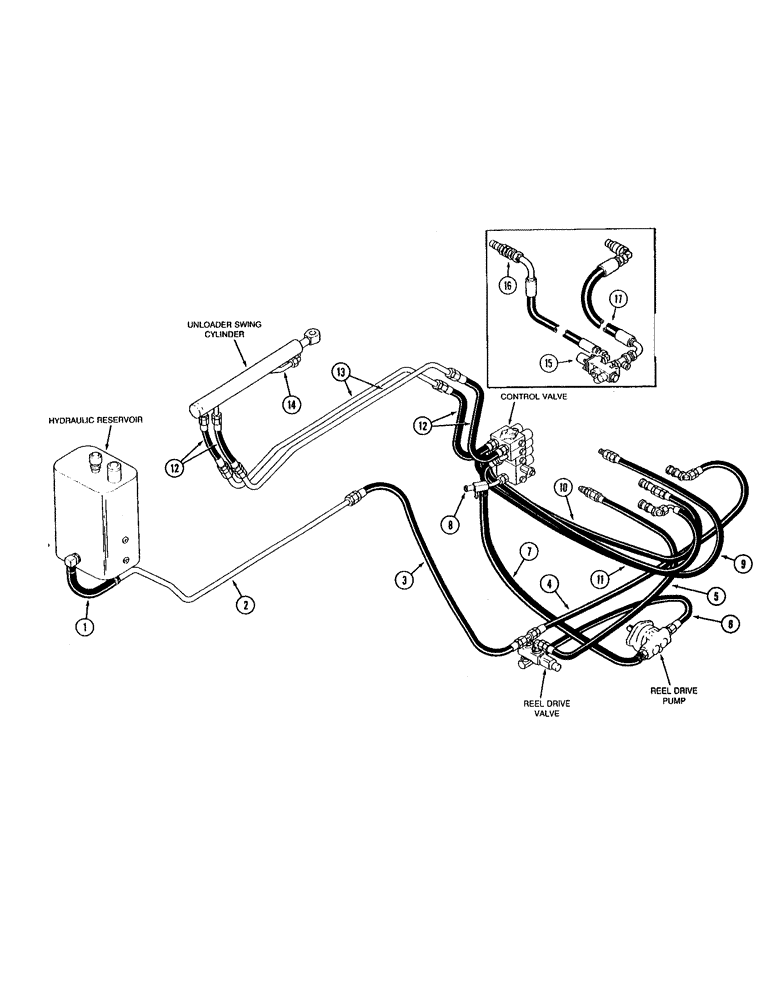

Запчасти Case IH 1680 (1-030) - PICTORIAL INDEX, REEL HYDRAULIC SYSTEM (00) - PICTORIAL INDEX

1

Reel Drive Return Hose, Figure 8-96

1шт.

2

Reel Drive Return Tube, Figure 8-96

1шт.

3

Reel Drive Return Hose, 82 inch, Figure 8-96

1шт.

4

Reel Drive Return Hose, Figure 8-96

1шт.

5

Reel Drive Pressure Hose, Figure 8-96

1шт.

6

Reel Drive Pump Pressure Hose, Figure 8-96

1шт.

7

Reel Drive Suction Hose, Figure 8-96

1шт.

8

Control Valve Return Tube, Figure 8-96

1шт.

9

Reel Fore and Aft Hose, Figure 8-122

1шт.

10

Reel Fore and Aft Hose, Figure 8-122

1шт.

11

Reel Lift Hose, Figure 8-118

1шт.

12

Unloader Swing Hose, Figure 8-144

1шт.

13

Unloader Swing Cylinder Tube, Figure 8-144

1шт.

14

Unloader Swing Cylinder Tube, Figure 8-144

1шт.

15

Valve Flow Divider, Figure 8-98

1шт.

16

Reel Drive Pressure Hose, Figure 8-98

1шт.

17

Reel Drive Return Hose, Figure 8-98

1шт.
