(9G-16) - OPERATORS SEAT

Запчасти Case IH 1680 (9G-16) - OPERATORS SEAT (10) - CAB & AIR CONDITIONING

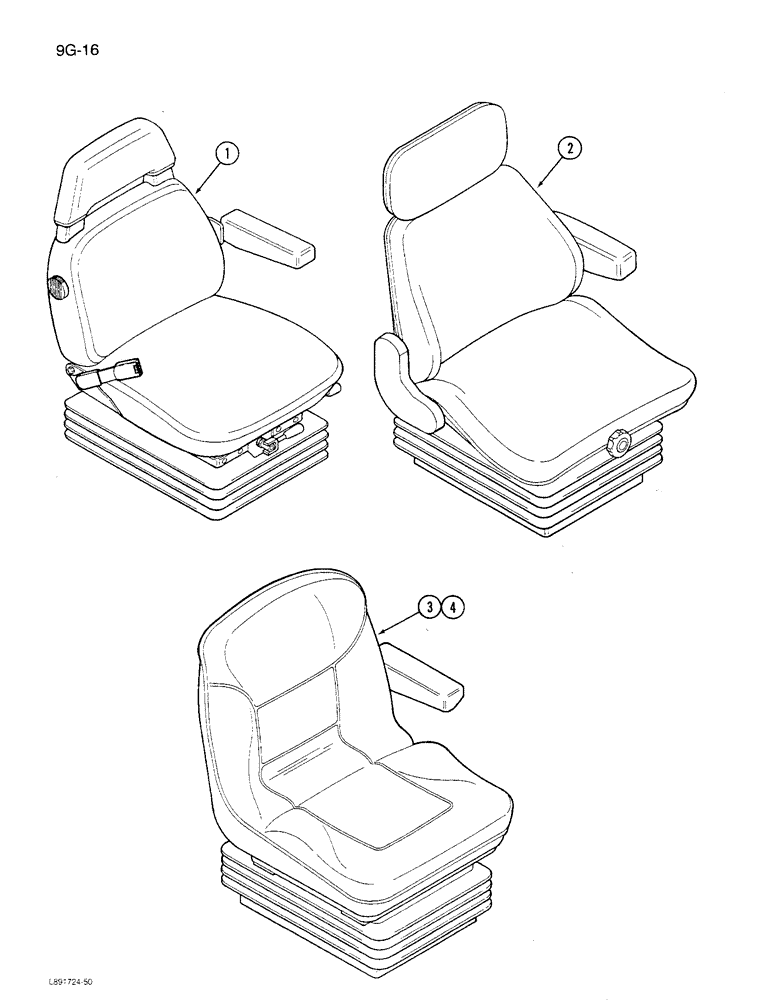

Схема запчастей Case IH 1680 - (9G-16) - OPERATORS SEAT (10) - CAB & AIR CONDITIONING
3
4
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

SEAT ASSEMBLY - operator, Bostrom (See Figure 9G-18)

1шт.

2

REF

INSTRUCTION

SEAT ASSEMBLY - operator, Grammer (See Figure 9G-28)

1шт.

3

REF

INSTRUCTION

SEAT ASSEMBLY - operators, Sears, mechanical (See Figures 9G-30 - 9G-36)

1шт.

4

REF

INSTRUCTION

SEAT ASSEMBLY - operators, Sears, air suspension (See Figures 9G-38 - 9G-44)

1шт.

Выбрано товаров: 4
