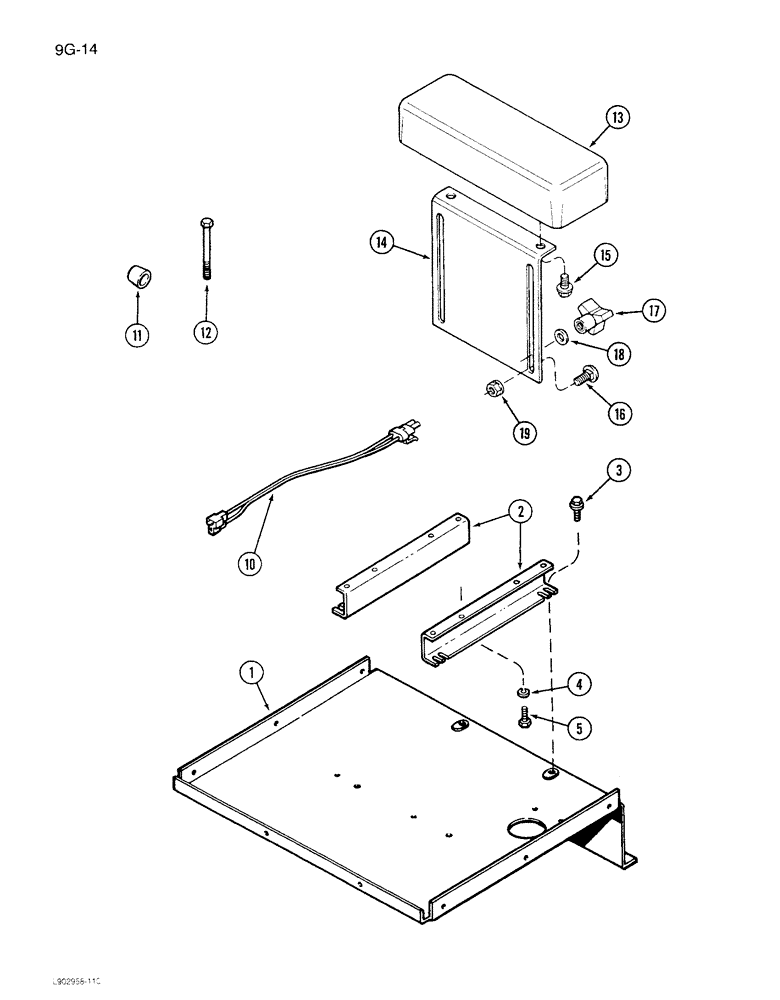

Запчасти Case IH 1680 (9G-14) - OPERATORS SEAT MOUNTING, P.I.N. JJC0047296 AND AFTER (10) - CAB & AIR CONDITIONING

1

REF

INSTRUCTION

SUPPORT - seat (See Figure 9G-10)

1шт.

2

1979726C3

SUPPORT

BRACKET - seat supporting

2шт.

3

1330156C1

LOCK BOLT,Hex Flg, 5/16" - 18 x 3/4"

BOLT - hex flange lock, 5/16 NC x 3/4 inch

4шт.

4

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

10

1983414C1

HARNESS

- seat, Start Serial: JJC0115001

1шт.

10

1345209C1

HARNESS

- seat, Serial Range: -JJC0115001

1шт.

11

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

12

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

4шт.

13

1301216C3

ARMREST

- seat

1шт.

14

192999C1

SUPPORT

- arm rest mounting

1шт.

15

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

16

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

17

196970C1

KNOB

- arm rest

2шт.

18

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

19

1330064C1

FLANGE NUT

- hex, flange lock, 5/16 inch NC

2шт.
