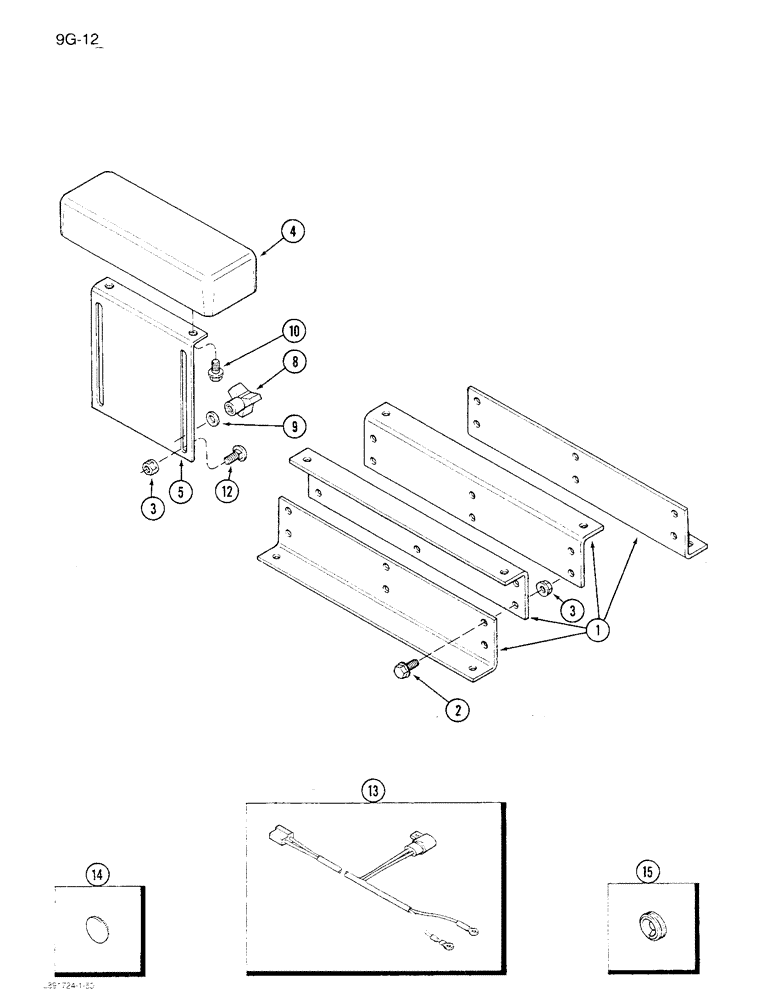

Запчасти Case IH 1680 (9G-12) - OPERATORS SEAT MOUNTING, PRIOR TO P.I.N. JJC0047296 (10) - CAB & AIR CONDITIONING

1

98115C1

BRACKET

- seat mounting

4шт.

2

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

4шт.

2

1330156C1

LOCK BOLT,Hex Flg, 5/16" - 18 x 3/4"

BOLT - hex, flange lock, 5/16 NC x 3/4 inch

10шт.

3

1330064C1

FLANGE NUT

- hex flange lock, 5/16 inch NC

6шт.

4

1301216C3

ARMREST

ARM REST - seat

1шт.

5

192999C1

SUPPORT

- arm rest mounting

1шт.

8

196970C1

KNOB

- arm rest

2шт.

9

25708R1

WASHER

- flat, 11/32 x 11/16 x 3/32 inch

2шт.

10

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- hex flange lock, 5/16 NC x 1/2 inch

2шт.

12

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

13

91832C1

HARNESS

ASSEMBLY - Grammer seat

1шт.

14

142094

HOLE PLUG BUTTON,1'

PLUG - button, 1 inch hole diameter (Bostrom)

1шт.

15

123548H

GROMMET

- Grammer seat

1шт.
