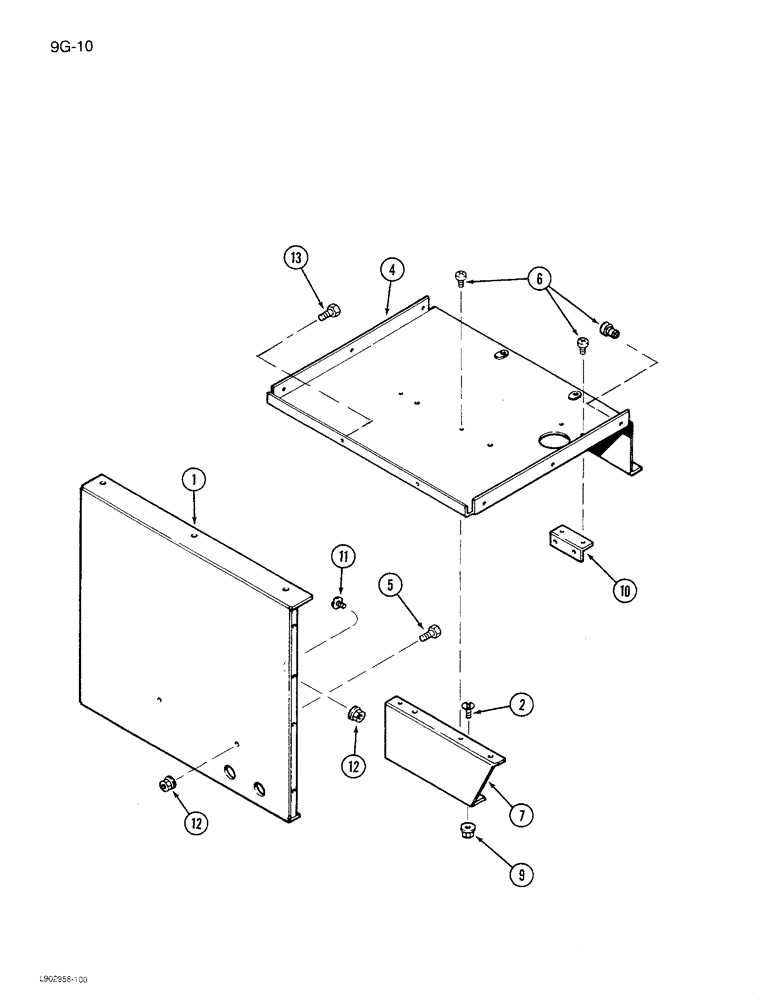

Запчасти Case IH 1680 (9G-10) - OPERATORS SEAT SUPPORTS, P.I.N. JJC0046434 AND AFTER (10) - CAB & AIR CONDITIONING

1

91757C2

PANEL ASSY.

PANEL - center rear

1шт.

2

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

2шт.

4

1979504C1

SUPPORT ASSY.

SUPPORT - seat

1шт.

5

280-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex head, 1/4 x 3/4 inch

4шт.

6

260-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan Phillips, No. 10-16 x 1/2 inch

10шт.

7

91695C1

CHANNEL

ASSEMBLY - center

1шт.

9

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

10

91703C2

BRACKET

ANGLE - reservoir bracket

1шт.

11

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

7шт.

12

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

7шт.

13

280-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex head, 1/4 x 3/4 inch

2шт.
