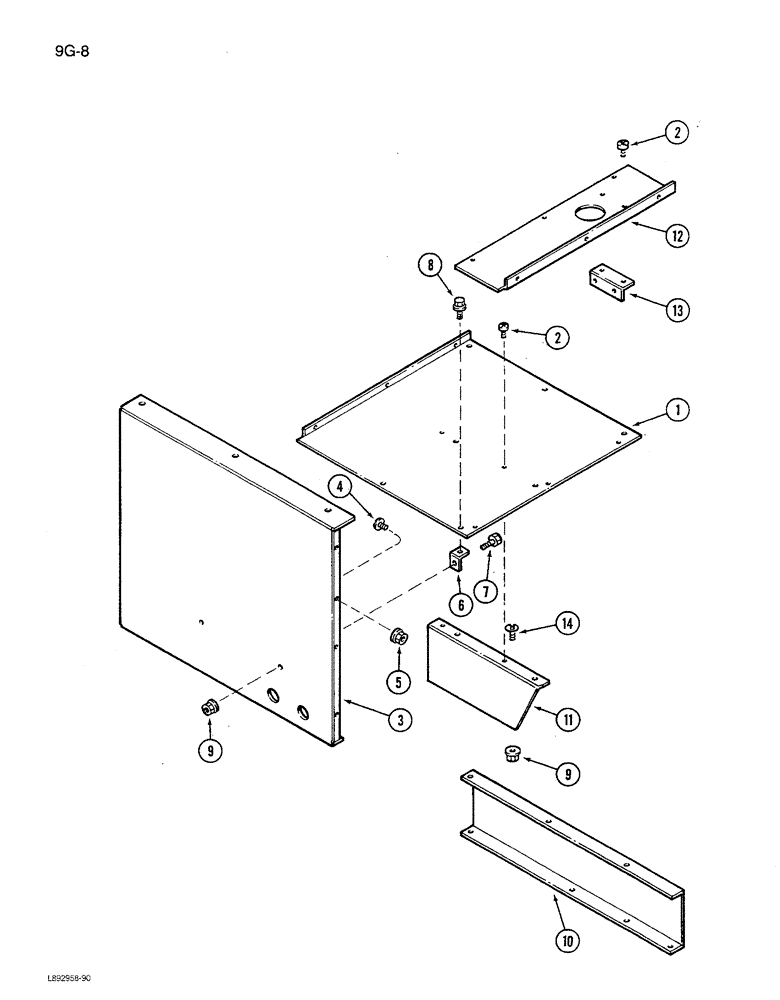

Запчасти Case IH 1680 (9G-08) - OPERATORS SEAT SUPPORTS, PRIOR TO P.I.N. JJC0046434 (10) - CAB & AIR CONDITIONING

1

91701C1

PLATE

- base

1шт.

2

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross slot, polyseal 1/2 inch

13шт.

3

91757C2

PANEL ASSY.

PANEL - center rear

1шт.

4

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

7шт.

5

1330064C1

FLANGE NUT

- hex, flange lock, 5/16 inch NC

7шт.

6

91708C1

BRACKET

ANGLE - rear support

2шт.

7

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3шт.

8

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

2шт.

9

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

7шт.

10

91693C1

CHANNEL

- front

1шт.

11

91695C1

CHANNEL

- center

1шт.

12

91702C1

COVER

- reservoir bracket

1шт.

13

91703C2

BRACKET

ANGLE - reservoir bracket

1шт.

14

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

5шт.
