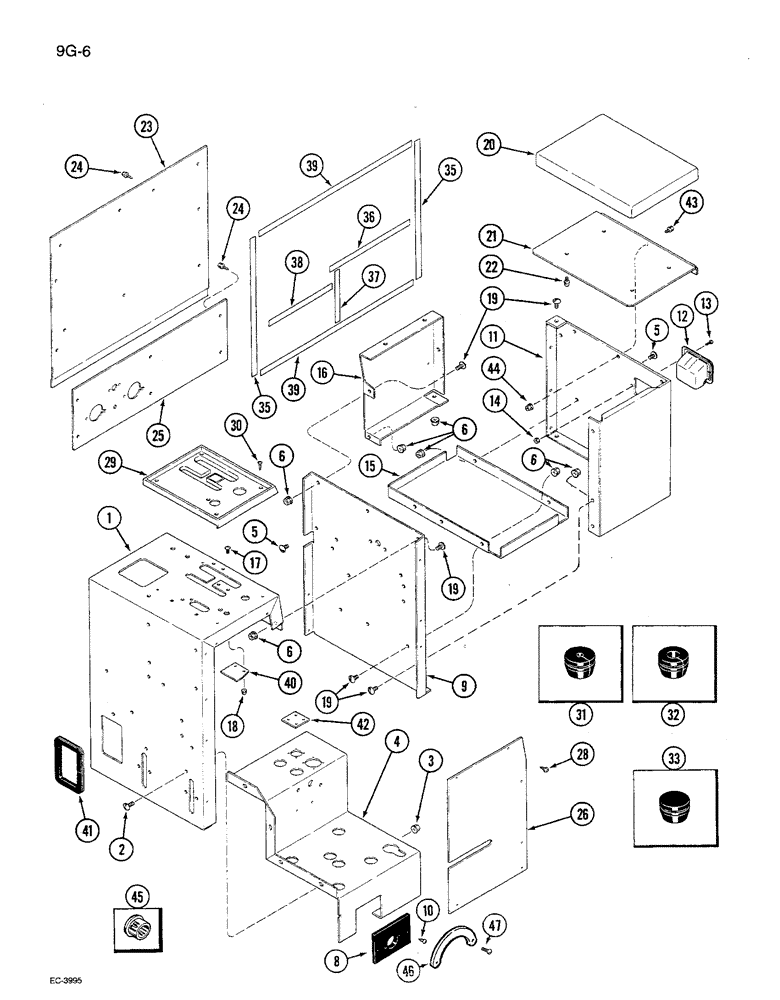

Запчасти Case IH 1680 (9G-06) - LEFT CONSOLE (10) - CAB & AIR CONDITIONING

1

193065C9

BRACKET

SUPPORT - left console, rear

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

4шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

4

1321719C3

SUPPORT

- left console lower

1шт.

5

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

51шт.

6

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

59шт.

8

1345009C1

GROMMET

- wiring harness (Replaces 1327577C2)

1шт.

9

1324177C2

PLATE

SUPPORT - manual box rear

1шт.

10

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - tapping, round x-recess, No. 10-16 x 3/4 inch

2шт.

11

1979493C3

SUPPORT

- manual box, front (Replaces 1324178C2 and 1324175C2)

1шт.

12

A165449

ASH TRAY

TRAY - ash

1шт.

13

489-1108

SCREW,Cross Oval Hd, #10"-32 x 1/2"

- oval head Phillips, No. 10 NF x 1/2 inch

2шт.

14

225-13210

NUT,#10-32

2шт.

15

1324176C1

PLATE

SUPPORT - manual box bottom (If equipped)

1шт.

16

91878C3

SUPPORT

- manual box cover (Left)

1шт.

17

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

2шт.

18

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

19

1330151C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

9шт.

20

98129C2

PANEL

- trim (Gray)

1шт.

21

1329876C1

PLATE

COVER ASSEMBLY - manual box

1шт.

22

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- hex flange lock, 1/4 NC x 1/2 inch

4шт.

23

1327958C2

PLATE

- left console outer cover

1шт.

24

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head tap, 1/4 x 1/2 inch

6шт.

24

281-34712

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - hex washer head tap, 1/4 x 3/4 inch

12шт.

25

1283280C2

SUPPORT

- left console connector panel

1шт.

26

91776C2

PLATE

- left console inner

1шт.

28

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross slot, polyseal 1/2 inch

7шт.

29

1285417C2

COVER

- left console

1шт.

30

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - oval head recessed, No. 10 x 3/4 inch

4шт.

31

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- 3/8 inch ID

2шт.

32

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- 3/4 inch ID

2шт.

33

198820C1

GROMMET

- plug

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL - console cover, 18 inch (Order 195917C1 and cut)

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - console cover, 12 inch (Order 195917C1 and cut)

1шт.

37

NSS

NOT SOLD SEPARAT

SEAL - console cover, 7 inch (Order 195917C1 and cut)

1шт.

38

NSS

NOT SOLD SEPARAT

SEAL - console cover, 9 inch (Order 195917C1 and cut)

1шт.

39

NSS

NOT SOLD SEPARAT

SEAL - console cover, 23 inch (Order 195917C1 and cut)

1шт.

40

195239C2

BAR

- H pattern filler plate

1шт.

41

NSS

NOT SOLD SEPARAT

TRIM - edge, in left rear console panel, 16 inch (Order 196707C1 and, Serial Range: cut-length)

1шт.

42

1330179C1

PLATE

- cover

1шт.

43

1330155C1

BOLT,Hex Flg, 1/4" - 20 x 1/2"

- hex flange lock, 1/4 NC x 1/2 inch

3шт.

44

1330157C1

FLANGE NUT

- hex flange lock, 1/4 inch NC

3шт.

45

353-404

PLUG,Dome, .500" hole, Nylon

2шт.

46

1999442C1

RETAINER

- grommet

1шт.

47

1971376C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

SCREW - pan head 10-1

2шт.
