(9G-04) - RIGHT CONSOLE (CONTD)

Запчасти Case IH 1680 (9G-04) - RIGHT CONSOLE (CONTD) (10) - CAB & AIR CONDITIONING

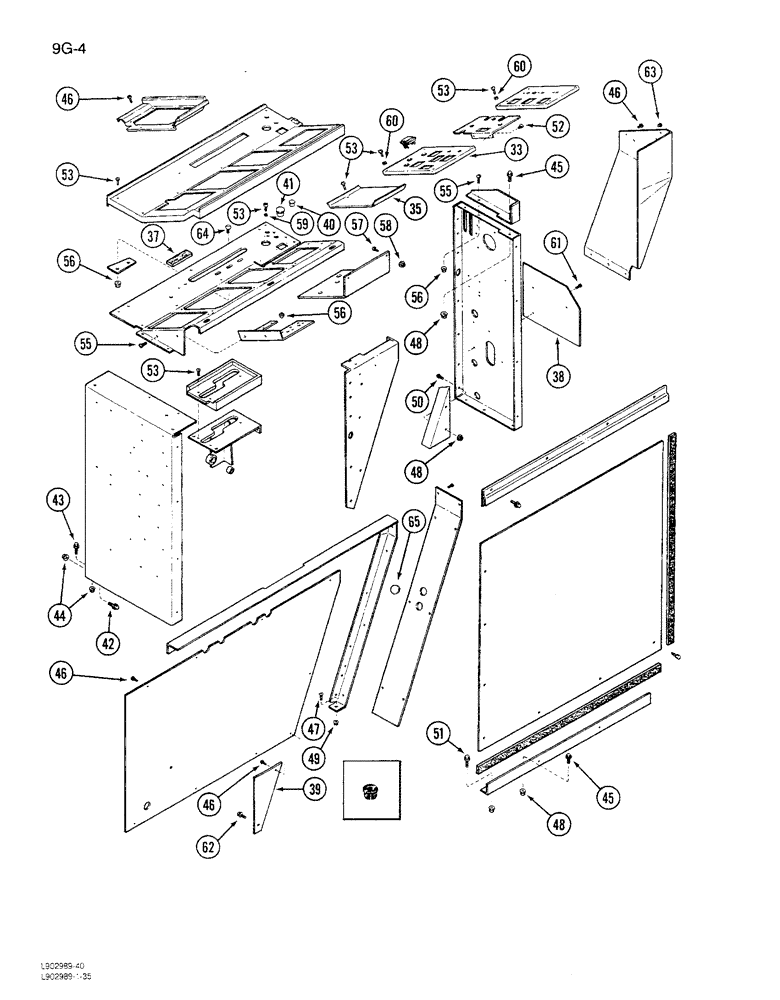

Схема запчастей Case IH 1680 - (9G-04) - RIGHT CONSOLE (CONTD) (10) - CAB & AIR CONDITIONING
65
53
35
47
46
45
56
60
64
48
61
56
43
48
46
62
57
53
53
41
55
42
49
40
44
46
33
37
50
53
59
39
45
38
46
52
58
56
51
63
60
53
55
48
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

33

1276211C1

PANEL

- machine control, continued

1шт.

35

187573C1

COVER

- fuse panel

1шт.

37

NSS

NOT SOLD SEPARAT

SEAL - console cover, 3 inch (Order 195917C1, and cut)

2шт.

38

1327985C1

PLATE

- hole cover, right front

1шт.

39

91705C1

PLATE

BAR - right console, lower

1шт.

40

353-403

PLUG,Dome, .437" hole, Nylon

- hole, 1/2 diameter

2шт.

41

183617C1

PLUG

- right console

1шт.

42

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW - hex flange, 3/8 NC x 3/4 inch

2шт.

43

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW - hex flange, 3/8 NC x 1 inch

2шт.

44

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

45

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

SCREW - hex flange lock, 5/16 NC x 3/4 inch

10шт.

46

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross recess, No. 10 x 1/2 inch

32шт.

47

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

1шт.

48

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

14шт.

49

1254276C1

PUSH-ON NUT

- pal, fastener

1шт.

50

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

51

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

52

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex tap, 1/4 x 1/2 inch

10шт.

53

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - oval head, No. 10-16 x 3/4 inch

23шт.

55

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss head, 1/4-20 NC x 3/4 inch

3шт.

56

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

3шт.

57

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- pan head, No. 10-24 x 3/4 inch

4шт.

58

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex flange lock, No. 10-24

4шт.

59

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

3шт.

60

1329968C1

WASHER

- No. 10 oval head finishing (Black)

8шт.

61

261-1378

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW - pan head, 1/4 NC x 1/2 inch

3шт.

62

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

SCREW - hex washer head, 5/16 NC x 1 inch

1шт.

63

1321784C1

PLUG

- 5/16 inch nylon

2шт.

64

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- hex flange lock, 1/4 NC x 1/2 inch

1шт.

65

353-254

PUSH BUTTON,1 1/4"

PLUG - button, 1-19/64 inch

1шт.
