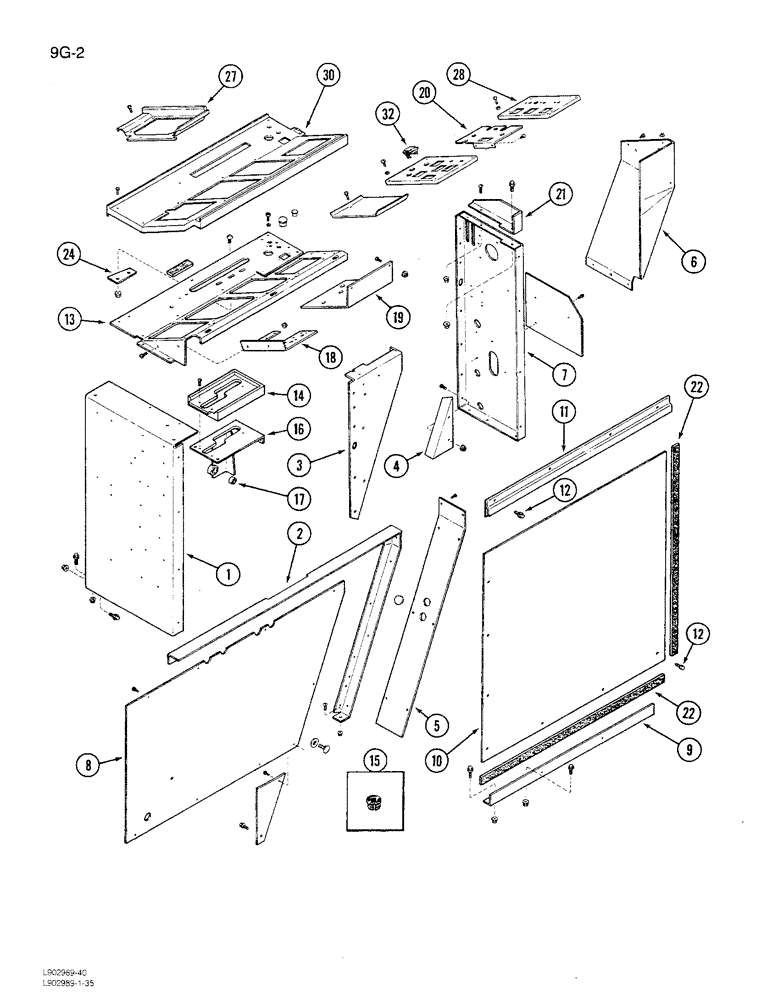

Запчасти Case IH 1680 (9G-02) - RIGHT CONSOLE (10) - CAB & AIR CONDITIONING

1

1321966C1

SUPPORT

- right console, rear

1шт.

2

193031C3

SUPPORT

ASSEMBLY - right console front

1шт.

3

195992C2

SUPPORT

- right console extension, right

1шт.

4

195991C1

SUPPORT

- right console extension, lower

1шт.

5

1317106C1

SUPPORT

- right console extension, front (Replaces 193034C1)

1шт.

6

1283101C2

SUPPORT

- right console front extension, lower

1шт.

7

1987556C1

SUPPORT

- console, front

1шт.

8

91704C1

PLATE

- right console inner

1шт.

9

193033C2

ANGLE

- right console lower, outer

1шт.

10

1301218C1

PLATE

- right console, outer

1шт.

11

1301334C1

SUPPORT

- right outer cover

1шт.

12

281-34712

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - hex washer head, 1/4 NC x 3/4 inch

1шт.

13

1301210C6

SUPPORT

- right console, top

1шт.

14

198988C1

COVER

- hydrostatic drive console

1шт.

15

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- control

2шт.

16

193277C91

SUPPORT ASSY.

SUPPORT ASSEMBLY - hydrostatic drive, Includes: Ref. 17

1шт.

17

1979989C1

BUSHING,19.13mm ID x 22.3mm OD x 15.7mm L

- drive support (Replaces 165704C1)

1шт.

18

1280162C3

SUPPORT

- fuse block

1шт.

19

1280424C1

BRACKET

SUPPORT - back light machine control

1шт.

20

1280422C1

BRACKET

SUPPORT - back light front control

1шт.

21

1327501C1

SUPPORT

- panel front

1шт.

22

NSS

NOT SOLD SEPARAT

STRIP - right console cover, 27 inch (Order 195917C1 and, Serial Range: cut-length)

4шт.

24

1329861C2

PLATE

- throttle control

1шт.

27

1280125C1

FRAME

- front control panel

1шт.

28

1324968C1

PANEL

- front control (With decal)

1шт.

30

1324972C1

PANEL

COVER - right console instrument panel (With decal)

1шт.

32

245334C1

PLUG

COVER - switch opening right side

5шт.
