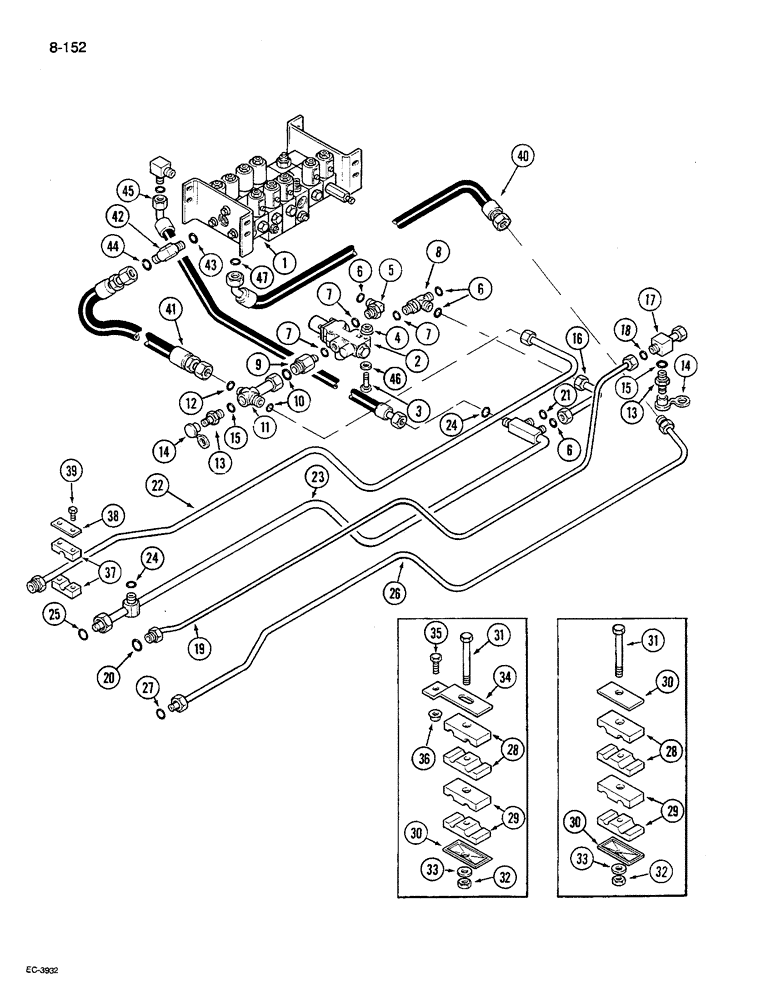

Запчасти Case IH 1680 (8-152) - HYDRAULIC PIPES, HEADER LIFT, REEL DRIVE & VALVE STACK, P.I.N. JJC0117060 & AFTER (07) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - (See Figure 8-72 or 78)

1шт.

2

1272619C93

VALVE

ASSEMBLY - reel drive (See Figure 8-112 or 152)

1шт.

3

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

2шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

5

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 90 degree, 5/8 inch

1шт.

6

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

3шт.

8

201-420

TEE,1"-14 x 7/8"-14 Run, ORFS

- 5/8 inch swivel

1шт.

9

1541634C1

VALVE

- relief, pressure regulator 250 PSI

1шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

11

1541633C2

TEE

- branch, feeder clutch valve

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

13

1541849C1

COUPLING

COUPLER - diagnostic

2шт.

1543171C1 is the Female Coupler

1шт.

14

H434163

DUST CAP

CAP - coupler, dust

2шт.

16

1989476C1

HYD TUBE

TUBE ASSEMBLY - reel drive return

1шт.

17

1541791C1

TEE

- steering diagnostic

1шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

19

1989288C2

HYD TUBE

TUBE - steering pressure

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

22

1541752C2

HYD TUBE,0.75" OD, 2294, 292 mm Length

TUBE - reel valve supply

1шт.

23

1989284C2

HYD TUBE,1" OD

TUBE - valve stack return

1шт.

24

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

25

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

- 1 inch

1шт.

26

1989282C3

HYD TUBE

TUBE - header lift supply

1шт.

27

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

28

1347072C1

CLAMP

- tube retaining, 1 x 3/4 inch

3шт.

29

1989362C1

CLAMP

- hydraulic tube 3/4 inch

3шт.

30

1347127C1

PLATE

- hose clamp

4шт.

31

424-564

BOLT,Hex, 5/16" - 18 x 4", Gr 2

- hex, 5/16 x 4 inch

3шт.

32

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

5шт.

33

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

34

1989304C1

ANGLE

BRACKET -

2шт.

35

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

36

425-105

NUT,5/16"-18, G5

- hex, flange lock, 5/16 inch NC

2шт.

37

1541538C1

CLAMP

- reel drive tube

1шт.

38

1541537C1

PLATE

- clamp

1шт.

39

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

40

1989509C2

HOSE

- valve stack supply

1шт.

41

1541573C2

HOSE ASSY.

HOSE - feeder clutch supply

1шт.

42

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 3/8 x 1/2 inch

1шт.

44

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

45

1989530C1

HOSE

ASSEMBLY - valve stack drain, 33 inch

1шт.

46

495-81123

WASHER,0.34" ID x 1.75" OD x 0.18" Thk

- flat, 11/32 x 1-3/4 x 11/64 inch

2шт.

47

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

43

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end, 3/8 inch

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

2шт.
