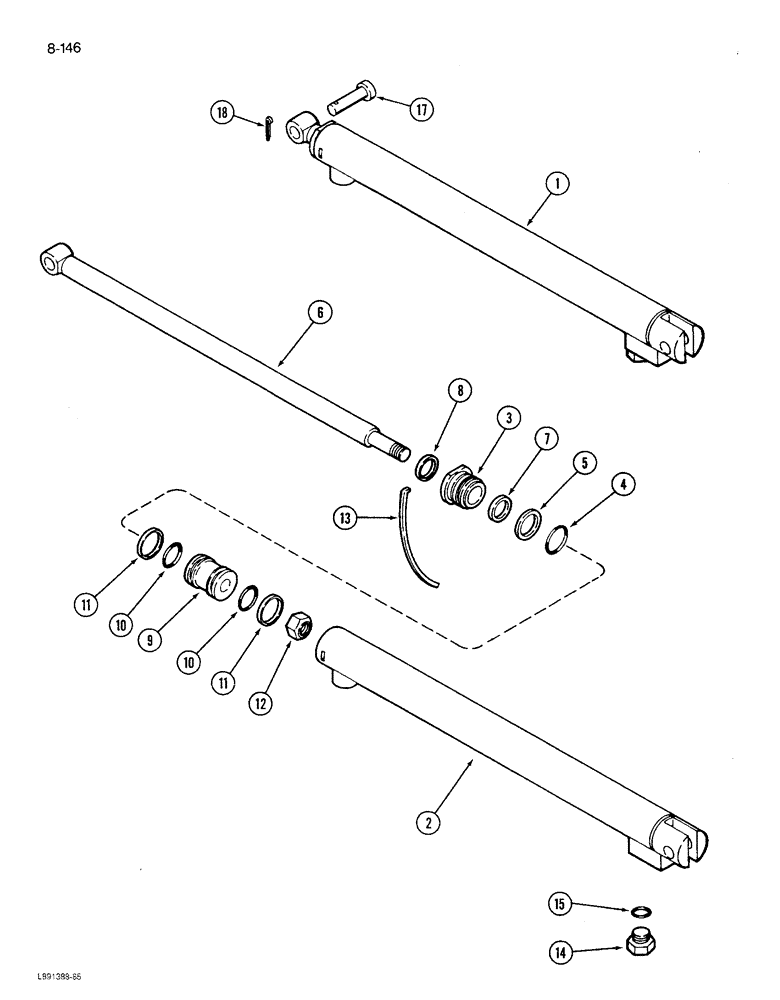

Запчасти Case IH 1680 (8-146) - UNLOADER TUBE SWING CYLINDER (07) - HYDRAULICS

1

1282488C91

CYLINDER

ASSEMBLY - hydraulic, swing

1шт.

1282488C92R

REMAN-HYD CYLINDER

1680 S/N JJC0045689 & After (1/86 -12/92), Reman For New P/N 1282488C91

1шт.

1282488C92C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE ASSEMBLY - cylinder

1шт.

3

1252291C1

HEAD

- front

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16 x 1-1/2 inch, Class 6

1шт.

5

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

6

1285720C1

ROD

- piston

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

9

1285719C1

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

RING - 1-3/16 x 1-3/8 inch, Class 5 seal

2шт.

11

NSS

NOT SOLD SEPARAT

RING - seal

2шт.

12

9411658

LOCK NUT,5/8"-11, GC

NUT - hex lock, 5/8 inch NF, Grade 8

1шт.

13

NSS

NOT SOLD SEPARAT

WIRE - retaining

1шт.

14

9410356

PLUG

- hex, 1/4 inch straight thread

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - 1/4 inch, OD tube, Class 6

1шт.

17

28196R1

SPLIT PIN/SAFETY PIN

PIN - clevis, 5/8 x 2-1/4 inch

2шт.

18

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

1272677C94

SEAL KIT

SEALING KIT - cylinder (Includes: Ref. 4, 5, 7, 8, 10, 11, 13 and 15)

1шт.
