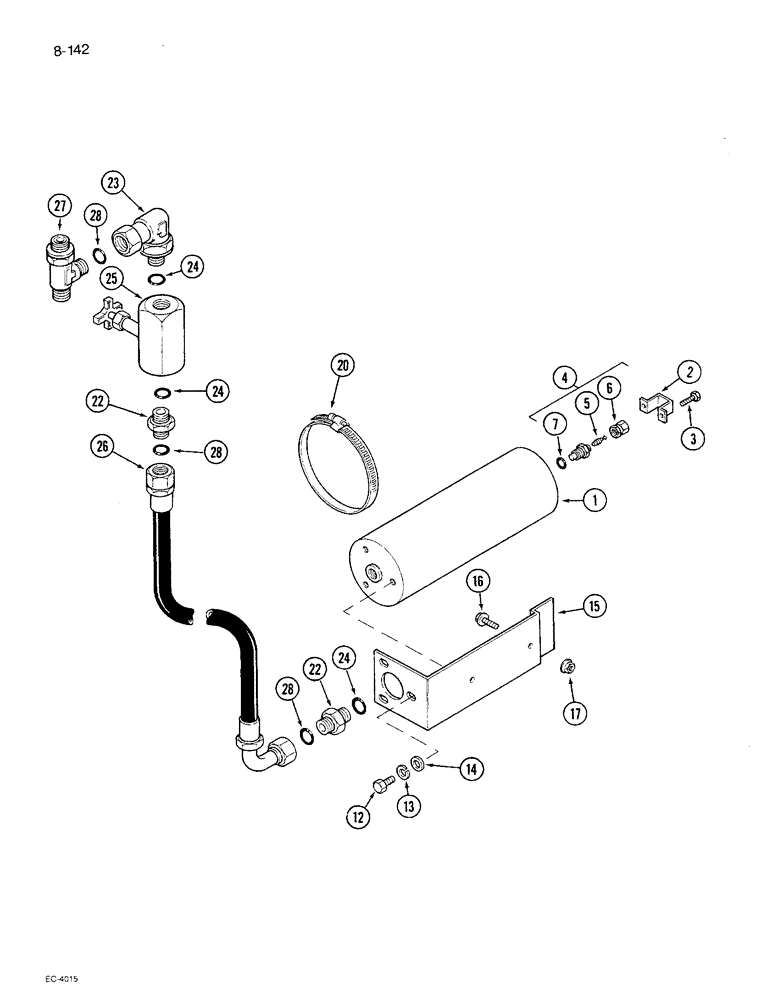

Запчасти Case IH 1680 (8-142) - ACCUMULATOR ATTACHMENT, P.I.N. JJC0117060 AND AFTER (07) - HYDRAULICS

1

1978111C1

TANK

ASSEMBLY - accumulator, Includes: Ref. 2 - 7 and Seal Kit

1шт.

2

1341920C1

PROTECTOR

GUARD - valve, gas

1шт.

3

276-14912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

SCREW - self-tapping hex, 3/8 NC x 3/4 inch

2шт.

4

1978142C1

VALVE

ASSEMBLY - accumulator charging, Includes: Ref. 5 - 7

1шт.

5

1978143C1

PISTON

CORE - valve

1шт.

6

1978144C1

CAP

- valve

1шт.

7

1978158C1

O-RING

- valve sealing

1шт.

1341919C1

SEAL KIT

KIT - valve seal

1шт.

12

414-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

- hex, 1/2 NF x 3/4 inch

3шт.

13

92-11050

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

14

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

- flat, 17/32 x 1-1/4 x 5/32 inch

3шт.

15

1979278C2

SUPPORT

- accumulator

1шт.

16

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

2шт.

17

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

20

182088H1

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

CLAMP - hose, No. 80, Type F

1шт.

22

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., 13/16"-16 ORFS x 3/4"-16 ORB

2шт.

23

201-349

90 ELBOW,90 Degree Elbow, 13/16" - 16 Female ORFS x 3/4" - 16 Male ORB

- 90 deg, 13/16-16 swiv face x 3/4-16 inch adj O-ring

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

25

183510C1

VALVE

ASSEMBLY - needle

1шт.

26

1989665C1

HOSE

ASSEMBLY - accumulator

1шт.

27

201-412

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

- 13/16-16 face branch x face x 3/4-16 inch adj O-ring

1шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.
