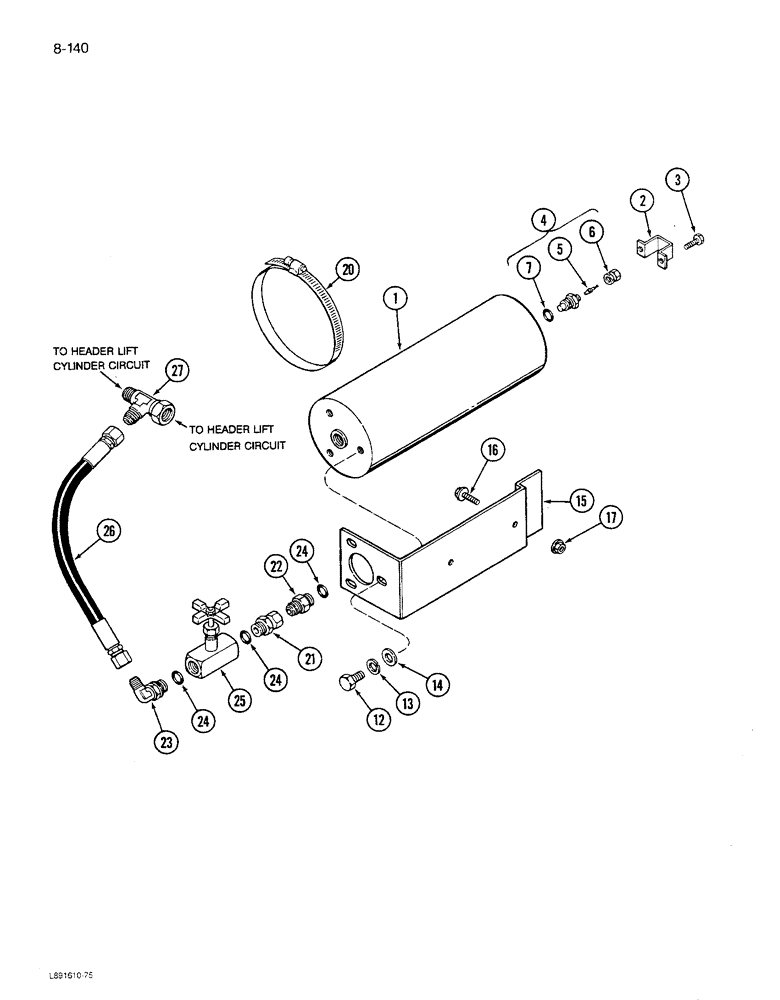

Запчасти Case IH 1680 (8-140) - ACCUMULATOR ATTACHMENT, PRIOR TO P.I.N. JJC0117060 (07) - HYDRAULICS

1

1978111C1

TANK

ASSEMBLY - accumulator, Includes: Ref. 2 -7 and Seal Kit

1шт.

2

1341920C1

PROTECTOR

GUARD - valve, gas

1шт.

3

276-14912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

SCREW - hex head tap, 3/8 NC x 3/4 inch

2шт.

4

1978142C1

VALVE

ASSEMBLY - charge, accumulator, Includes: Ref. 5 - 7

1шт.

5

1978143C1

PISTON

CORE - valve

1шт.

6

1978144C1

CAP

- valve

1шт.

7

1978158C1

O-RING

- valve sealing

1шт.

1341919C1

SEAL KIT

SEAL KIT - valve

1шт.

12

414-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

- hex, 1/2 NF x 3/4 inch

3шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

14

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

- flat, 17/32 x 1-1/4 x 5/32 inch

3шт.

15

1979278C1

SUPPORT ASSY.

SUPPORT - accumulator

1шт.

16

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

2шт.

17

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

20

538122R1

HOSE CLAMP,#80, 4.62/5.50 Type F Worm, W/liner

CLAMP ASSEMBLY - accumulator

1шт.

21

1327736C1

ELBOW

CONNECTOR - swivel adapter, 3/4-16 inch thread

1шт.

22

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch thread

1шт.

23

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 3/4-16 inch thread

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

25

183510C1

VALVE

ASSEMBLY - needle

1шт.

26

390649R92

HYDRAULIC HOSE

HOSE ASSEMBLY - accumulator, 19 inch

1шт.

27

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- adjustable, 3/4-16 inch thread

1шт.
