(8-132) - SEPARATOR CLUTCH SYSTEM

Запчасти Case IH 1680 (8-132) - SEPARATOR CLUTCH SYSTEM (07) - HYDRAULICS

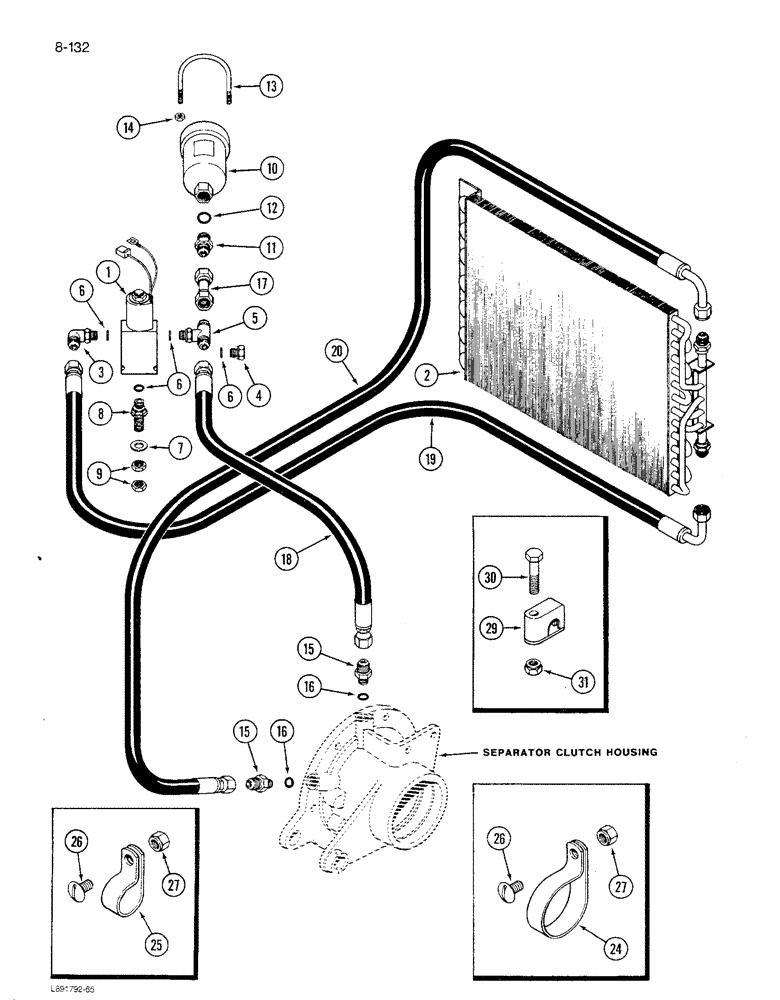

Схема запчастей Case IH 1680 - (8-132) - SEPARATOR CLUTCH SYSTEM (07) - HYDRAULICS
11
5
16
12
26
26
18
27
10
17
15
9
13
16
24
20
1
2
3
25
6
30
6
4
31
8
19
7
27
29
14
6
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch (See Figure 8-136)

1шт.

2

183747C1

OIL COOLER

COOLER ASSEMBLY - oil, separator clutch

1шт.

3

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree adjustable, 3/4 x 9/16 inch thread

1шт.

4

76349

PLUG,9/16" - 18 ORB

1шт.

5

183774C1

TEE

- separator clutch

1шт.

7

156276C1

WASHER

- rubber, 1/2 x 1 x 1/16 inch

1шт.

8

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

1шт.

9

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex lock, 9/16-18 inch NC

2шт.

10

1346058C1

ACCUMULATOR

- separator clutch

1шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - short swivel, 3/4-16 inch thread

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

186505C1

BOLT,U, 1/4" - 20 x 3.2"

U-BOLT - absorber mounting

1шт.

14

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

15

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - short, 3/4-16 x 9/16-18 inch thread

2шт.

17

183775C1

HYD TUBE

TUBE ASSEMBLY - separator clutch accumulator

1шт.

18

183773C1

HOSE

ASSEMBLY - valve to gear case, 18 inch

1шт.

19

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

HOSE ASSEMBLY - cooler to valve, 50 inch

1шт.

20

183748C2

HOSE,12.7mm ID x 1460.5mm L, SAE 100R1

ASSEMBLY - gear case to oil cooler, 57-1/2 inch

1шт.

24

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

- closed, 1-7/8 inch diameter

1шт.

25

R14668

CLAMP

- closed, 1 inch diameter

1шт.

26

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head lock, 5/16 NC x 1/2 inch

2шт.

27

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

29

196447C1

CLAMP

- clutch oil cooler tubing

2шт.

31

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

4шт.

30

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Seal

7шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Seal

2шт.
