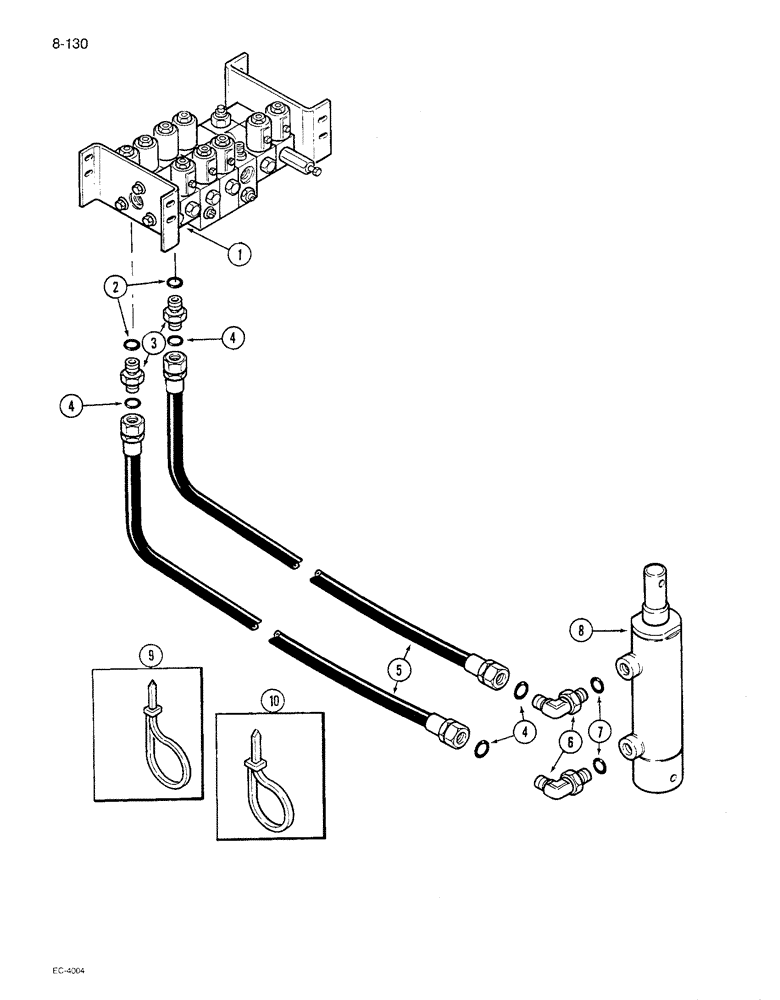

Запчасти Case IH 1680 (8-130) - FEEDER CLUTCH SYSTEM, P.I.N. JJC0117060 AND AFTER (07) - HYDRAULICS

1

1542681C1

VALVE

ASSEMBLY - feeder clutch

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

2шт.

3

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR - 3/8 x 1/2 inch

2шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

5

1541776C2

HOSE

ASSEMBLY -

2шт.

6

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90 degree, 3/8 inch, adjustable

2шт.

8

133405C92

CYLINDER

ASSEMBLY - hydraulic (See Figure 8-138)

1шт.

8

87337239R

REMAN-HYD CYLINDER

1680 CASE IH AXIAL-FLOW COMBINE (S/N JJC0045689 & AFTER) (NORTH AMERICA), P.I.N. JJC0045689 AND AFTER, Assembly hydraulic (1/86-12/92), Reman for New PN 133405C92

1шт.

8

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

9

470375C1

CLAMP,1", Insul, 3/8" Bolt

STRAP - tie

1шт.

10

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch

4шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 inch OD tube

2шт.
