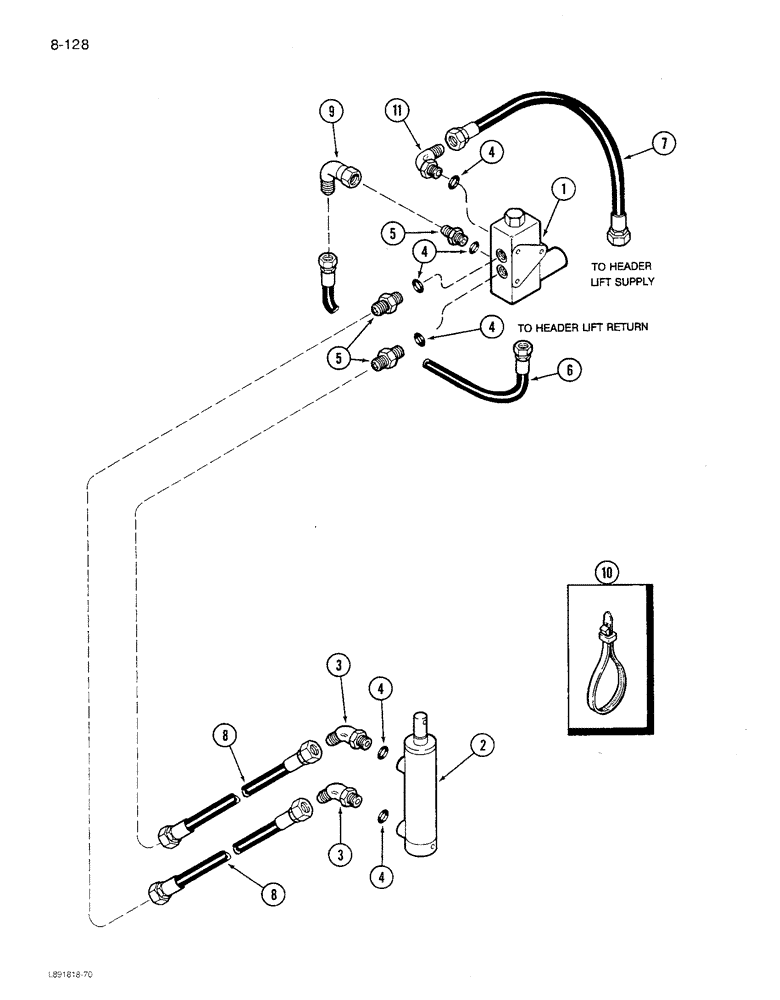

Запчасти Case IH 1680 (8-128) - FEEDER CLUTCH SYSTEM, CONCEPTS CONTROL, PRIOR TO P.I.N. JJC0117060 (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - feeder clutch (See Figure 8-134)

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - feeder clutch (See Figure 8-138)

1шт.

3

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 45 degree adjustable, 9/16-18 inch thread

2шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - short, 9/16-18 inch thread

3шт.

6

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

Assy - Feeder clutch 9.52 mm ID x 535.00 mm

1шт.

7

632455R91

HOSE

ASSEMBLY - feeder clutch pressure, 14 inch

1шт.

8

1264170C1

HYDRAULIC HOSE,6.40 mm ID x 3175.00 mm, SAE 100R1

HOSE ASSEMBLY - feeder clutch, 125 inch

2шт.

9

9410228

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, Pipe

ELBOW - 90 degree swivel, 9/16-18 inch thread

1шт.

10

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

4шт.

11

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree adjustable, 9/16-18 inch thread

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Seal

6шт.
