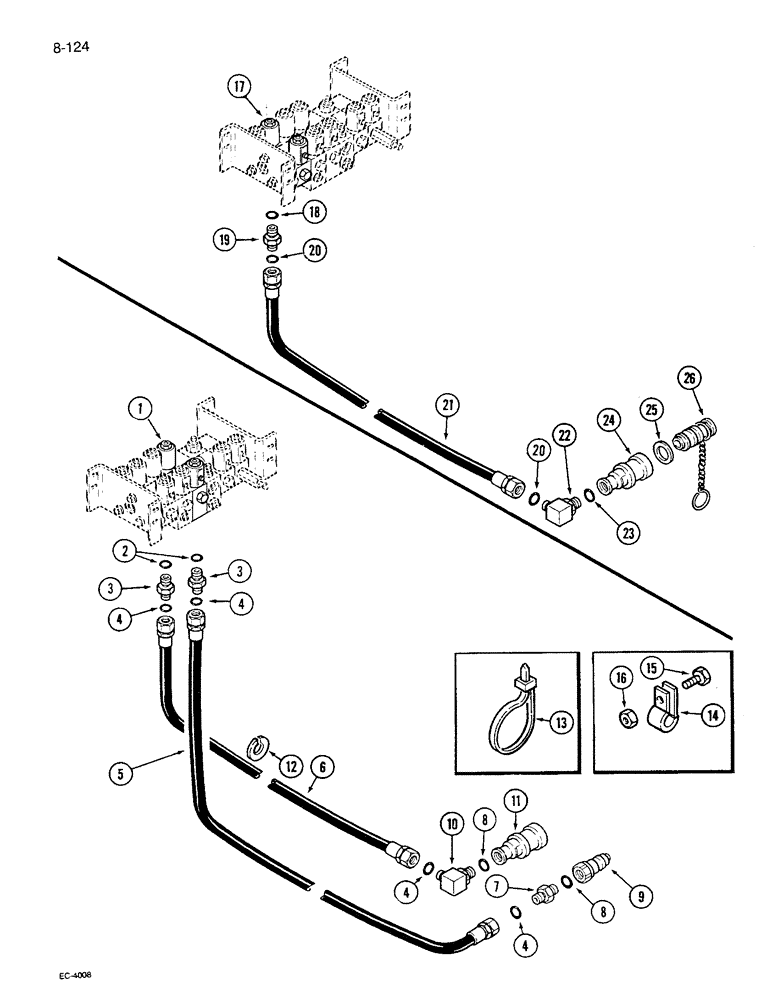

Запчасти Case IH 1680 (8-124) - REEL FORE AND AFT, P.I.N. JJC0117060 & AFTER (07) - HYDRAULICS

1

1986776C1

VALVE

ASSEMBLY - control, Reel Fore & Aft (See Figure 8-78)

1шт.

1

1267035C93

VALVE

- section (See Figure 8-84)

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR - 3/8 x 1/2 inch

2шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

5

1989471C1

HOSE

ASSEMBLY - reel aft, 3810 mm

1шт.

6

1989470C1

HOSE

- reel fore, 2895 mm

1шт.

7

201-139

HYD CONNECTOR,11/16"-16 ORFS x 7/8"-14 ORB

CONNECTOR - 3/8 x 5/8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch

1шт.

9

1272399C1

UNION

COUPLER - quick acting, male

1шт.

10

201-362

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB

- 90 degree adjustable

1шт.

11

1282338C91

COUPLING, QUICK, FEM

COUPLING - quick acting, female

1шт.

12

1541792C1

WASHER

WASHER - red

1шт.

13

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch

1шт.

14

49838

CLAMP

- harness, closed, 12.7 mm ID

1шт.

15

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

1шт.

16

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

1986776C1

VALVE

ASSEMBLY - control, Reel Lift System (See Figure 8-78)

1шт.

17

1301652C1

VALVE ASSEMBLY - reel lift (See Figure 8-82), reel lift system pin JJC00117060 and after

1шт.

18

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Reel lift system pin JJC00117060 and after

1шт.

19

201-125

HYD CONNECTOR,11/16"-16 ORFS x 7/16"-20 ORB

CONNECTOR - REEL LIFT, reel lift system pin JJC00117060 and after

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Reel lift system pin JJC00117060 and after -012, 90 Duro, .364" ID x .070" Thk

1шт.

21

1989470C1

HOSE

- reel lift, 1/4 x 110 inch long, reel lift system pin JJC00117060 and after

1шт.

22

201-362

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB

- 90 degree adjustable 3/8 x 5/8 inch, reel lift system pin JJC00117060 and after

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, reel lift system pin JJC00117060 and after

1шт.

24

1282338C91

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - self sealing female, 7/8-14 thread, reel lift system pin JJC00117060 and after

1шт.

25

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

- dust plug, reel lift system pin JJC00117060 and after

1шт.

26

1954133C1

PLUG

PLUG ASSEMBLY - coupling, reel lift system pin JJC00117060 and after

1шт.
