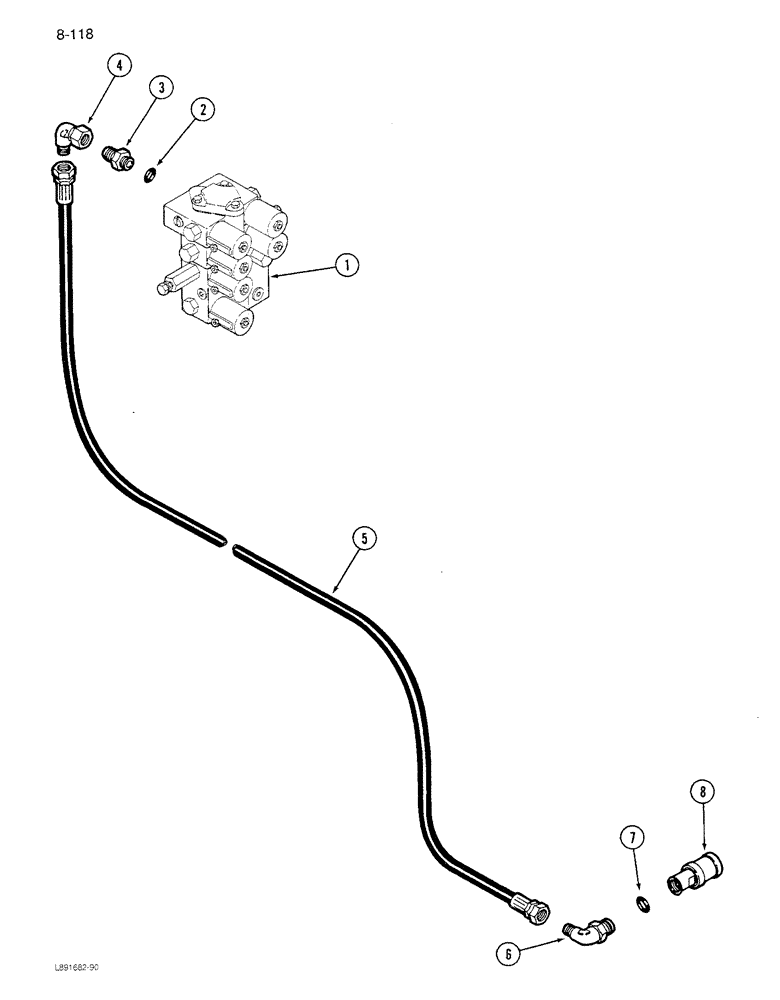

Запчасти Case IH 1680 (8-118) - REEL LIFT SYSTEM, PRIOR TO P.I.N.JJC0117060 (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-72)

1шт.

2

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

3

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - short, 9/16-18 x 7/16-20 inch thread

1шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel, 9/16-18 inch thread

1шт.

5

1321591C1

HOSE

ASSEMBLY - reel lift, 3/8 x 94 inch

1шт.

Used on combines prior to P.I.N. JJC0047301.

1шт.

5

1284291C1

HYDRAULIC HOSE

ASSEMBLY - reel lift, 1/4 x 95 inch

1шт.

Used on combines P.I.N. JJC0047301 and After.

1шт.

6

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree adjustable, 7/8-14 x 9/16-18 inch thread

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

REF

INSTRUCTION

COUPLING ASSEMBLY - self-sealing female (See Figure 8-68)

1шт.
