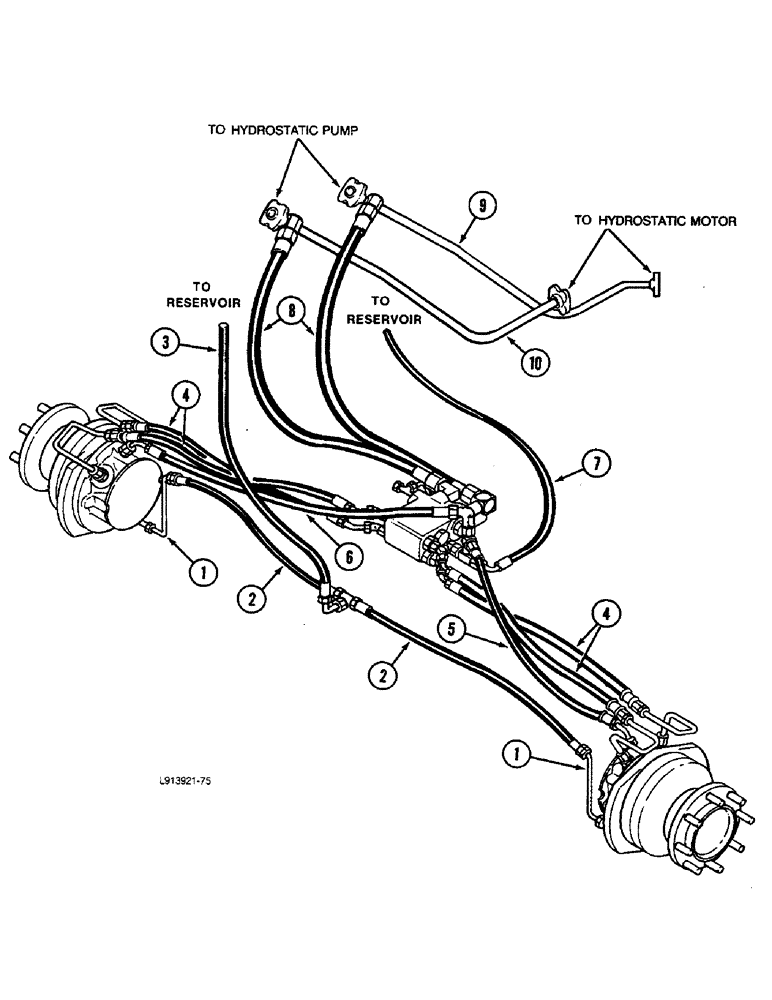

Запчасти Case IH 1680 (1-024) - PICTORIAL INDEX, POWER GUIDE AXLE SYSTEM (00) - PICTORIAL INDEX
6
4
2
3
8
9
4
2
1
5
7
1
10
№
Артикул
Название
Примечание
Количество
1
Motor flush tube assembly, Figure 5-34
1шт.
2
Motor flush hose assembly, Figure 5-34
1шт.
3
Case drain hose assembly, Figure 5-34
1шт.
4
Pressure motor drain hose assembly, Figure 5-32
1шт.
5
Motor drain hose assembly, 73 inch, Figure 5-32
1шт.
6
Pressure motor drain hose assembly, 79 inch, Figure 5-32
1шт.
7
Case drain hose assembly, Figure 5-40
1шт.
8
Valve pressure tube assembly, Figure 5-40
1шт.
9
Forward pressure tube assembly, Figure 5-40
1шт.
10
Reverse pressure tube assembly, Figure 5-40
1шт.
Выбрано товаров: 10
