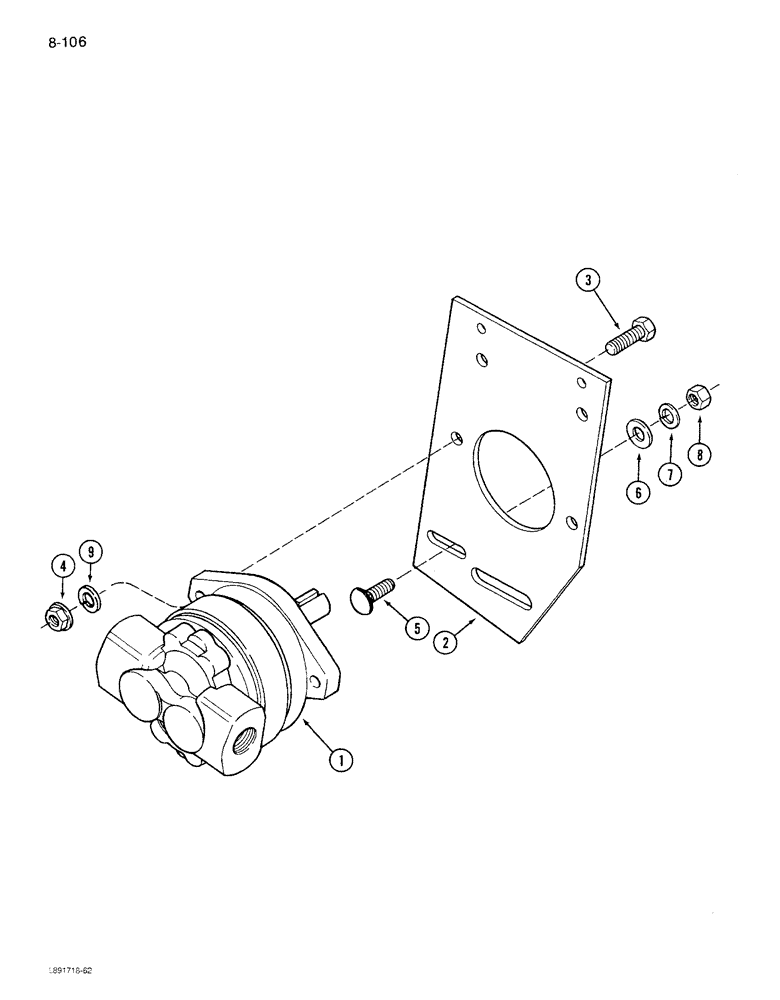

Запчасти Case IH 1680 (8-106) - HYDRAULIC REEL DRIVE PUMP AND MOUNTING, PRIOR TO P.I.N. JJC0117060 (07) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - reel drive (See Figure 8-108 or 8-110)

1шт.

2

1315486C1

PLATE

- pump mounting

1шт.

Used on combines prior to P.I.N. JJC0046598.

1шт.

2

1979555C1

SUPPORT

PLATE - pump mounting

1шт.

Used on combines P.I.N. JJC0046598 through JJC0117059

1шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

Used on combines prior to P.I.N. JJC0046598.

1шт.

3

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

2шт.

Used on combines P.I.N. JJC0046598 through JJC0117059

1шт.

4

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

Used on combines prior to P.I.N. JJC0046598.

1шт.

4

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

2шт.

Used on combines P.I.N. JJC0046598 through JJC0117059

1шт.

5

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

3шт.

6

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

1шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

9

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

Used on combines P.I.N. JJC0046598 through JJC0117059

1шт.
