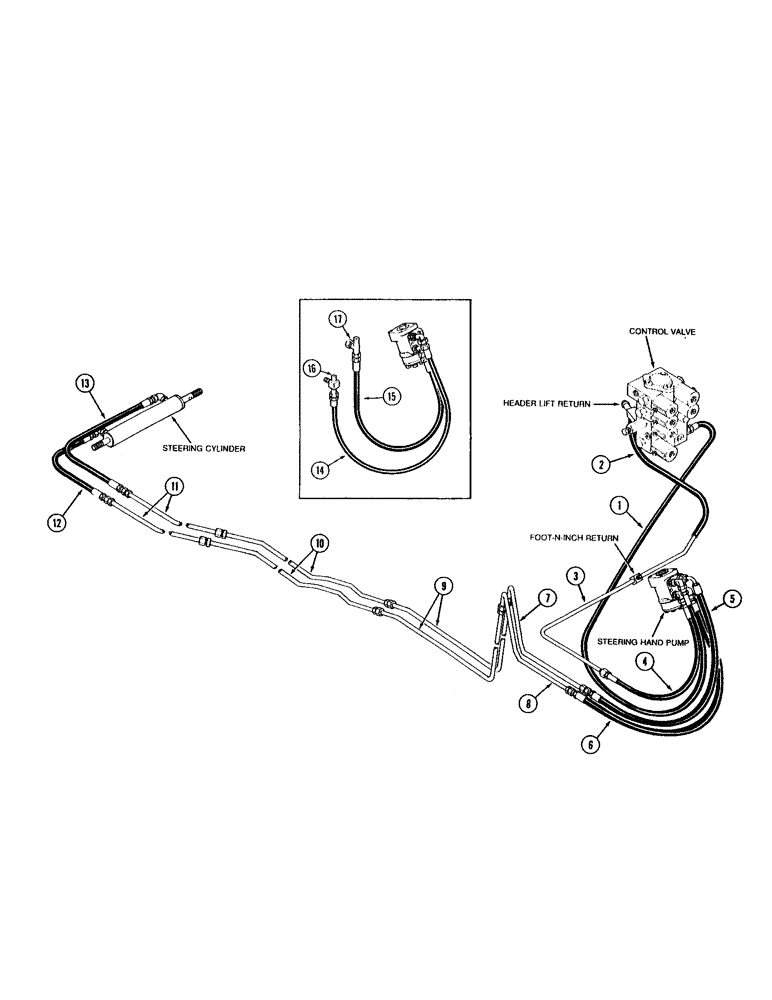

Запчасти Case IH 1680 (1-022) - PICTORIAL INDEX, STEERING SYSTEM (00) - PICTORIAL INDEX

1

Steering Pressure Hose, Figure 5-6

1шт.

2

Steering Return Hose, Figure 5-6

1шт.

3

Steering Return Tube, Figure 5-6

1шт.

4

Steering Hand Pump Return Hose, Figure 5-6

1шт.

5

Steering Hand Pump, Left Hose, Figure 5-8

1шт.

6

Steering Hand Pump, Right Hose, Figure 5-8

1шт.

7

Steering, Forward, Upper Inside Tube, Figure 5-8

1шт.

8

Steering, Forward, Upper Inside Tube, Figure 5-8

1шт.

9

Steering, Intermediate, Forward Tube, Figure 5-8

1шт.

10

Steering, Intermediate, Rear Tube, Figure 5-8

1шт.

11

Steering, Rear Tube, Figure 5-8

1шт.

12

Cylinder, Lower Hose, Figures 5-10, 5-36

1шт.

13

Cylinder, Upper Hose, Figures 5-10, 5-36

1шт.

14

Steering Return Hose, Figure 5-8

1шт.

15

Steering Supply Hose, Figure 5-8

1шт.

16

Tee Foot-N-Inch, Figure 6-22

1шт.

17

Tee Steering Diagnostic, Figure 8-148

1шт.
