Запчасти Case IH 1680 (8-094) - HYDRAULIC REEL DRIVE SYSTEM, PRIOR TO P.I.N. JJC0047301 (07) - HYDRAULICS

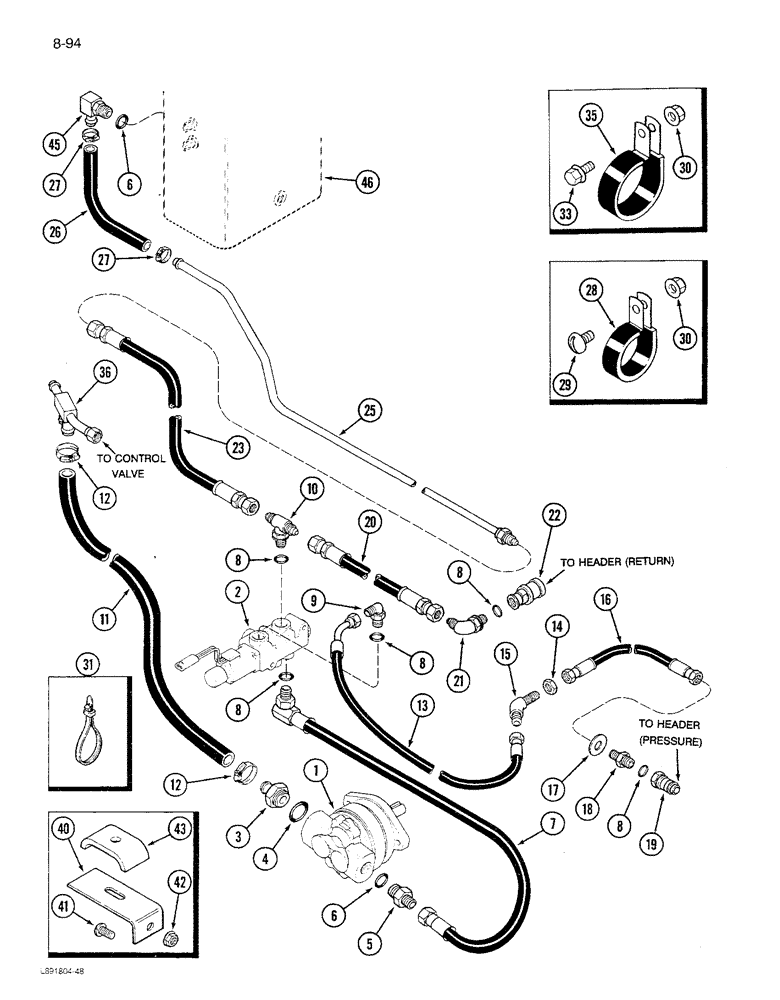

Схема запчастей Case IH 1680 - (8-094) - HYDRAULIC REEL DRIVE SYSTEM, PRIOR TO P.I.N. JJC0047301 (07) - HYDRAULICS
19
30
35
14
42
22
29
23
43
6
21
46
40
5
7
26
25
11
1
18
8
2
10
17
36
8
4
27
13
3
9
8
41
12
45
16
31
20
12
30
6
27
8
15
33
8
28

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSEMBLY - reel drive (See Figures 8-114 or 116)

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - reel drive (See Figure 8-112)

1шт.

3

1282383C1

FITTING,1-5/8" - 12 ORB x

- beaded tube, 1 inch ID hose

1шт.

4

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-1/4 inch OD tube

1шт.

5

573206R1

HYD CONNECTOR,7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - short, 7/8-14 x 1-1/16-12 inch thread

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

7

1315460C1

HOSE,12.7mm ID x 900mm L, SAE 100R7

- pump pressure, 35 inch

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

5шт.

9

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 3/4-16 x 7/8-14 inch thread

1шт.

10

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

- adjustable, 7/8-14 inch thread

1шт.

11

1322376C1

LARGE HOSE,25.4mm ID x 2500mm L

HOSE - reel drive suction 98 inch

1шт.

12

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP - hose, No. 24, Type F

2шт.

13

1327609C1

HOSE

- reel drive pressure, 20 inch

1шт.

14

9403294

NUT

- bulkhead union lock, 3/4-16 inch thread

1шт.

15

1321284C1

FITTING

UNION - 45 degree bulkhead, 3/4-16 inch thread

1шт.

16

1327580C1

HOSE

- reel drive header pressure, 40 inch

1шт.

17

1327632C1

WASHER

- white

1шт.

18

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- short 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

19

REF

INSTRUCTION

COUPLING ASSEMBLY - self sealing male (See Figure 8-68)

1шт.

20

1327579C1

HOSE

ASSEMBLY - return, 12 inch (54-1/2 inch Feeder)

1шт.

20

1327610C1

HOSE

ASSEMBLY - return, 18.5 inch (60 inch Feeder)

1шт.

21

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 7/8-14 inch thread

1шт.

22

REF

INSTRUCTION

COUPLING ASSEMBLY - self sealing female (See Figure 8-68)

1шт.

23

1327576C1

HOSE

- return, 82 inch

1шт.

25

1322451C1

HYD TUBE

TUBE - reel drive return

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE - return, 610 mm (Order S118576X and, Serial Range: cut-length)

1шт.

27

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12, Type F

2шт.

28

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- medium closed, 3/4 inch diameter

1шт.

29

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

3шт.

30

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

12шт.

31

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon 14 in

1шт.

33

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

6шт.

35

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

- closed, 1-7/8 inch diameter

3шт.

36

REF

INSTRUCTION

TUBE - return manifold (See Figure 8-44)

1шт.

40

187833C1

SUPPORT

- suction return tubes

2шт.

41

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

42

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

43

165601C1

CLAMP

- hose

4шт.

45

217-363

FITTING,90 Degree Elbow, 5/8" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90°, 5/8" Hose x 1 1/16"-12 ORB Beaded, Barb end

1шт.

46

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil (See Figures 8-2 or 8-4)

1шт.

Выбрано товаров: 40
