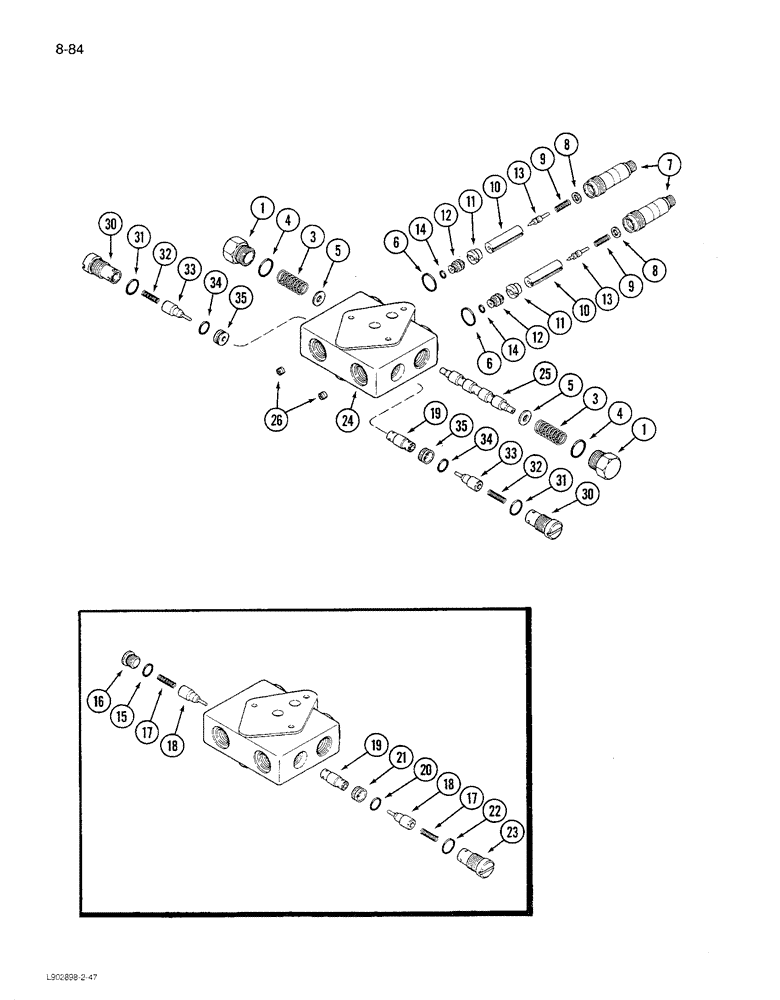

Запчасти Case IH 1680 (8-084) - DOUBLE PILOTED VALVE ASSEMBLY, FOR UNLOADER AUGER SWING & REEL FORE/AFT (07) - HYDRAULICS

1267035C93

VALVE

ASSEMBLY - double piloted, Includes: Ref. 1 - 35

1шт.

1

1301686C1

CAP

PLUG - end

2шт.

3

1301689C1

SPRING

- spool

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

5

1301687C1

WASHER

- spring

2шт.

6

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

2шт.

7

1301627C2

SLEEVE

ASSEMBLY - poppet

2шт.

8

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

9

1301640C1

SPRING

- poppet

2шт.

10

1301648C1

ARMATURE

- valve

2шт.

11

1301624C1

BUSHING

- pole

2шт.

12

1301625C1

ORIFICE

- valve

2шт.

13

1301647C1

POPPET

- valve

2шт.

14

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

16

1301670C1

PLUG

- valve (If equipped)

1шт.

17

1272887C1

SPRING

- poppet (If equipped)

2шт.

18

1267160C2

VALVE

POPPET - spool (If equipped)

2шт.

19

1267162C1

VALVE

SPOOL - shuttle

1шт.

20

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- 1/2 x 5/8 inch, Class 6 (If equipped)

1шт.

21

1267163C1

WASHER

WASHER - seat (If equipped)

1шт.

22

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- 5/8 x 13/16 inch, Class 6 (If equipped)

1шт.

23

1267164C1

FITTING

GUIDE - retainer (If equipped)

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - valve (Order 1267035C93)

1шт.

25

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order 1267035C93)

1шт.

26

1301637C1

ORIFICE

- poppet

2шт.

1986831C1

CHECK VALVE

VALVE ASSEMBLY - cross check, Includes: Ref. 30 - 35

2шт.

30

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

31

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

32

NSS

NOT SOLD SEPARAT

SPRING - spool

1шт.

33

NSS

NOT SOLD SEPARAT

POPPET - spool

1шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

35

NSS

NOT SOLD SEPARAT

SEAT - valve

1шт.

1282278C2

SEAL KIT

- valve (Includes: Ref. 4, 6, 14, 15, 20 and 22)

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Seal, if equipped

1шт.
