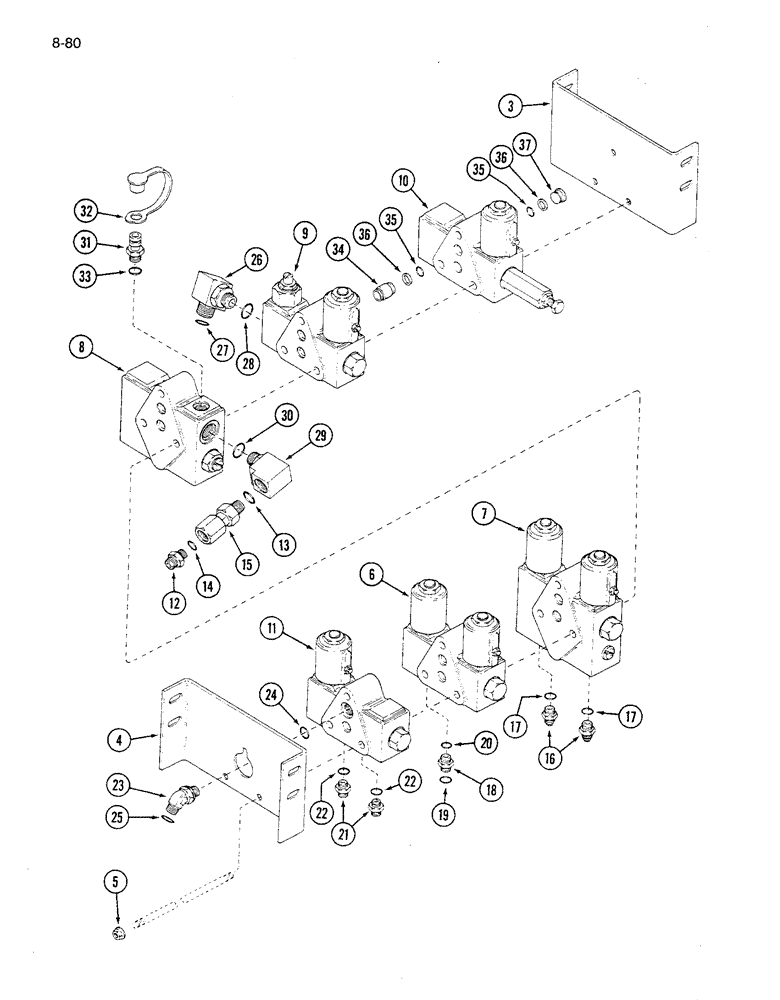

Запчасти Case IH 1680 (8-080) - CONTROL VALVE AND MOUNTING, W/O BEFORE & AFTER ATTACHMENT, P.I.N. JJC0117060 & AFTER (07) - HYDRAULICS

1986775C1

VALVE ASSEMBLY - control, Includes: Ref. 3 - 11 (Order components)

1шт.

3

1541613C1

SUPPORT

- valve stack, front

1шт.

4

1989370C2

SUPPORT

- valve stack, end

2шт.

5

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

6

1301652C91

VALVE

ASSEMBLY - reel lift (See Figure 8-82)

1шт.

7

1267035C93

VALVE

ASSEMBLY - unloader swing (See Figure 8-84)

1шт.

8

1542678C1

VALVE

ASSEMBLY - flow divider (See Figure 8-86)

1шт.

9

1542679C1

VALVE

ASSEMBLY - header lift (See Figure 8-88)

1шт.

10

1542680C1

VALVE

ASSEMBLY - header lower (See Figure 8-90)

1шт.

11

1542681C1

VALVE

ASSEMBLY - feeder clutch (See Figure 8-92)

1шт.

12

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Includes Ref. 13 and 14 1 3/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

1272346C1

FILTER

ASSEMBLY - valve pressure line

1шт.

16

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 7/16-20 flare x 3/4-16 inch O-ring boss, Includes: Ref. 17

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

201-125

HYD CONNECTOR,11/16"-16 ORFS x 7/16"-20 ORB

ADAPTOR - straight, 11/16-16 face seal x 7/16-20 inch O-ring, Includes: Ref. 18 and 19

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

21

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 11/16-16 face seal x 3/4-16 inch O-ring, Includes: Ref. 22

2шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 45 degree, 13/16-16 face x 9/16-18 inch adj O-ring, Includes: Ref. 24 and 25

1шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

201-350

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

- 90 degree, 1-3/16-12 face seal x 7/8-14 inch O-ring, Includes: Ref. 27 and 28

1шт.

27

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

1989475C3

TEE

ELBOW - 5/8 O-ring boss adj, x 3/4 x 3/8 inch, Includes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

31

1541849C1

COUPLING

COUPLER - diagnostic, Includes: Ref. 32 and 33

1шт.

32

H434163

DUST CAP

CAP - coupler, dust

1шт.

34

1301630C2

TUBE,.344" ID, .5" OD, 15" Length

- through, Includes: Ref. 35 and 36

9шт.

35

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

36

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

- backup

2шт.

37

1301634C2

PLUG

- cap

4шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

33

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
